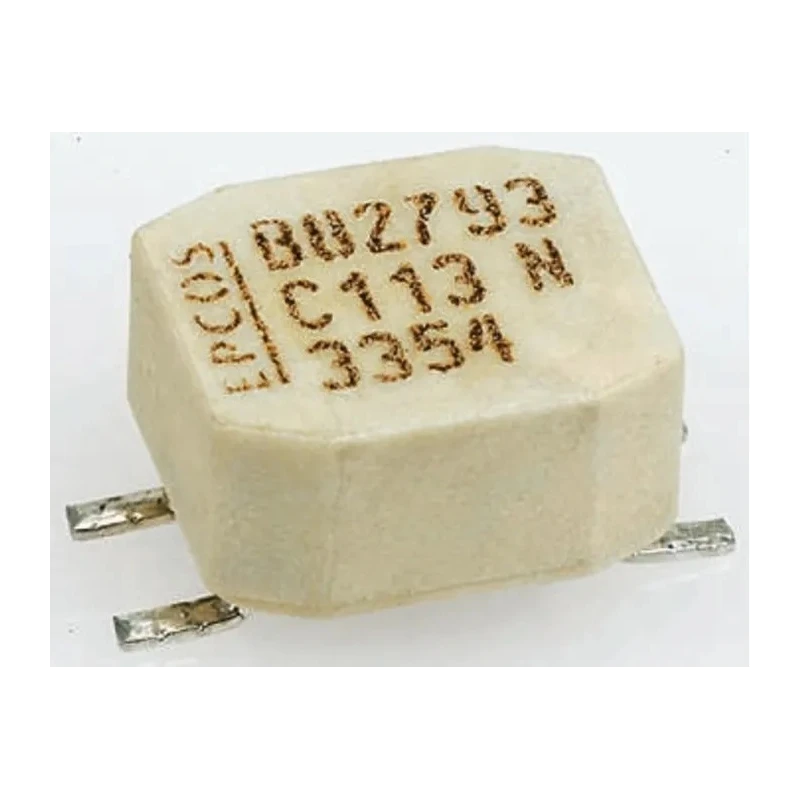

TDK Unshielded Surface Mount Common Mode Choke with Ferrite Core 11 μH ±30% 800 mA Idc B82793C0113N201

Free Delivery in India | Lowest Global Shipping Charges

TDK Unshielded Surface Mount Common Mode Choke with Ferrite Core 11 μH ±30% 800 mA Idc B82793C0113N201



Category Surface Mount Inductors Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	4.8mm
Length	9mm
Model	B82793C0113N201
Depth	6mm
Packaging	Tape & Reel
Series	B82793
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	11μH
Standards/Approvals	RoHS
Maximum DC Current	800mA
Pin Count	2
Maximum DC Resistance	80mΩ
Inductance Tolerance	±30 %
Termination Style	Solder
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200

Key Features

The component is designed with a 2-pin solder termination style for surface mounting.
It has a wirewound inductor construction with a ferrite core ensuring reliable inductance and performance.
Operating temperature ranges from -40°C to 125°C making it suitable for various industrial conditions.
Includes a flame retardant moulded case compliant with UL 94 V-0 standards for safety and durability.
Comes packaged in tape and reel format for efficient automated PCB assembly.
The choke meets the AEC-Q200 automotive standard and RoHS compliance requirements.
Low DC resistance of 80 mΩ contributes to minimal power loss and heat generation.
Compact dimensions of 9 mm length, 4.8 mm height, and 6 mm depth optimize PCB space usage.

Product Description

TDK B82793C0113N201 is an unshielded surface mount common mode choke designed for industrial and automotive applications requiring electromagnetic interference suppression and noise reduction. It features a ferrite core with a wirewound construction that provides a reliable inductance value of 11 μH with a tolerance of ±30%. The component supports a maximum DC current of 800 mA and operates effectively between temperatures of -40°C and 125°C.

The choke is housed in a moulded flame retardant case conforming to UL 94 V-0, enhancing its safety profiles under thermal stress. It is designed with a 2-pin solder termination style, suitable for surface mount technology (SMT) assembly processes, and is supplied on tape & reel packaging suited for automated PCB assembly lines.

It complies with the automotive standard AEC-Q200 and RoHS environmental regulations, underscoring its high-quality manufacturing and suitability for automotive-grade circuits. Its small physical footprint - 9 mm length, 4.8 mm height, and 6 mm depth - allows designers to implement it in space-constrained devices effectively.

This component is ideal for separating asymmetric interference in electronic circuits, improving electromagnetic compatibility (EMC), and helping manufacturers meet industry standards and reduce electromagnetic noise in industrial, automotive, communications, and consumer electronics applications.

The component is designed with a 2-pin solder termination style for surface mounting. It has a wirewound inductor construction with a ferrite core ensuring reliable inductance and performance. Operating temperature ranges from -40°C to 125°C making it suitable for various industrial conditions.

Includes a flame retardant moulded case compliant with UL 94 V-0 standards for safety and durability. Comes packaged in tape and reel format for efficient automated PCB assembly. The choke meets the AEC-Q200 automotive standard and RoHS compliance requirements.

Low DC resistance of 80 mΩ contributes to minimal power loss and heat generation. Compact dimensions of 9 mm length, 4.8 mm height, and 6 mm depth optimize PCB space usage. Explore more TDK Surface Mount Inductors and related electronic components on EnvMart for your industrial and automotive electronic component needs.
