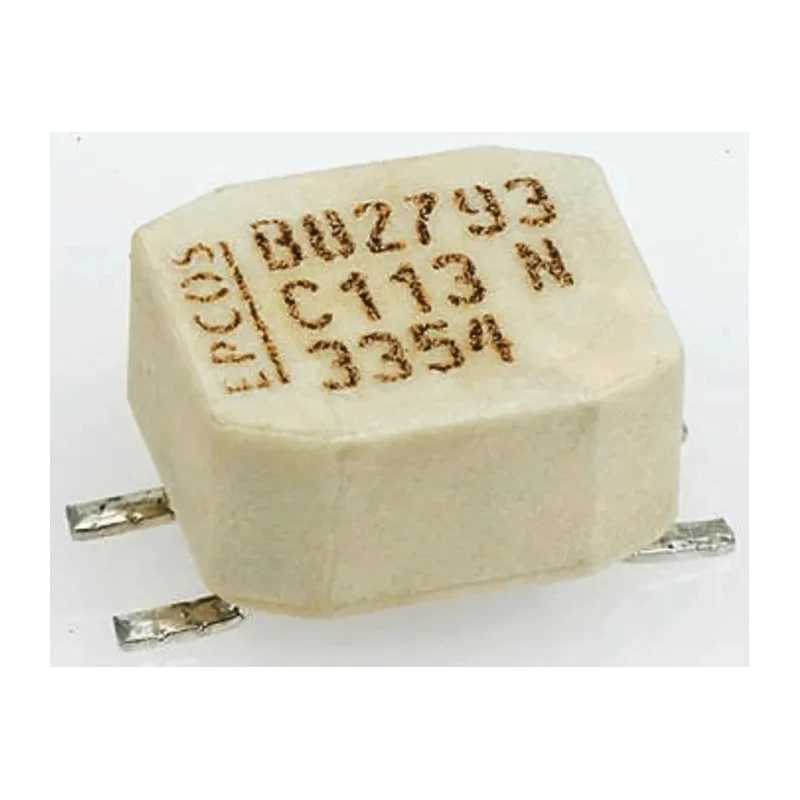

TDK Unshielded Surface Mount Common Mode Choke with Ferrite Core 11 μH ±30 % 800 mA Idc B82793C0113N201
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 4.8mm |
| Length | 9mm |
| Model | B82793C0113N201 |
| Depth | 6mm |
| Packaging | Tape & Reel |
| Series | B82793 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 11μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 800mA |
| Pin Count | 2 |
| Maximum DC Resistance | 80mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Solder |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Low-profile design with a height of 4.8 mm fitting compact electronic circuits.
- Constructed with a wirewound inductor and solder termination style for reliable connectivity.
- Operates effectively within a temperature range of -40°C to 125°C, conforming to AEC-Q200 automotive standards.
- Includes a ferrite core for efficient EMI noise suppression and stable performance.
- Provides a maximum DC resistance of 80 mΩ ensuring minimal power loss during operation.
- Packaging available in tape & reel format suitable for automated assembly processes.
- Complies with RoHS standards, assuring environmental compliance and safety.
- Designed for industrial applications requiring suppression of asymmetric interference.
Product Description
TDK B82793C0113N201 surface mount common mode choke with an unshielded ferrite core is engineered for industrial and automotive electronic components requiring reliable high-frequency noise suppression. It features an 11 μH inductance with a tolerance of ±30 % and supports a maximum DC current of 800 mA. The choke is wirewound and molded inside a flame-retardant case meeting UL 94 V-0 standards.
The compact device measures 9 mm in length, 6 mm in depth, and 4.8 mm in height, packaged in tape and reel format for efficient manufacturing integration. It conforms to the AEC-Q200 automotive standard, able to operate across a temperature span from -40°C to 125°C, making it durable for harsh environments.
With a maximum DC resistance of 80 mΩ, it ensures low power loss and high performance in suppressing electromagnetic interference, specifically designed to mitigate asymmetric interference using bifilar winding technology as part of the B82793C series. RoHS compliance confirms its safe manufacturing processes.
Low-profile height for compact PCB layouts. Wirewound construction enhances inductance stability. AEC-Q200 certification for automotive reliability. Flame-retardant UL 94 V-0 casing. Packaging suitable for automated pick-and-place machines.
Effective noise suppression for industrial applications. Temperature tolerance ideal for various environments. Compliant with RoHS environmental directives. Suitable for high-frequency EMC challenges.
This surface mount inductor is ideal for electronic design engineers working on automotive, industrial, and commercial electronic assemblies that demand robust interference reduction and compact mounting solutions. Explore more Surface Mount Inductors and related TDK components through EnvMart for enhanced electronic manufacturing productivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this common mode choke is 11 μH with a tolerance of ±30 %.
This model supports a maximum DC current of 800 mA.
The dimensions of this choke are 9 mm in length, 6 mm in depth, and 4.8 mm in height.
It operates effectively within a temperature range of -40°C to 125°C.
It features a wirewound construction, which enhances inductance stability.
It is packaged in tape and reel format, suitable for automated assembly processes.
This choke complies with RoHS standards and conforms to AEC-Q200 automotive standards.
The maximum DC resistance is 80 mΩ, ensuring minimal power loss during operation.
It uses a ferrite core for efficient electromagnetic interference (EMI) noise suppression.
The termination style for this choke is solder, providing reliable connectivity.
It is designed for industrial and automotive applications requiring suppression of asymmetric interference.
This common mode choke has a pin count of 2.
