TDK Unshielded Wirewound Surface Mount Inductor SIMID Series 0805 Package, 1 μH ±5% Inductance, 240 mA B82498F1102J000

Free Delivery in India | Lowest Global Shipping Charges

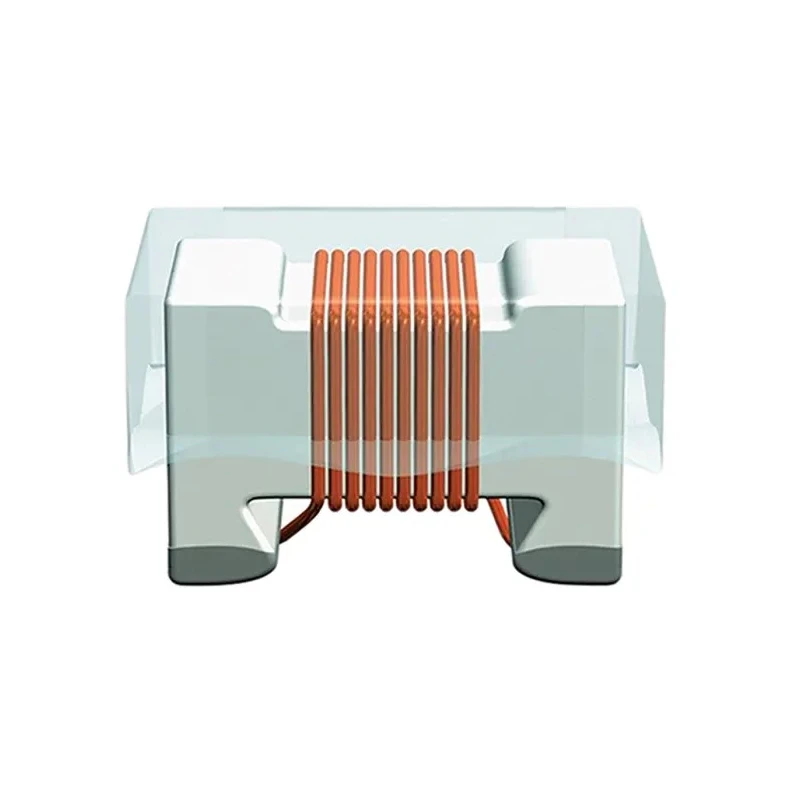

TDK Unshielded Wirewound Surface Mount Inductor SIMID Series 0805 Package, 1 μH ±5% Inductance, 240 mA B82498F1102J000



Category Surface Mount Inductors Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Operating Temperature	-55°C → +125°C
Dimensions	2.3 x 1.7 x 1.45mm
Height	1.4mm
Length	2.3mm
Model	B82498F1102J000
Depth	1.7mm
Operating Temp	-55°C → +125°C
Packaging	Tape & Reel
Series	SIMID
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Core Material	Ferrite
Inductance	1μH
Standards/Approvals	RoHS
Package/Case	0805
Maximum DC Current	240mA
Pin Count	2
Maximum DC Resistance	550mΩ
Inductance Tolerance	±5 %
Termination Style	Solder
Maximum Self Resonant Frequency	440MHz
Minimum Quality Factor	20
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200

Key Features

The inductor is designed with a ferrite core for efficient magnetic performance.
It supports a maximum DC current of 240 mA for reliable circuit operation.
Package size is 0805, measuring 2.3 x 1.7 x 1.45 mm, suitable for surface mount applications.
Features high-quality wirewound construction with epoxy moulded flat top for vacuum pickup.
Capable of operating in temperature range from -55°C to 125°C, making it suitable for automotive applications.
Meets automotive standard AEC-Q200, ensuring durability and compliance.
The termination style is solder, ideal for SMT assembly processes.
Maximum DC resistance is 550 mΩ, providing low power loss.

Product Description

TDK B82498F1102J000 is an unshielded wirewound surface mount inductor from the SIMID series, featuring a compact 0805 package size and a ferrite core for enhanced magnetic properties. This inductor offers a nominal inductance of 1 μH with a tolerance of ±5%, making it suitable for precision electronic circuits requiring stable inductance values.

With a maximum DC current rating of 240 mA, the inductor ensures reliable performance under moderate load conditions. Its physical dimensions of 2.3 mm length, 1.7 mm depth, and 1.45 mm height make it ideal for high-density PCB assemblies where space is limited.

The device is epoxy moulded with a flat top to facilitate vacuum pick-and-place during automated SMT assembly. It operates efficiently within a wide temperature range of -55°C to 125°C and is compliant with AEC-Q200 automotive standards, highlighting its robustness for automotive and industrial applications.

The inductor's maximum DC resistance of 550 milliohms guarantees low conduction losses, while its high self-resonant frequency of 440 MHz and a quality factor minimum of 20 enable excellent filter characteristics in RF and power supply circuits. It is RoHS compliant, ensuring it meets environmental regulations for hazardous substances.

The ferrite core construction offers high magnetic permeability and low core losses. Wirewound construction provides precise inductance and superior performance. Surface mount 0805 package allows compact yet effective integration on PCBs.

Epoxy moulded design protects against mechanical damage and moisture ingress. Suitable for industrial, automotive, and electronic manufacturing environments.

This TDK SIMID series inductor is perfect for use in power supplies, filtering circuits, and automotive electronic systems where size, reliability, and electrical performance are critical. Explore the Electronics Components category for more Surface Mount Inductors and related passive components at EnvMart.
