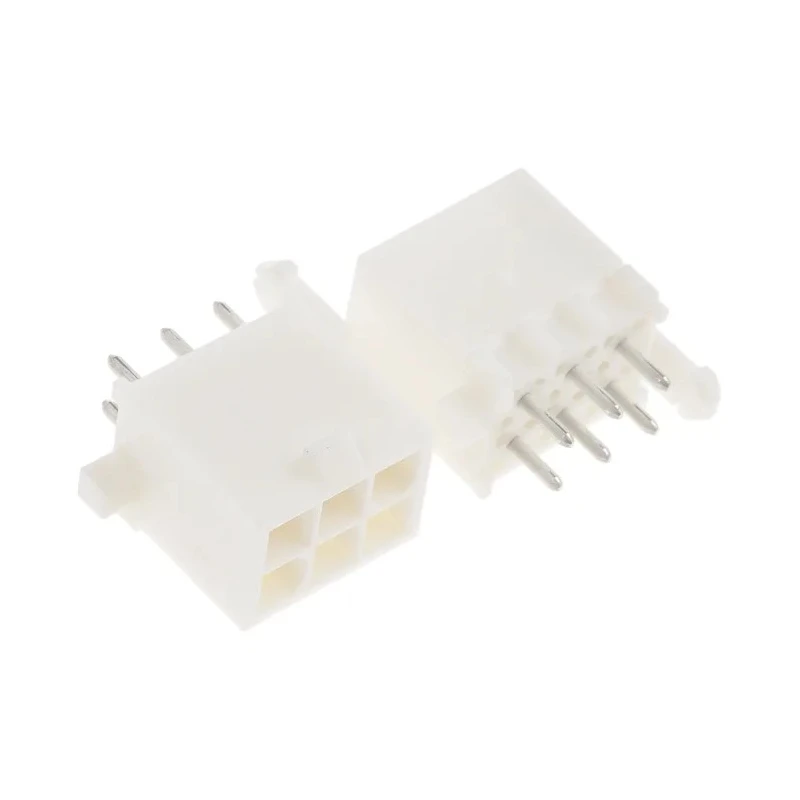

TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header, 6 Contact(s), 4.14 mm Pitch, 2 1-770178-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 4.14mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.69mm |
Key Features
- This PCB header features a 2-row, straight orientation with a shrouded design for enhanced safety.
- Constructed with a durable nylon housing rated UL94V-0 for flame retardance.
- Contacts are made of brass with tin plating ensuring reliable electrical performance.
- Supports a current rating of 9.5 amperes and a voltage rating of 600 volts.
- Operates safely in temperatures ranging from -55°C to 105°C to suit various environments.
- Termination is through hole with solder type connection featuring male contact gender.
- Tail pin length measures 3.69 mm for secure PCB insertion.
Product Description
TE Connectivity 1-770178-0 Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header is designed for robust wire-to-board connection applications requiring reliable electrical performance.
The product includes a 2-row, 6-contact male pin header with a 4.14 mm pitch and a shrouded, nylon housing that meets UL94V-0 flame retardant standards, ensuring high durability and safety.
This connector operates efficiently at voltages up to 600V and currents of 9.5A, with reliable performance in extreme temperatures from -55°C to 105°C, making it suitable for industrial, commercial, and electronic equipment assembly.
The brass contacts with tin plating offer corrosion resistance and excellent conductivity. The through-hole solder termination and secure positive locking latch mechanism facilitate effective PCB retention and connector stability.
This PCB header has 6 contacts arranged in 2 rows with a 4.14 mm pitch. The connector housing is made of flame retardant (UL94V-0) nylon material. The termination type is solder through-hole with male tail pins measuring 3.69 mm.
Designed for wire-to-board mating with a shrouded male connector interface. Reliable operation under a wide temperature range from -55°C to 105°C. Supports voltages up to 600V and currents up to 9.5A. This product is ideal for use in electronic components manufacturing, industrial machinery, automation systems, and PCB assembly lines requiring secure and durable connectivity.
Explore the extensive range of TE Connectivity components in the PCB Headers category at EnvMart for advanced connectivity solutions.
Explore more products in our Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this PCB header is 600 volts.
This model supports a current rating of 9.5 amperes.
The pitch for this connector is 4.14 mm.
This PCB header uses a solder through-hole termination type.
The housing is made of nylon, and the contacts are made of brass with tin plating.
This model operates safely in temperatures ranging from -55°C to 105°C.
This PCB header has 6 contacts arranged in 2 rows.
The tail pin length measures 3.69 mm.
This connector is shrouded, enhancing safety during use.
This model utilizes a wire-to-board connector system.
The country of origin for this PCB header is India.
