TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 6.8 μH ±20% 2.05 A IDC B82472G4682M000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 3.3mm |
| Length | 7.3mm |
| Model | B82472G4682M000 |
| Depth | 7.3mm |
| Packaging | Tape & Reel |
| Series | B82472-G4 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 6.8μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 2.05A |
| Pin Count | 2 |
| Maximum DC Resistance | 55mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Inductor Construction | Wirewound |
Key Features
- This inductor is magnetically shielded for excellent EMI reduction.
- Constructed with a ferrite core and enamel copper wire winding.
- Designed for use in filtering supply voltages and DC-DC converters.
- Termination style is solder, suitable for surface mounting.
- Operational temperature range from -55°C to 125°C ensures reliability in various conditions.
- Packaged in tape and reel for automated assembly processes.
- Compliant with RoHS standards for environmental safety.
- Suitable for automotive electronics and industrial applications.
Product Description
The TDK B82472G4682M000 is a high-quality shielded wirewound surface mount inductor designed for various electronics applications. Featuring a ferrite core and magnetically shielded construction, this inductor provides efficient EMI suppression, making it ideal for sensitive electronic circuits.
This device has a nominal inductance of 6.8 μH with an inductance tolerance of ±20%, capable of handling DC currents up to 2.05 A. It operates reliably within a temperature range of -55°C to 125°C, making it suitable for demanding industrial and automotive environments.
Its compact size, with dimensions of 7.3 mm in length, 3.3 mm in height, and 7.3 mm in depth, allows for flexible PCB layout and space-saving designs. The solder termination style facilitates easy surface mounting during PCB assembly, and the product is supplied in a tape and reel format, supporting high-volume manufacturing.
The construction uses a ferrite core and enamel copper wire winding, ensuring good inductance characteristics and stability. The inductor features a maximum DC resistance of 55 mΩ, optimizing power efficiency and minimizing heat generation.
This inductor is magnetically shielded to reduce electromagnetic interference effectively. Ideal for filtering supply voltages in DC-DC converters and automotive electronics. RoHS compliant, ensuring environmentally friendly and safe use.
Compact surface mount design aids in efficient PCB space utilization. Tape and reel packaging supports automated assembly and production efficiency.
The TDK B82472G4682M000 Surface Mount Inductor is a reliable and versatile component for industries including industrial electronics, automotive systems, power management, manufacturing, and telecommunications. It demonstrates high performance in harsh conditions while maintaining stability and efficiency.
Explore the Electronics & Electricals category on EnvMart for more high-quality inductors and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this surface mount inductor is 6.8 μH with an inductance tolerance of ±20%.
This model can handle a maximum DC current of 2.05 A.
It operates reliably within a temperature range of -55°C to 125°C.

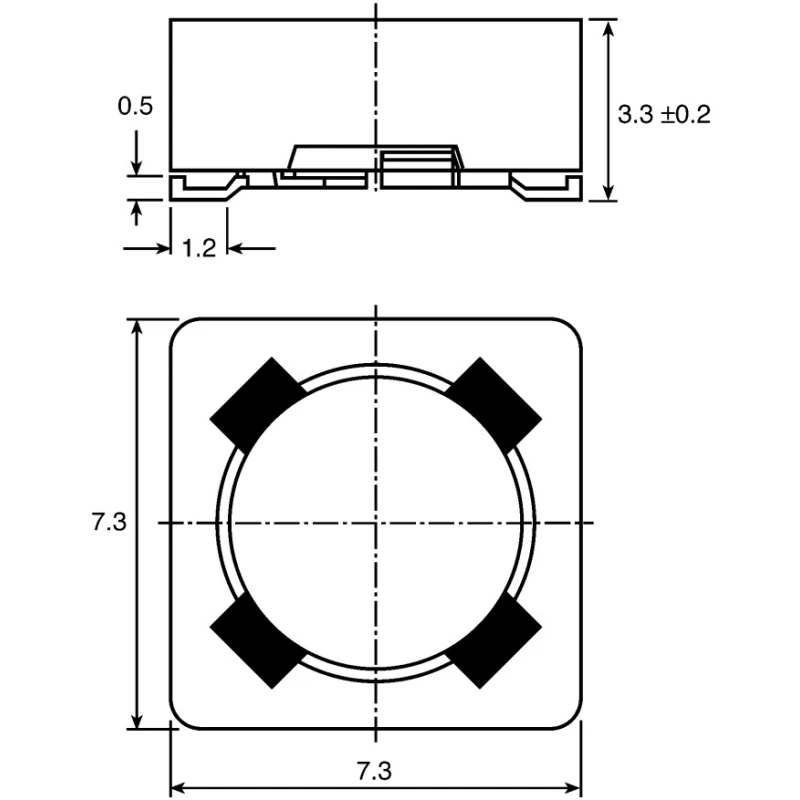

The dimensions of this inductor are 7.3 mm in length, 3.3 mm in height, and 7.3 mm in depth.
The inductor is constructed with a ferrite core, which aids in efficient EMI suppression.
The termination style is solder, making it suitable for surface mounting during PCB assembly.
It is packaged in tape and reel format, which supports automated assembly processes.
Yes, it is compliant with RoHS standards for environmental safety.
The maximum DC resistance is 55 mΩ, optimizing power efficiency.
This model is suitable for applications in automotive electronics and industrial systems, particularly in filtering supply voltages and DC-DC converters.
This inductor belongs to the B82472-G4 series.
The construction type of this inductor is wirewound, which contributes to its inductance characteristics and stability.
