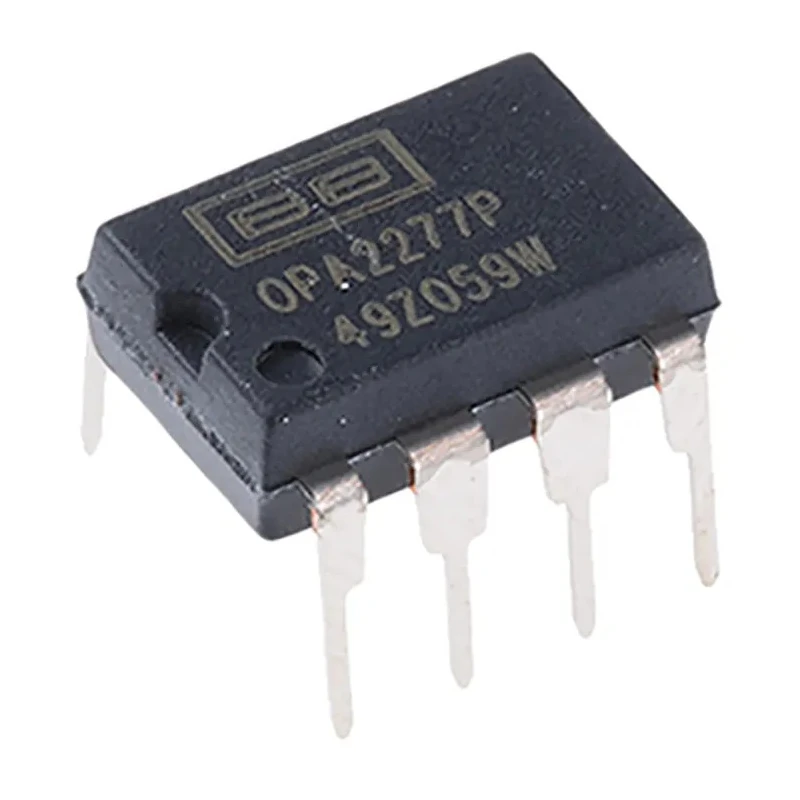

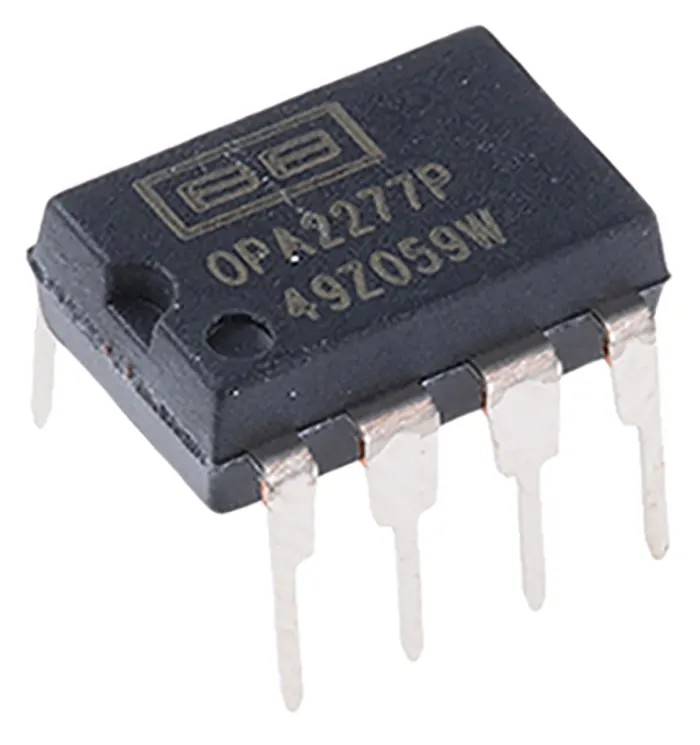

Texas Instruments Precision Operational Amplifier 1 MHz Gain Bandwidth, 18 V Max Supply, 8-Pin PDIP OPA2277P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | OPA2277P |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | OPA2277 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 2V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | ±2 nA |
| Slew Rate | 0.8V/μs |
Key Features
- Dual-channel operational amplifier ideal for precision electronics.
- Designed for high accuracy with low input bias current of ±2 nA.
- Wide supply voltage range from 2 V to 18 V enhances versatility.
- Low input offset voltage of ±20 μV supports precise signal processing.
- Slew rate of 0.8 V/μs enables moderate-speed operation.
- Operating temperature ranges from -40°C to 85°C for reliable performance in diverse environments.
- Through-hole mount package type PDIP facilitates easy installation on PCB boards.
- Suitable for demanding applications such as transducer amplifiers, instrumentation, and active filters.
Product Description
Texas Instruments OPA2277P is a precision operational amplifier with a gain bandwidth product of 1 MHz and a maximum supply voltage of 18 V, housed in an 8-pin PDIP through-hole package. This dual-channel operational amplifier is engineered for high accuracy and low parametric drift, making it suitable for demanding industrial and laboratory applications.
The device features a low input bias current of ±2 nA and a low input offset voltage of ±20 μV, supporting precision signal amplification in sensitive electronic circuits. It operates reliably over a wide temperature range from -40°C up to 85°C and accommodates supply voltages from 2 V to 18 V, providing versatility for various design requirements.
With a slew rate of 0.8 V/μs, the OPA2277P supports moderate signal response speeds, ideal for applications such as transducer and strain gauge amplifiers, precision integrators, active filters, and high accuracy instrumentation. The compact package dimensions allow easy mounting on printed circuit boards, maintaining efficient space utilization.
Dual-channel precision operational amplifier for high accuracy. Low input bias current improves signal integrity. Wide operating voltage range from 2 V to 18 V. Low input offset voltage ensures minimal signal error. Slew rate suitable for moderate frequency applications.
Wide operating temperature range enhances reliability. Compact 8-pin PDIP through-hole package for easy PCB integration. Ideal for instrumentation, filters, and transducer amplifier design.
This Texas Instruments operational amplifier enables the creation and collaboration of advanced electronic circuits, supporting industrial, laboratory, and manufacturing uses. The device is designed to uphold precision and reliability in control systems, measurement instruments, and signal processing applications.
Explore more Operational Amplifiers and precision analog components to optimize your electronic design projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The OPA2277P has a gain bandwidth product of 1 MHz.
The maximum supply voltage for the OPA2277P is 18 V.
This model features a low input bias current of ±2 nA.
The operational amplifier operates within a temperature range of -40°C to 85°C.
The slew rate of the OPA2277P is 0.8 V/μs.
This model is a dual-channel operational amplifier, featuring 2 channels.
The dimensions of the OPA2277P are 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height.
The OPA2277P is housed in an 8-pin PDIP (Plastic Dual In-line Package) package.
The minimum supply voltage for the OPA2277P is 2 V.
It is suitable for applications such as transducer amplifiers, instrumentation, and active filters.
The input offset voltage of this model is ±20 μV, which supports precise signal processing.
This operational amplifier supports through-hole mounting, facilitating easy installation on PCB boards.
