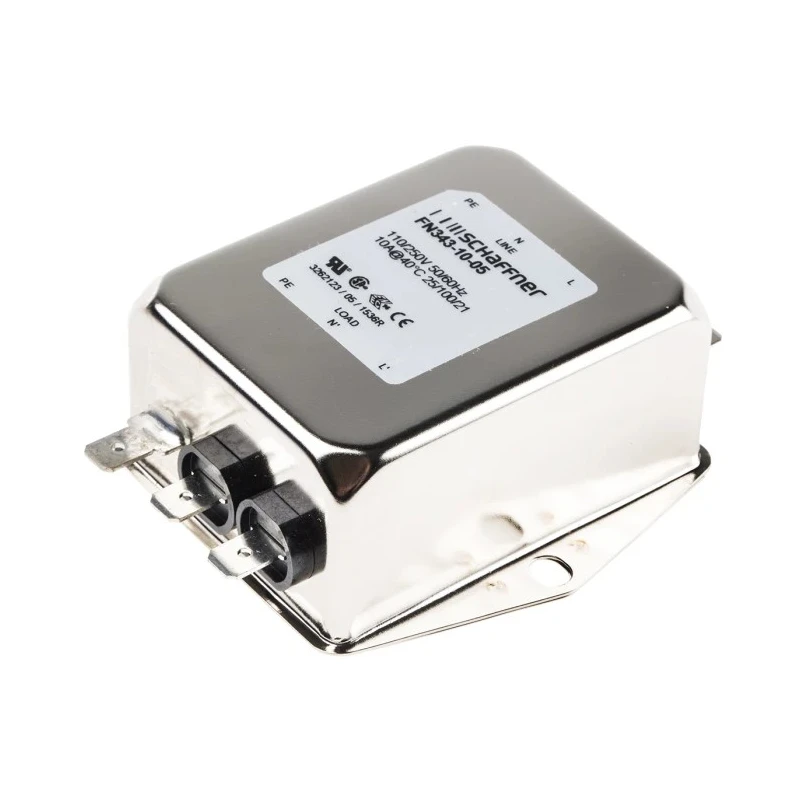

Schaffner Chassis Mount EMI Filter 10 A 250 V AC 400 Hz, Two-Stage, Tab Termination, Single Phase FN343

Free Delivery in India | Lowest Global Shipping Charges

Schaffner Chassis Mount EMI Filter 10 A 250 V AC 400 Hz, Two-Stage, Tab Termination, Single Phase FN343

Name: Schaffner Chassis Mount EMI Filter 10 A 250 V AC 400 Hz, Two-Stage, Tab Termination, Single Phase FN343
Brand: Schaffner
SKU: 191146
Price: 85.07 USD
Availability: InStock



Category EMI Filter Brand Schaffner Condition New

Specifications

Country of Origin	Thailand
Brand	Schaffner
Height	30.3mm
Length	70mm
Model	FN343
Depth	69mm
Mount Type	Chassis Mount
Operating Frequency	400Hz
Series	FN343
Maximum Operating Temperature	100°C
Number Of Stages	2
Resistance	1mΩ
Capacitance	100nF
Minimum Operating Temperature	-25°C
Maximum Current	10A
Number of Phases	1
Leakage Current	340μA
Maximum Voltage	250V ac
Inductance	660μH
Termination Style	Tab
RS PRO 10A 250 V ac 400Hz, Chassis Mount RFI Filter, TabBrand	RS PRO

Key Features

This two-stage EMI filter features tab termination style for secure mounting.
Compact design measures 70 mm length, 69 mm depth, and 30.3 mm height.
Capacitance is rated at 100 nF and inductance at 660 μH for efficient noise reduction.
Operating temperature ranges from -25°C to 100°C, suitable for diverse environments.
Leakage current is limited to 340 μA ensuring minimal power loss.
Low resistance of 1 mΩ contributes to high performance and reliability.
Designed for single phase electrical and electronic equipment applications.
Manufactured in Thailand ensuring quality and consistency.

Product Description

Schaffner FN343-10-05 chassis mount EMI filter offers reliable suppression of electromagnetic interference for single-phase power line applications. Rated for 10 A maximum current and 250 V AC voltage at 400 Hz frequency, this filter is designed for robust performance in household equipment, power supplies, consumer goods, and office automation devices. Its two-stage filter design incorporates integrated earth line choke and chokes with high saturation to ensure excellent attenuation and thermal behavior.

The filter features a compact chassis mount form factor with tab termination style, facilitating easy installation in electrical enclosures. Measuring 70 mm in length, 69 mm in depth, and 30.3 mm in height, it suits constrained spaces without compromising performance. The capacitance rating of 100 nF and inductance of 660 μH enable effective EMI filtering, while the leakage current of 340 μA and resistance of 1 mΩ minimize power consumption and improve efficiency.

Operating temperature range from -25°C to 100°C allows this filter to perform reliably in diverse industrial and commercial environments. It is manufactured in Thailand adhering to quality standards, though it holds no explicit certifications.

Applications include electrical and electronic equipment, power supplies, household and consumer goods, office automation, and datacom equipment. Its robust design ensures long service life and protection against unwanted EMI disturbances.

This EMI filter is a compact, two-stage chassis mount component suitable for single-phase systems. It maintains performance over a wide temperature range and supports currents up to 10 A. Compact size with low resistance ensures easy integration and operational efficiency.
