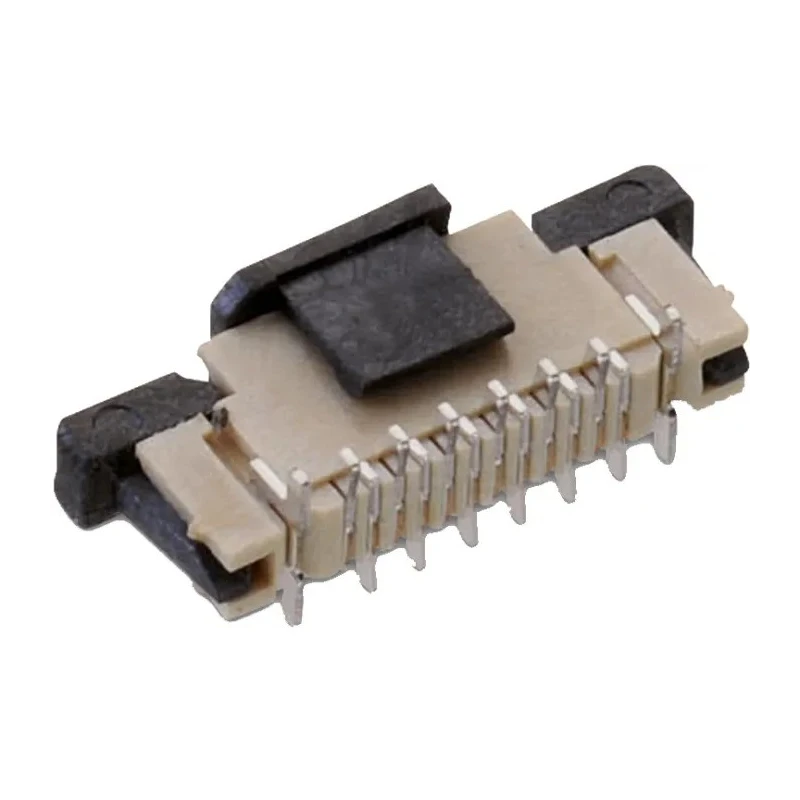

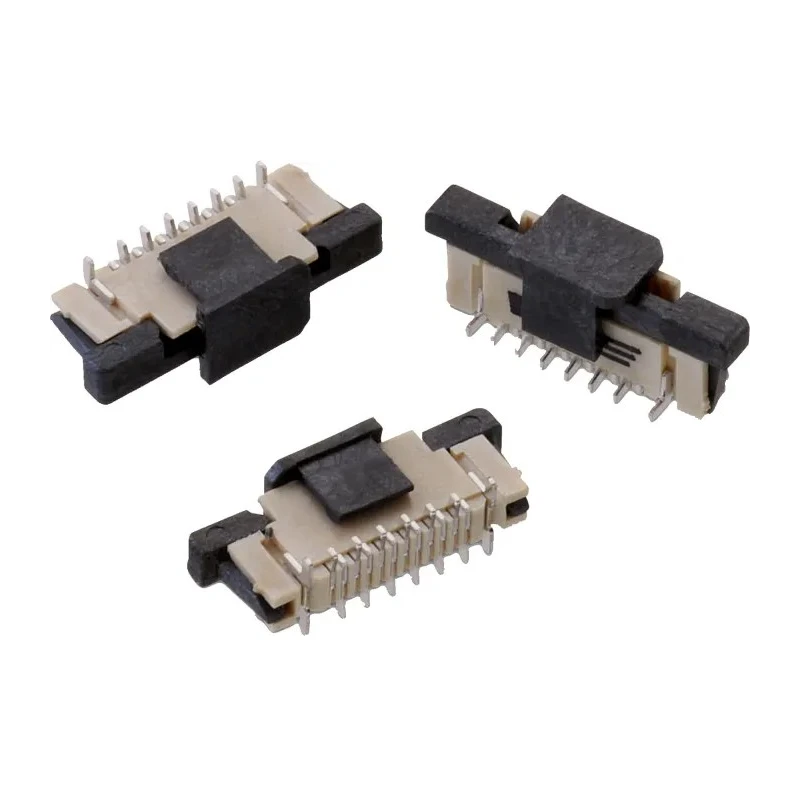

Wurth Elektronik WR-FPC 0.5 mm Pitch 33 Way Vertical Female FPC Connector ZIF Vertical Contact 50V 500mA 687333124422
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50V |
| Brand | Wurth Elektronik |
| Orientation | Vertical |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | ZIF Vertical Contact |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -25°C |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 33 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Solder Tabs | Brass |
| Insulator Material | LCP |
Key Features
- The connector features a 0.5 mm pitch for compact PCB interfacing.
- It includes 33 contacts made of phosphor bronze, enabling durable conductivity.
- Rated for a current of 500mA and operating voltage of 50V.
- Mount type is surface mount, suitable for SMT applications.
- Incorporates a Zero Insertion Force (ZIF) vertical contact termination for easy cable insertion and removal.
- Supports locking mechanism to ensure secure connection reliability.
- Contact plating uses tin over nickel to provide corrosion resistance.
- Housing made from liquid crystal polymer (LCP), ensuring mechanical stability and thermal resistance.
Product Description
Wurth Elektronik model 687333124422 is a high-quality 33 Way Vertical Female FPC Connector featuring a 0.5 mm pitch intended for secure, precise connections in electronics manufacturing. This surface mount connector employs a Zero Insertion Force (ZIF) vertical contact termination type, minimizing wear during insertion and removal of flexible printed circuits. Suitable for operating voltages up to 50V and current ratings of 500mA, it excels in compact electronic device assemblies and applications requiring reliable interconnects.
Constructed with phosphor bronze contacts plated with tin over nickel, this connector ensures excellent conductivity and corrosion resistance. The housing utilizes liquid crystal polymer (LCP) for superior mechanical strength and thermal stability, suitable for use across a temperature range from -25°C to 85°C. The inclusion of a locking mechanism enhances connection security in operational environments.
Ideal for industrial, construction, HVAC, manufacturing, laboratory, and electronic assembly use cases, this FPC connector meets demanding standards for performance and durability. The compact 0.5 mm pitch layout supports high-density PCB designs and efficient space utilization.
The connector has a total of 33 female contacts arranged vertically for flexible cable interfacing. Zero Insertion Force vertical contacts facilitate ease of assembly and reduce connector damage. Surface mount configuration supports modern PCB assembly techniques.
Robust housing material provides dielectric performance and stability under thermal stress. Operating temperature from -25°C to 85°C ensures sustained performance in varied environments. Locking mechanism secures contact retention during vibration or movement.
Phosphor bronze contacts have excellent electrical and mechanical properties. Contact plating of tin over nickel prolongs connector lifespan by protecting against corrosion. Manufactured in China with adherence to quality standards.
Set contains 1 Pc Wurth Elektronik WR-FPC Vertical Female FPC Connector with ZIF vertical contact suitable for advanced electronic applications. Browse EnvMart's wide selection of FPC Connectors and Wurth Elektronik products for reliable electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector features a 0.5 mm pitch, which is designed for compact PCB interfacing.
It has a total of 33 female contacts arranged vertically for flexible cable interfacing.
The maximum operating voltage is rated at 50V.
It is rated for a current of 500mA.
This model employs a Zero Insertion Force (ZIF) vertical contact termination, facilitating easy cable insertion and removal.
The contacts are made of phosphor bronze, while the housing is constructed from liquid crystal polymer (LCP).
The operating temperature range is from -25°C to 85°C.
It supports surface mount (SMT) applications, making it suitable for modern PCB assembly techniques.
The contact plating consists of tin over nickel, which provides corrosion resistance.
Yes, it incorporates a locking mechanism to ensure secure connection reliability during use.
It is manufactured in China, adhering to quality standards.
This model is ideal for industrial, construction, HVAC, manufacturing, laboratory, and electronic assembly applications.
