Wurth Elektronik WR-FPC 0.5 mm Pitch 24 Way Horizontal Female FPC Connector, Solder 687124149022

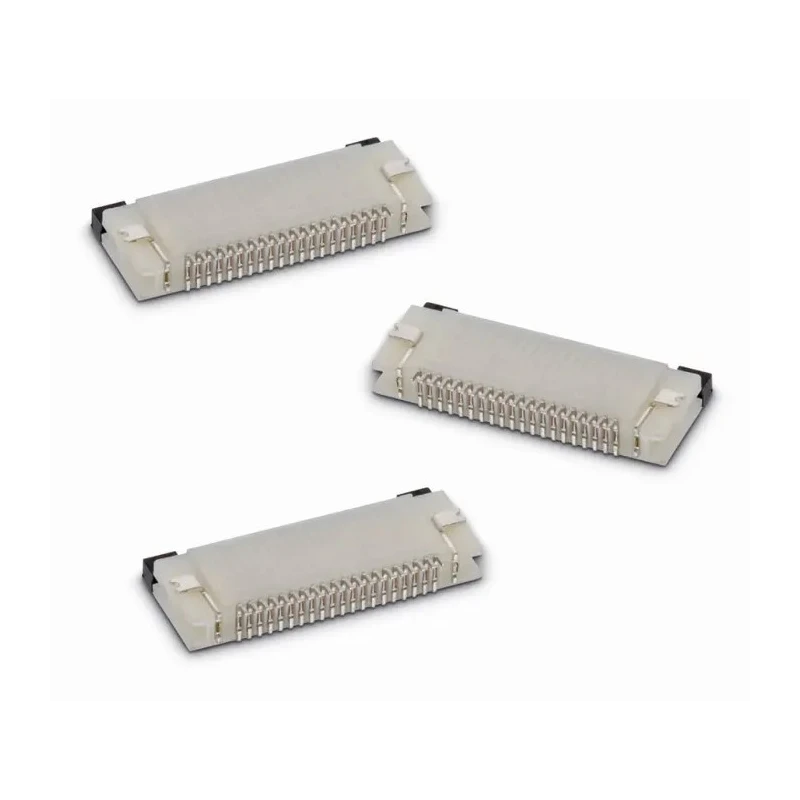

Wurth Elektronik model 687124149022 is a 24 Way Horizontal Female Flat Flexible Cable (FPC) Connector with a 0.5 mm pitch, designed for surface mount technology (SMT) applications. This connector features a ZIF (Zero Insertion Force) flip-lock actuator that facilitates easy and secure cable insertion and retention, making it ideal for miniaturized electronic devices.

The contact material is phosphor bronze with tin over nickel plating, providing excellent electrical conductivity and corrosion resistance. The housing is composed of polyamide, ensuring durability and mechanical stability. With a current rating of 500 mA and voltage rating of 50 V AC, it supports low power applications.

Operating temperature ranges from -40°C to 105°C, enabling reliable performance in both industrial and commercial environments. The connector’s secure locking mechanism eliminates the need for a mating connector, providing an efficient wire-to-board solution and reducing component costs.

Typical applications include connections to small displays, keyboards, and other compact devices requiring secure, high-density FPC connections. Its low-profile and lightweight design meet the demands for space-saving and secure electrical connectivity in modern electronics.

Features 24 contacts for high density connectivity. Constructed with phosphor bronze contacts plated with tin over nickel. Horizontal orientation with a bottom contact position and flip-lock hinge actuator for secure connections.

Supports a voltage rating of 50 V AC and current rating of 500 mA. Operates reliably within a temperature range of -40°C to 105°C. Housing is made of durable polyamide material. Suitable for surface mount application with solder termination type.

Locking mechanism ensures secure cable connection without requiring a mating connector. Designed for applications such as small display or keyboard connections where space-saving and secure FPC connections are needed.

This FPC connector is a vital component in industrial electronics manufacturing, enabling compact and robust connection solutions. It is well-suited for use in a wide range of industries including electronics manufacturing, telecommunications, computing, and consumer electronic devices.

Explore more in our FPC Connector category to find compatible and complementary components.
