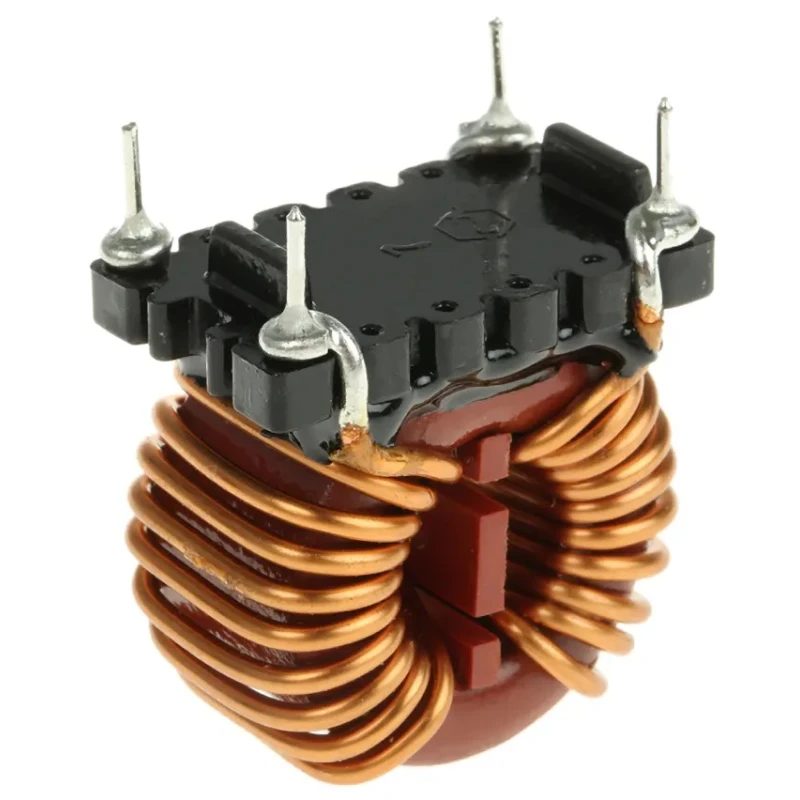

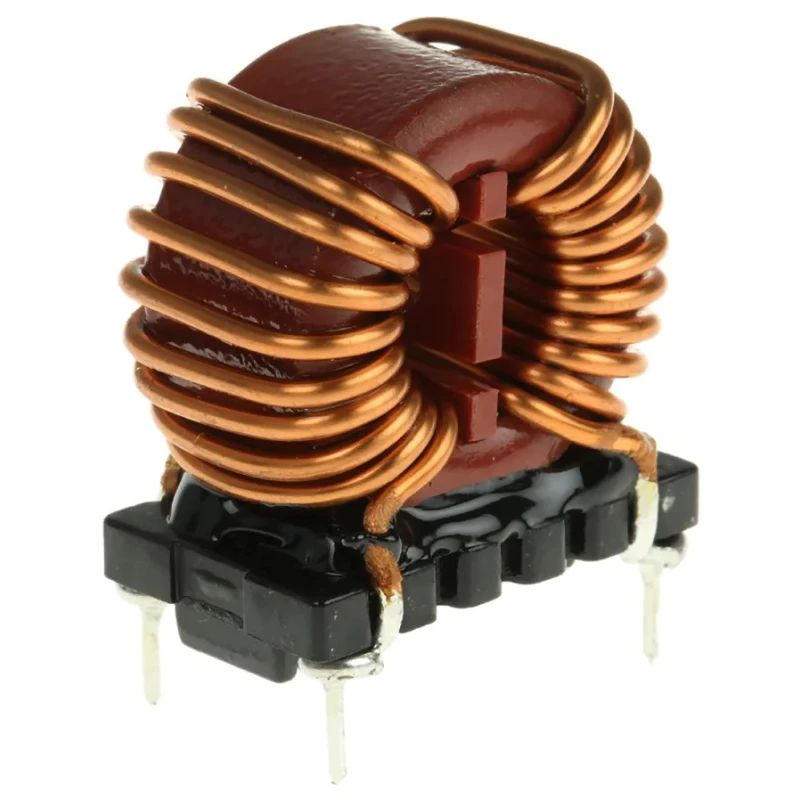

Wurth Elektronik Leaded Inductor 1 mH 12 A Idc 9 mΩ Rdc 1500V Radial Mount WE-CMB HC 7448251201
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 30mm |
| Brand | Wurth Elektronik |
| Height | 35mm |
| Length | 30.5mm |
| Depth | 22mm |
| Mount Type | Radial |
| Series | WE-CMB HC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Test Frequency | 10kHz |
| Core Material | Manganese Zinc |
| Maximum Voltage | 1500V |
| Inductance | 1mH |
| Standards/Approvals | UL-94V-0, UL-94V-2 |
| Maximum DC Current | 12A |
| Pin Count | 12 |
| Maximum DC Resistance | 9mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Solder |
| Lead Pitch | 25mm |
| Lead Diameter | 1mm |
Key Features
- The inductance value is precisely 1 mH with a tolerance of ±30%.
- Designed with manganese zinc core material for improved performance.
- Supports a maximum DC current of 12 A for robust applications.
- Compact radial mount structure with 12 pins and 25 mm lead pitch.
- Operational temperature ranges from -40°C to +125°C for diverse industrial conditions.
- Rated for a maximum voltage of 1500 V and tested at 10 kHz frequency.
- Complies with UL-94V-0 and UL-94V-2 flammability standards ensuring safety.
- Physical dimensions include 30 mm diameter, 35 mm height, 30.5 mm length, and 22 mm depth.
Product Description
Wurth Elektronik 7448251201 leaded inductor is a high quality manganese zinc based component designed for power electronics applications. It delivers an inductance of 1 mH with a maximum DC current rating of 12 A and low DC resistance of 9 mΩ. With a compact radial mount form factor, it features 12 pins and a lead pitch of 25 mm allowing for secure board assembly.
The device operates reliably within a wide temperature range from -40°C to +125°C, making it suitable for various industrial environments. It can withstand a maximum voltage of 1500 V and is tested at a frequency of 10 kHz, ensuring its performance for power line filters and noise suppression tasks.
This WE-CMB HC series choke incorporates a manganese zinc core for improved magnetic properties and noise suppression capabilities. The compact design coupled with flammability ratings UL-94V-0 and UL-94V-2 provides safe operation under demanding conditions.
Typical applications include suppression of common mode noise and radio interference in motors, filters for power electronics, and devices without a ground connection. The solder termination style guarantees strong electrical connections on printed circuit boards.
The inductance value is precisely 1 mH with a tolerance of ±30%. Supports a maximum DC current of 12 A with minimal resistance of 9 mΩ. Compact radial mount design with 12 pins and 25 mm pitch. Wide operating temperature from -40°C to +125°C for industrial usage.
Compliant with UL-94V-0 and UL-94V-2 safety standards. Manganese zinc core material provides excellent noise suppression. Maximum voltage rating of 1500 V for robust operation. Physical dimensions: 30 mm diameter, 35 mm height, 30.5 mm length, and 22 mm depth.
Ideal for power line input/output filters and motor noise suppression.
The Wurth Elektronik leaded inductor is a reliable choice for enhancing power quality and electromagnetic compatibility in electronic circuits. Explore more Leaded Inductors and power components at EnvMart for your industrial and electronic development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value is precisely 1 mH with a tolerance of ±30%.
It supports a maximum DC current of 12 A, making it suitable for robust applications.
This inductor is rated for a maximum voltage of 1500 V.
The operational temperature ranges from -40°C to +125°C, allowing it to function in diverse industrial conditions.
It is designed with a manganese zinc core material for improved performance and noise suppression.
This model features 12 pins with a lead pitch of 25 mm for secure board assembly.
The dimensions are 30 mm in diameter, 35 mm in height, 30.5 mm in length, and 22 mm in depth.
It has a compact radial mount structure suitable for various applications.
It complies with UL-94V-0 and UL-94V-2 flammability standards, ensuring safety during operation.
The maximum DC resistance is 9 mΩ, contributing to its efficiency in applications.
It is tested at a frequency of 10 kHz, which is typical for power line applications.
Typical applications include suppression of common mode noise and radio interference in motors and filters for power electronics.
