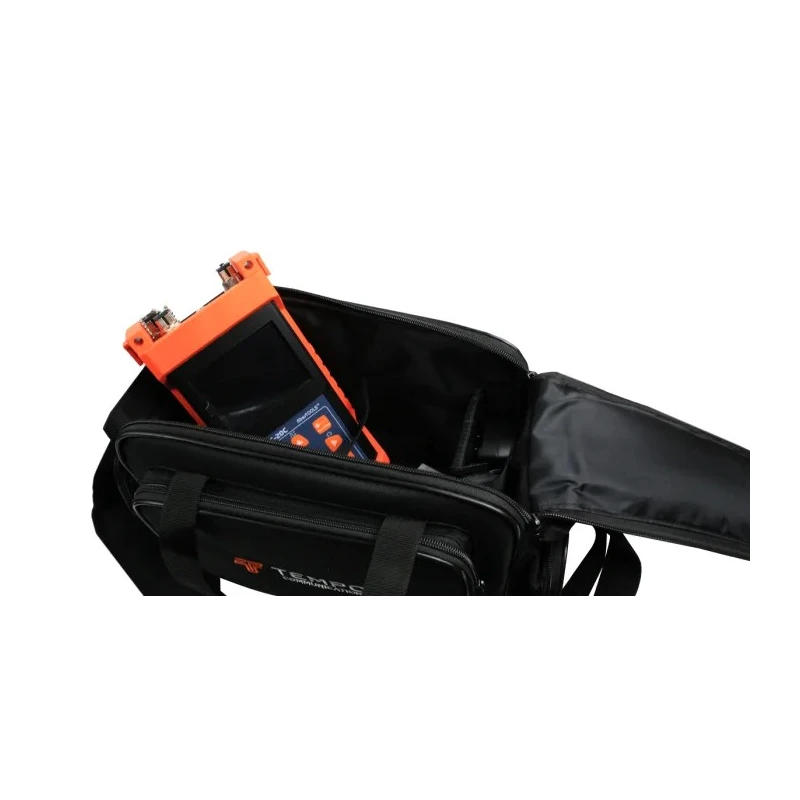

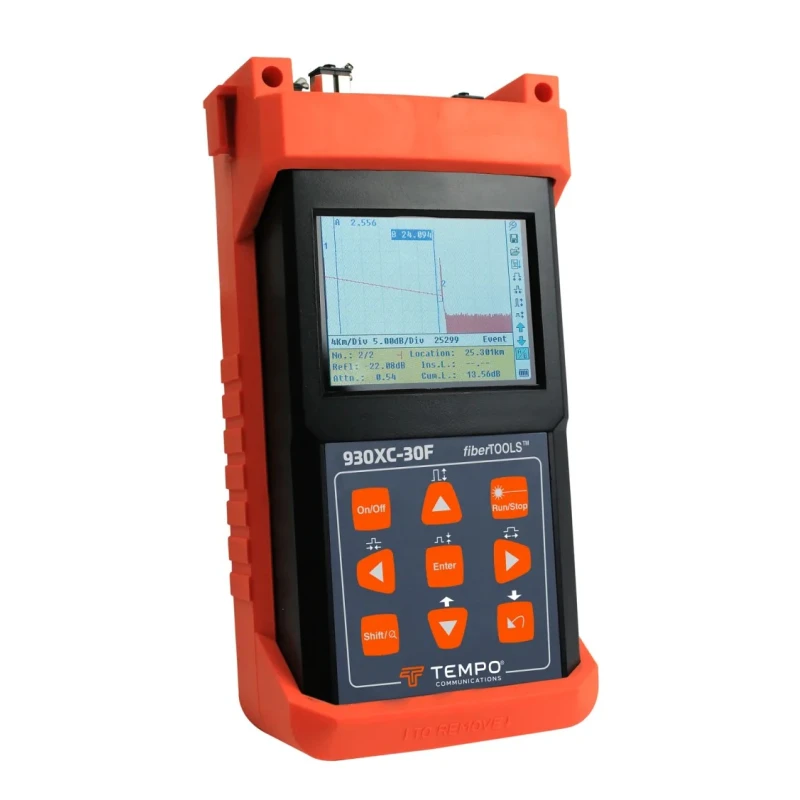

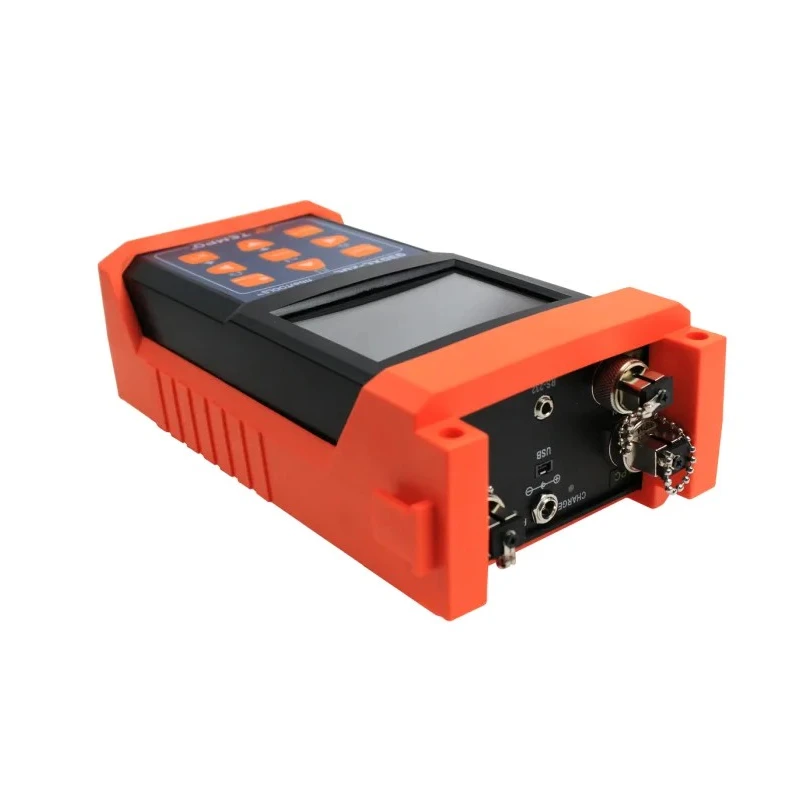

Tempo Single Mode Optical Time Domain Reflectometer SC/APC, 930XC-30F, 1625nm, 8h NiMH Battery 930XC-30F (SC/APC)
Specifications
| Country of Origin | China |
|---|---|
| Resolution | 0.01 dB |
| Brand | Tempo |
| Battery Life | 8h |
| Battery type | Nickel-Metal Hydride |
| Height | 64mm |
| Length | 196mm |
| Wavelength | 1625nm |
| Model | 930XC-30F (SC/APC) |
| Connector Type | SC, APC |
| Gross Weight | 870g |
| Width | 100mm |
| Maximum Operating Temperature | 50°C |
| Equipment Type | Optical Time Domain Reflectometer |
| Cable Type | Single Mode |
| Minimum Operating Temperature | -10°C |
| Interfaces | USB port |
| Standards/Approvals | UL, CE |
Key Features
- Designed for precise fibre optic cable diagnostics.
- Operates at 1625nm wavelength with selectable ranges up to 240km.
- SC/APC connector types ensure efficient data transmission.
- Nickel-Metal Hydride battery supports up to 8 hours of operation.
- Resolution of 0.01dB and up to 38dB dynamic range for advanced accuracy.
- Graphical interface with one-button test functionality and USB port for data transfer.
- Lightweight handheld device with robust 196mm x 100mm x 64mm build.
- Suitable for industrial and laboratory fibre installation and maintenance.
Product Description
Tempo 930XC-30F (SC/APC) Single Mode Optical Time Domain Reflectometer is engineered for comprehensive fibre optic cable diagnostics in industrial and laboratory environments. Its robust handheld design features an easy-to-read graphical interface that simplifies operation, allowing users to start measurements with the push of a single button. The device optimizes test parameters automatically to provide optimal results for fibre networks.
The reflectometer operates at a wavelength of 1625nm and offers selectable test ranges up to 240 kilometres. With its event deadzone of 1m and attenuation deadzone of 4.5m, it can detect minute reflections and losses in fibre optic cables, making it suitable for network installations, troubleshooting, and maintenance. The 0.01dB resolution and dynamic range of up to 38dB further enhance its diagnostic capabilities for long cable infrastructures.
Precise fibre optic measurement and diagnostics. High dynamic range and resolution for accurate detection. SC/APC connectors enable reliable fibre network testing. Nickel-Metal Hydride battery provides a long uninterrupted operating time of 8 hours.
Industrial-grade interface simplifies user operation and data management via USB port. Portable design with dimensions of 196mm x 100mm x 64mm and weight of 870g. Includes Macrobend analysis to locate fibre losses at 1550nm wavelength.
Complies with CE, UL and FCC regulations.

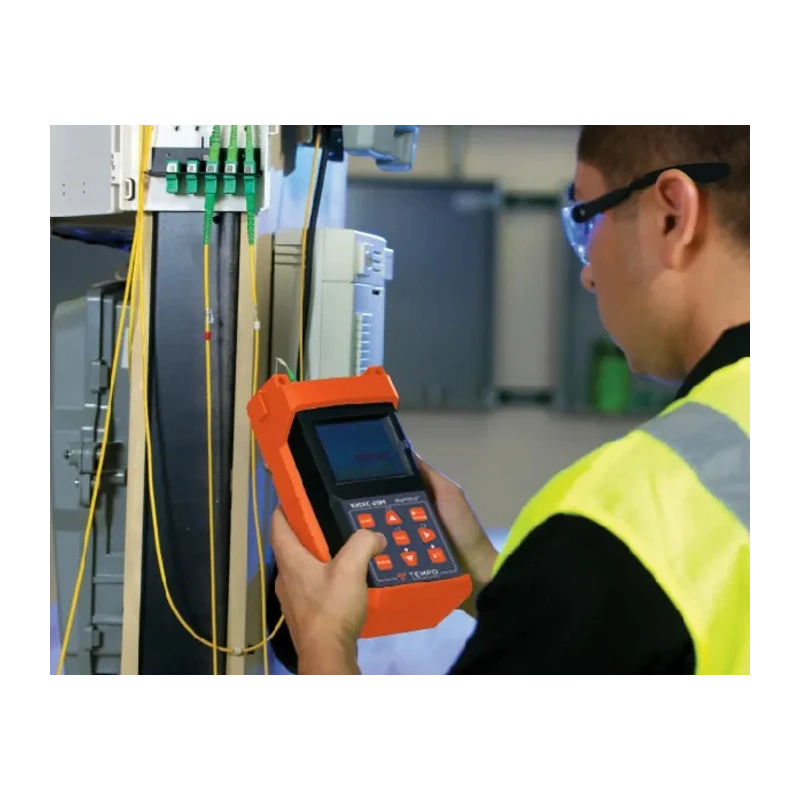

The Tempo 930XC-30F OTDR excels in demanding industrial, laboratory, telecom, and network environments. Its advanced measurement data storage (up to 1,000 test curves) and visual fault locator support efficient workflow for installation teams and facility managers.
Applications extend to fibre installation, cable fault diagnostics, manufacturing quality control, and maintenance of industrial communications and telecom infrastructures. Operating within a wide temperature range (-10°C to 50°C), the device is engineered for rugged working conditions.
For more technical and industrial measurement equipment, browse the Tempo brand and Optical Measuring categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Tempo 930XC-30F operates with selectable test ranges up to 240 kilometres.
This model has a resolution of 0.01 dB, allowing for precise measurements.
It is equipped with SC/APC connector types, ensuring efficient data transmission.
The Nickel-Metal Hydride battery supports up to 8 hours of continuous operation.
The device offers a dynamic range of up to 38 dB for advanced accuracy in diagnostics.
This unit has dimensions of 196mm x 100mm x 64mm and weighs 870g.
The operating temperature range is between -10°C to 50°C, suitable for rugged conditions.
Yes, it features a USB port for data transfer and management.
The 930XC-30F complies with UL, CE, and FCC regulations.
It is suitable for fibre installation, cable fault diagnostics, and maintenance of telecom infrastructures.
The event deadzone is 1 meter, allowing it to detect minute reflections in fibre optic cables.
It has a graphical interface with one-button test functionality, simplifying operation for users.
