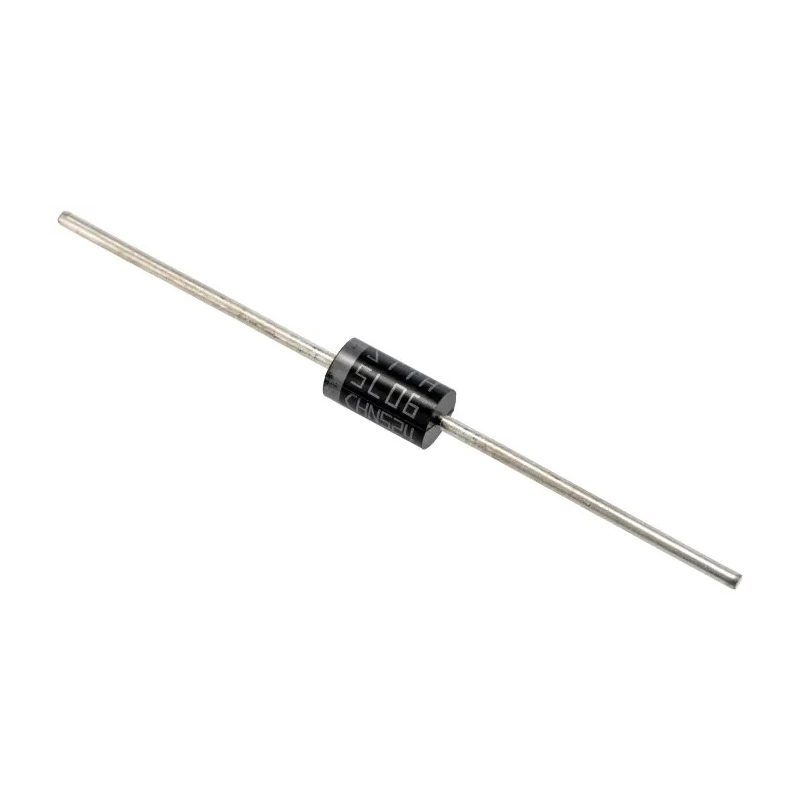

STMicroelectronics 600 V 5 A Switching Diode 2-Pin DO-201AD STTH5L06
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | STTH5L06 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | STTH |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 110A |
| Maximum Forward Voltage Vf | 1.3V |
| Peak Reverse Recovery Time trr | 95ns |
Key Features
- Maximum continuous forward current of 5 amperes ensures robust performance.
- Peak reverse repetitive voltage rating of 600 volts supports high voltage applications.
- Low maximum forward voltage of 1.3 volts reduces power loss.
- Peak reverse current limited to 5 microamperes enhances efficiency.
- Peak non-repetitive forward surge current rating of 110 amperes for surge tolerance.
- Fast peak reverse recovery time of 95 nanoseconds improves switching speed.
- Operating temperature range from -65°C to 175°C allows use in extreme conditions.
- Compact DO-201AD through-hole package with precise dimensions (9.5mm length, 5.3mm diameter) for easy PCB mounting.
Product Description
STMicroelectronics STTH5L06 is a high-performance switching diode designed for reliable operation in power electronics and semiconductor applications. This diode supports a maximum continuous forward current of 5 A and a peak reverse repetitive voltage of 600 V, making it suitable for demanding switching environments.
Featuring a compact 2-pin DO-201AD package, it simplifies PCB assembly and ensures stable mounting through its through-hole mount type. The rectifier is engineered with a single diode switching configuration, optimized for efficient power rectification with minimal losses.
Key electrical characteristics include a maximum forward voltage of 1.3 V, a peak reverse current of just 5 μA, and a peak non-repetitive forward surge current of 110 A, contributing to stable performance even under surge conditions.
The fast peak reverse recovery time of 95 ns enhances switching efficiency in high-frequency applications. Its operating temperature spans a wide range from -65°C to 175°C, allowing it to perform reliably in harsh industrial, electronic, and power management systems.
With precise dimensional specifications - length 9.5 mm and diameter 5.3 mm - the diode fits well in compact design layouts. STMicroelectronics’ engineering assures product quality and adheres to no special certifications but meets industry standards for switching diodes and rectifiers.
Maximum continuous forward current of 5 amperes ensures robust performance. Peak reverse repetitive voltage rating of 600 volts supports high voltage applications. Low maximum forward voltage of 1.3 volts reduces power loss.
Peak reverse current limited to 5 microamperes enhances efficiency. Peak non-repetitive forward surge current rating of 110 amperes for surge tolerance. Fast peak reverse recovery time of 95 nanoseconds improves switching speed.
Operating temperature range from -65°C to 175°C allows use in extreme conditions. Compact DO-201AD through-hole package with precise dimensions (9.5mm length, 5.3mm diameter) for easy PCB mounting. Single diode switching rectifier configuration suitable for power management.
Designed by STMicroelectronics, assuring quality and reliability. This diode is ideal for use in industrial electronic circuits, power supplies, and switching applications requiring high voltage and current capability with fast recovery.
Browse EnvMart categories for semiconductor components and discover more Schottky and switching diodes by STMicroelectronics and other top manufacturers.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STMicroelectronics STTH5L06 has a maximum continuous forward current of 5 amperes.
This model supports a peak reverse repetitive voltage rating of 600 volts, making it suitable for high voltage applications.
The maximum forward voltage of the STTH5L06 is 1.3 volts, which helps reduce power loss during operation.
The peak reverse current for this model is limited to 5 microamperes, enhancing its efficiency.
The peak non-repetitive forward surge current rating is 110 amperes, providing surge tolerance for the diode.
This diode features a fast peak reverse recovery time of 95 nanoseconds, which improves switching speed.
The operating temperature range for this model spans from -65°C to 175°C, allowing use in extreme conditions.
The STTH5L06 has a length of 9.5 mm and a diameter of 5.3 mm, making it compact for PCB mounting.
It comes in a compact DO-201AD through-hole package, which simplifies PCB assembly.
The STTH5L06 is designed with a single diode switching configuration, optimized for efficient power rectification.
The country of origin for the STTH5L06 is India.
This model belongs to the STTH series of diodes, which are designed for high-performance applications.
