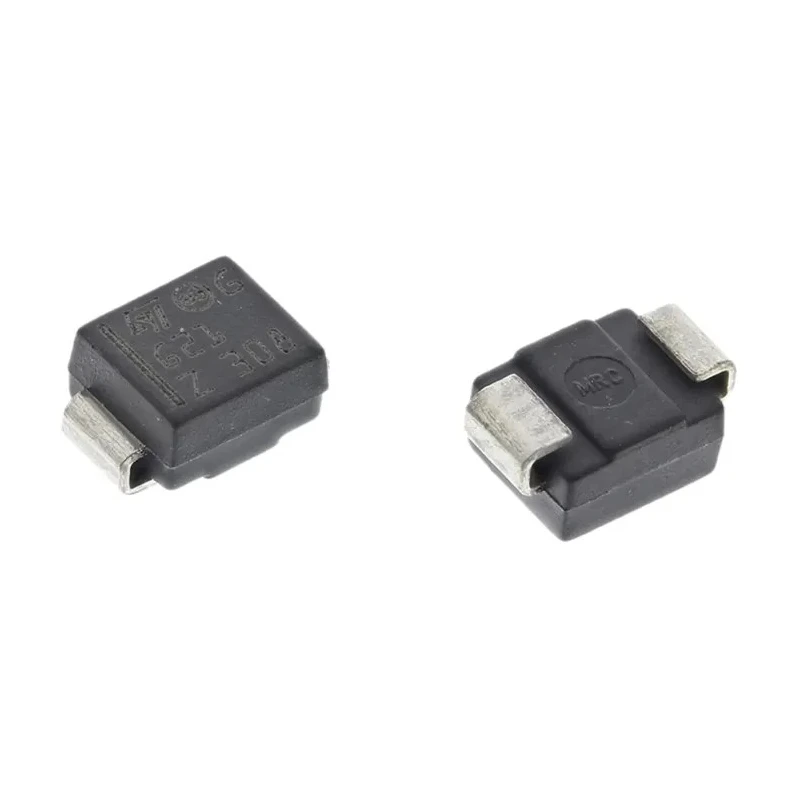

STMicroelectronics Schottky Diode 100 V 2 A Surface Mount DO-214AA STPS2H100U
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | STPS2H100U |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | STPS2H100 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 0.65V |
| STMicroelectronics Diode, BAT49Brand | STMicroelectronics |
Key Features
- Surface mount type for easy PCB integration.
- Maximum forward voltage of 0.65 V to ensure efficient rectification.
- Wide operating temperature range from -65°C to 175°C for robust applications.
- Peak non-repetitive forward surge current up to 75 A for transient handling.
- Single diode configuration with 2 pins in DO-214AA package.
- Low peak reverse current of 1 μA to minimize leakage losses.
- Schottky rectifier type optimized for fast switching and low forward drop.
- Ideal for power supply, automotive, and industrial electronic circuits.
Product Description
STMicroelectronics STPS2H100U Schottky Diode is a surface mount single diode in DO-214AA package designed to handle continuous forward currents of 2 A at a peak reverse voltage of 100 V. It features low forward voltage drop of 0.65 V, minimizing power losses during operation.
This diode supports a wide ambient operating temperature range from -65°C up to 175°C, making it suitable for demanding industrial and automotive applications. Its compact dimensions of 4.6 mm length, 3.95 mm width, and 2.45 mm height facilitate easy integration into space-critical printed circuit board layouts.
The diode's peak non-repetitive forward surge current rating of 75 A ensures protection against transient current spikes. With a low peak reverse leakage current of 1 μA, the device offers high efficiency in rectification and power conversions.
As a Schottky rectifier, the STPS2H100U offers fast switching performance combined with high reliability, suitable for use in power supplies, voltage clamping, and freewheeling applications in industrial, automotive, and electronic equipment sectors.
Surface mount package for automated assembly. High-temperature tolerance up to 175°C. Low forward voltage of 0.65 V enhances efficiency. 2 A forward current rating for moderate power needs. Compact DO-214AA form factor. Reliable single diode configuration with 2 pins.
Peak forward surge current capability of 75 A. Low leakage current for reduced standby power loss.
This diode is part of STMicroelectronics’ series of Schottky Barrier Diodes ranging from 2 A to 9 A, designed for demanding semiconductor applications in electronic manufacturing, power supply designs, and automotive safety systems.
Explore comprehensive technical documentation and related components in the Schottky diode category on EnvMart for advanced industrial electronics projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the STMicroelectronics STPS2H100U Schottky diode is 2 A.
This model has a peak reverse repetitive voltage rating of 100 V.
The maximum forward voltage drop of this diode is 0.65 V, which helps in ensuring efficient rectification.
The diode operates within a temperature range of -65°C to 175°C, making it suitable for various applications.
This diode is housed in a DO-214AA surface mount package, facilitating easy PCB integration.
The peak non-repetitive forward surge current rating of this model is 75 A, allowing it to handle transient current spikes effectively.
The dimensions of this diode are 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height.
This diode features a single configuration with 2 pins.
It is a Schottky rectifier type, optimized for fast switching and low forward drop.
The peak reverse current for the STPS2H100U is 1 μA, which helps minimize leakage losses.
This diode is suitable for power supply, automotive, and industrial electronic circuits due to its specifications.
The country of origin for this diode is India.
