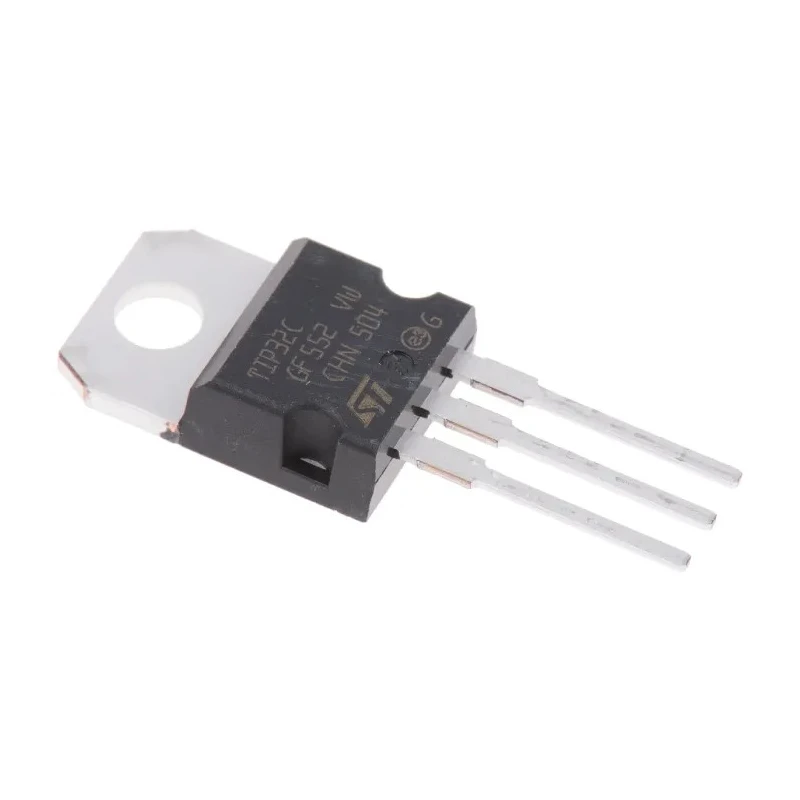

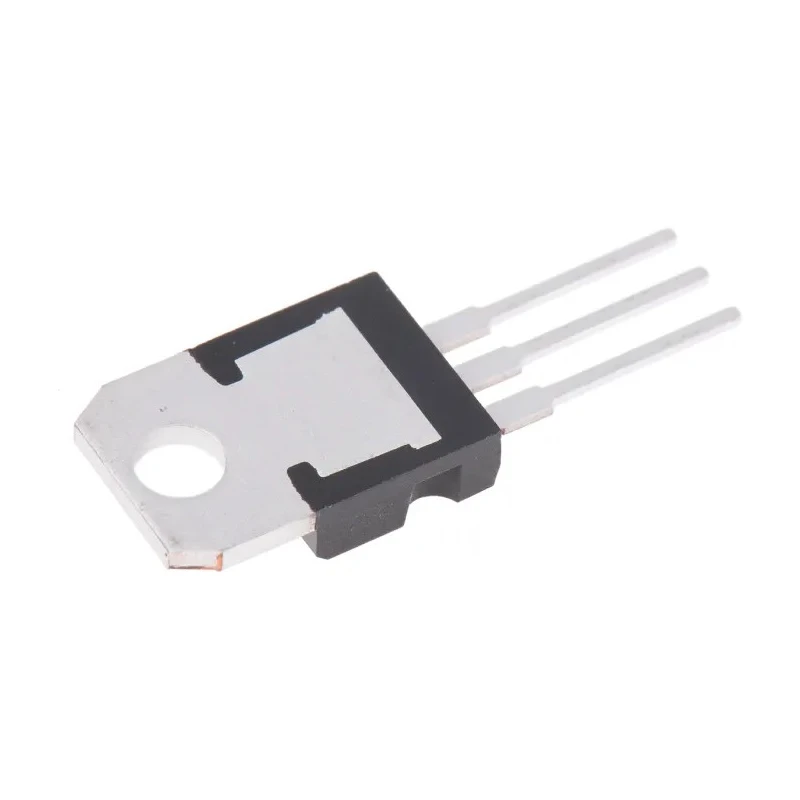

STMicroelectronics PNP Power Transistor, -3 A DC Collector Current, -100 V Collector Emitter Voltage, 3-Pin TO-220 TIP32C

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics PNP Power Transistor, -3 A DC Collector Current, -100 V Collector Emitter Voltage, 3-Pin TO-220 TIP32C

Name: STMicroelectronics PNP Power Transistor, -3 A DC Collector Current, -100 V Collector Emitter Voltage, 3-Pin TO-220 TIP32C
Brand: STMicroelectronics
SKU: 189913
Price: 0.5 USD
Availability: InStock



Category Bipolar Transistors Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	28.9mm
Length	10.4mm
Model	TIP32C
Width	4.6mm
Mount Type	Through Hole
Series	TIP32C
Maximum Operating Temperature	150°C
Package Type	TO-220
Minimum Operating Temperature	0°C
Pin Count	3
Maximum Collector Emitter Voltage Vceo	-100V
Minimum DC Current Gain hFE	10
Transistor Polarity	PNP
Maximum Emitter Base Voltage VEBO	5V
Maximum Collector Base Voltage VCBO	100V
Maximum Power Dissipation Pd	2W
Maximum DC Collector Current Idc	-3A
Transistor Configuration	Single
Transistor,Bipolar,PNP,TIP32CBrand	Bourns
Bourns TIP32C PNP Bipolar Transistor, 3 A, 100 V, 3-Pin TO-220Brand	Bourns

Key Features

This transistor supports up to 2 W maximum power dissipation.
The device has a through-hole mount with a TO-220 package.
It operates over a wide temperature range from 0°C to 150°C.
The minimum DC current gain (hFE) is 10, ensuring reliable signal amplification.
Pin count is 3 with a single transistor configuration.
Suitable for use in power control and switching applications.
The transistor polarity is PNP, compatible with bipolar transistor circuits.
Maximum emitter-base voltage is 5 V, allowing safe operation within limits.

Product Description

STMicroelectronics TIP32C is a PNP power transistor designed for industrial and electronic applications requiring efficient power switching and amplification.

This transistor features a maximum DC collector current of -3 A and a maximum collector-emitter voltage of -100 V, providing robust performance for various power electronics circuits.

The TO-220 package is suited for through-hole mounting, enabling easy integration into circuit boards while maintaining thermal management. The TIP32C supports a maximum power dissipation of 2 W, ensuring reliable operation under moderate load conditions.

Operating temperature ranges from 0°C to 150°C, making it suitable for demanding environments including industrial, automotive, and consumer electronics applications. The minimum DC current gain (hFE) of 10 guarantees sufficient amplification for switching and linear applications.

Its compact dimensions (Height: 28.9 mm, Length: 10.4 mm, Width: 4.6 mm) and 3-pin single transistor configuration allow straightforward circuit design and replacement. This transistor supports up to 2 W maximum power dissipation.

The device has a through-hole mount with a TO-220 package. It operates over a wide temperature range from 0°C to 150°C. The minimum DC current gain (hFE) is 10, ensuring reliable signal amplification. Pin count is 3 with a single transistor configuration.

Suitable for use in power control and switching applications. The transistor polarity is PNP, compatible with bipolar transistor circuits. Maximum emitter-base voltage is 5 V, allowing safe operation within limits. It features a robust construction with dimensions Height: 28.9 mm, Length: 10.4 mm, Width: 4.6 mm.

This product is ideal for industrial, electronic components, and semiconductor manufacturing industries, supporting applications such as power regulation, signal amplification, and switching circuits.
