| Country of Origin | China |
|---|---|
| Diameter | 1.85mm |
| Brand | Nexperia |
| Height | 1.85mm |
| Length | 4.25mm |
| Model | BAV20,113 |
| Width | 1.85mm |
| Mount Type | Through Hole |
| Series | BAV20 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-35 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 250mA |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 100nA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 9A |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 50ns |

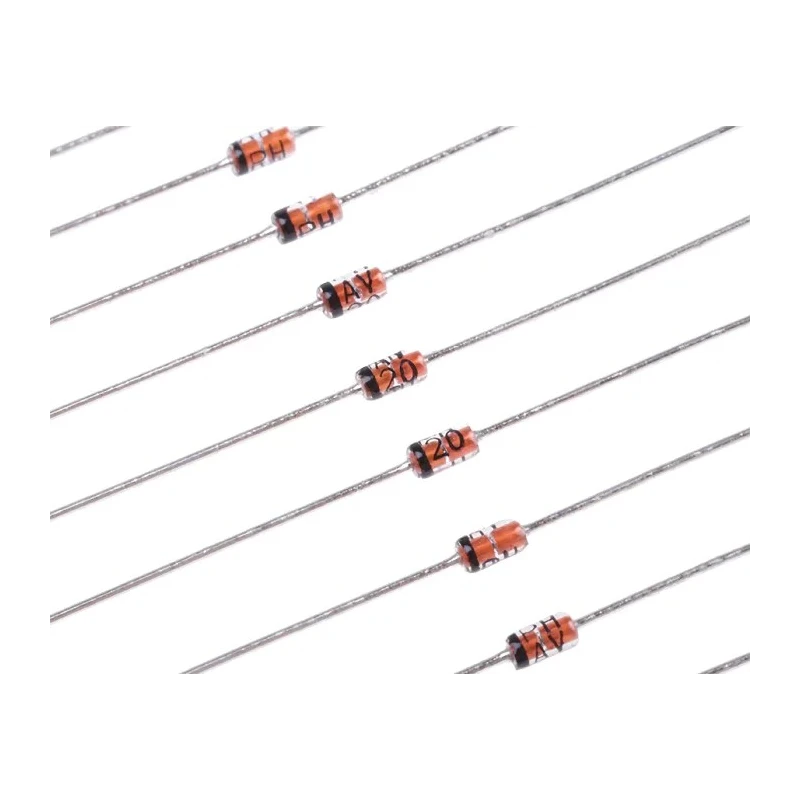

The Nexperia BAV20,113 is a general purpose diode designed for through hole mounting in a compact DO-35 package. It supports a maximum continuous forward current of 250 mA and a peak reverse repetitive voltage of 200 V, making it suitable for various electronic circuits requiring reliable switching and rectification performance.
This small signal diode features a single diode configuration with low leakage current and a peak reverse current of just 100 nA, ensuring minimal power loss during operation. The maximum forward voltage drop is 1.25 V, helping to reduce heat dissipation.
With a fast peak reverse recovery time of 50 ns, this diode enables high-speed switching, which is critical in modern electronic designs. It operates effectively over a wide temperature range from -65°C to 175°C, providing robust performance in demanding industrial and automotive environments. The diode is compliant with AEC-Q101 automotive standards, confirming its suitability for automotive applications.
Supports high density circuit designs with low leakage and high voltage tolerance. Small signal switching diode with a single diode configuration. Peak reverse current of 100 nA ensures efficient performance. Maximum forward voltage of 1.25 V reduces power losses.
Fast recovery time of 50 ns for switching efficiency. Wide operating temperature range from -65°C to 175°C. Automotive standard compliant (AEC-Q101). Compact DO-35 package with precise dimensions ensures fitment in tight spaces.
Ideal for general purpose rectifier and switching uses in industrial and automotive sectors. Manufactured in China ensuring international quality control.
This Nexperia diode is widely used in industrial electronics, automotive systems, power supply circuits, and discrete semiconductor applications where performance, reliability, and compact size are key requirements. It is a dependable component for enhancing circuit efficiency and durability.
