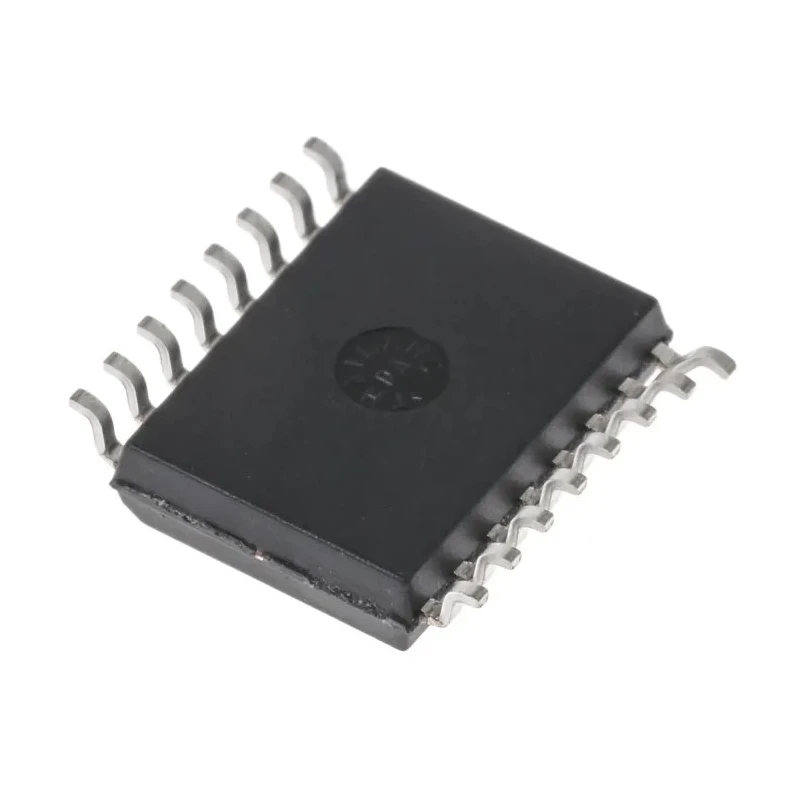

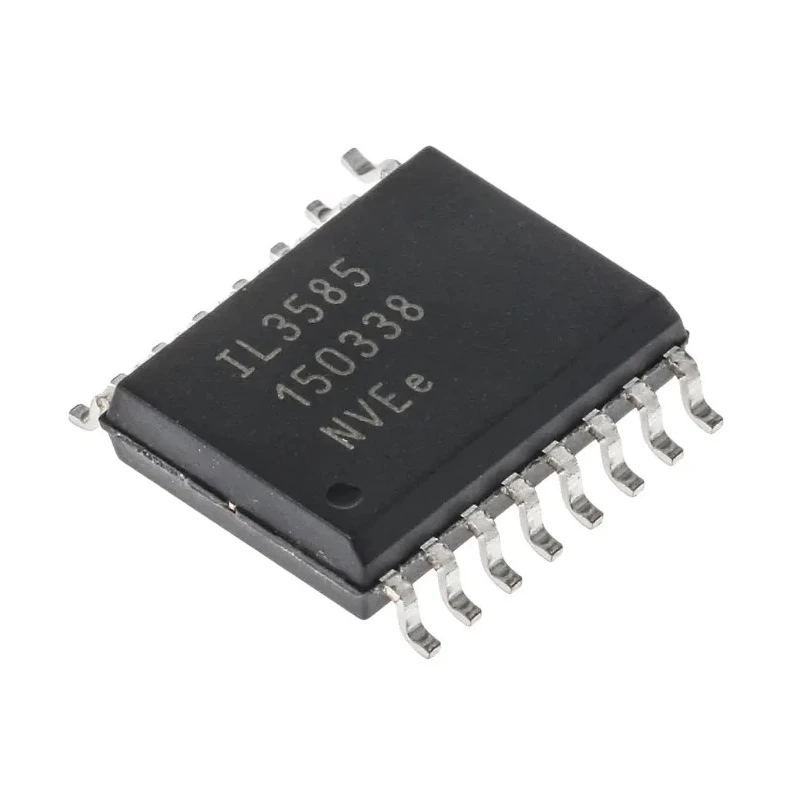

NVE Line Transceiver Digital Non-Inverting 16-Pin SOIC 3V-5V 60mA IL3585E

Free Delivery in India | Lowest Global Shipping Charges

NVE Line Transceiver Digital Non-Inverting 16-Pin SOIC 3V-5V 60mA IL3585E



Category Line Interface ICs Brand NVE Condition New

Specifications

Country of Origin	India
Brand	NVE
Height	1.58mm
Length	10mm
Model	IL3585E
Width	7.42mm
Mount Type	Surface
Output type	Digital
Series	IL3585
Input Type	Differential
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
IC Type	Line Transceiver IC
Pin Count	16
Maximum Supply Voltage	5V
Logic Family	CML
Logic Function	Bus Transceiver
Minimum Supply Voltage	3V
Maximum High Level Output Current	60mA
Maximum Propagation Delay Time @ CL	35ns
Supply Current	6mA

Key Features

This line transceiver supports digital output with a maximum high-level output current of 60mA.
The device features a propagation delay time of 35 nanoseconds at load capacitance.
It is surface-mounted in a 16-pin SOIC package measuring 10mm length, 7.42mm width, and 1.58mm height.
Operating temperature range is from -40°C to 85°C, suitable for industrial environments.
The supply current is low at 6mA ensuring efficient operation.
The device belongs to the CML logic family and has a bus transceiver logic function.
It is ideal for RS-485 line driving and receiving applications in digital communication interfaces.
This transceiver is non-inverting and utilizes differential input signals enhancing noise immunity.

Product Description

The NVE IL3585E line transceiver is a digital non-inverting bus transceiver IC designed for signal transmission and reception in differential bus systems. Packaged in a 16-pin SOIC surface-mount package, it operates efficiently with a supply voltage range of 3V to 5V.

Featuring a maximum output current of 60mA and a propagation delay time of 35ns, the IL3585E ensures reliable and rapid digital signal transmission. This device is built on the CML logic family, with differential input type and digital output type, providing high signal integrity in demanding environments.

Its operating temperature range from -40°C to 85°C makes it suitable for industrial and commercial electronic applications requiring robust thermal performance. The compact SOIC package with dimensions 10mm (length) x 7.42mm (width) x 1.58mm (height) facilitates automated surface mount assembly in high-volume production.

With low supply current of just 6mA, the IL3585E supports power-efficient designs.

This transceiver is primarily used in RS-485 line driver and receiver circuits, supporting isolating line transceiver applications in industrial communication, instrumentation, and control systems.

This line transceiver supports digital output with a maximum high-level output current of 60mA. The device features a propagation delay time of 35 nanoseconds at load capacitance. The package is a 16-pin SOIC surface mount type with compact dimensions.

Operating temperature range of -40°C to 85°C suits industrial-grade performance. The supply current is low at 6mA to enhance energy efficiency. The device belongs to the CML logic family and functions as a bus transceiver.

It is designed for differential input and non-inverting polarity operation. It is recommended for use in RS-485 communication and line interface applications. Explore the range of semiconductor Line Interface ICs for your electronic communication designs at EnvMart.
