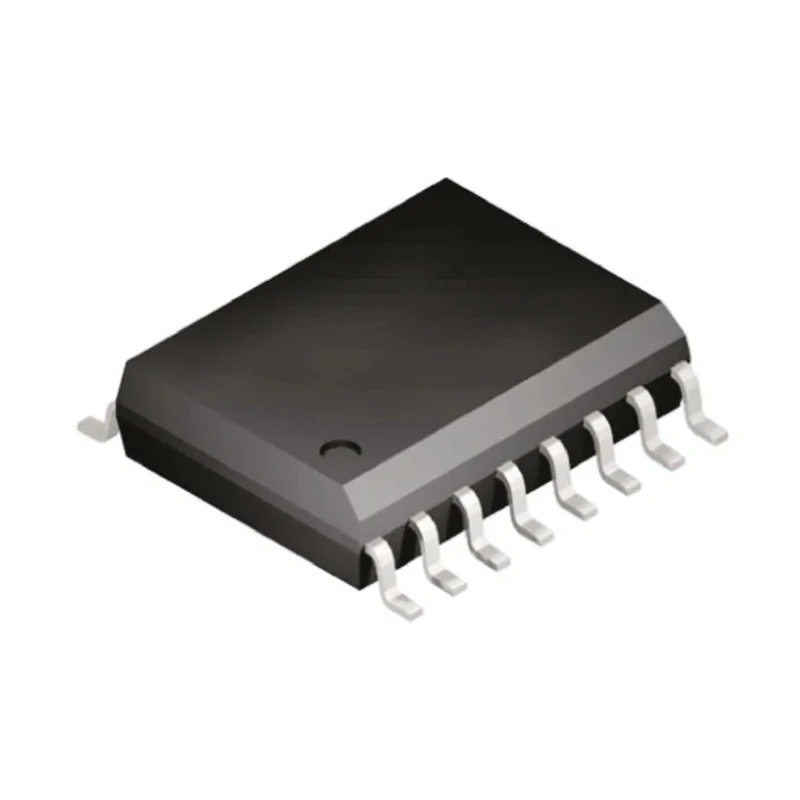

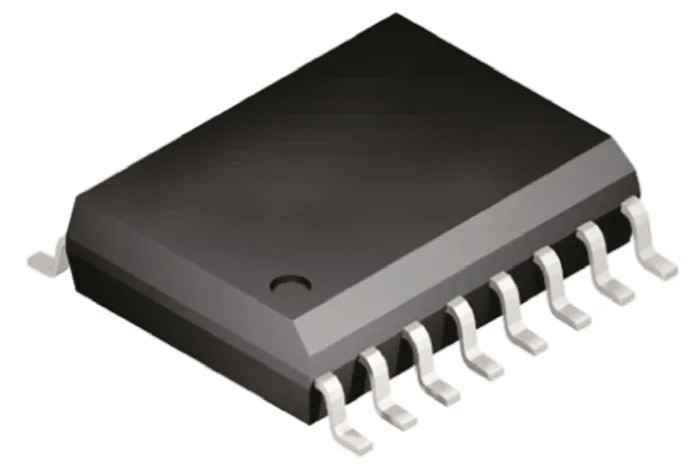

onsemi 16-Pin SOIC 5-Channel PWM Controller 200 kHz 40V Surface Mount TL494CDR2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.5mm |
| Length | 10mm |
| Model | TL494CDR2G |
| Width | 4mm |
| Mount Type | Surface |
| Maximum Duty Cycle | 50% |
| Series | TL |
| Output Current | 500mA |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Number of outputs | 5 |
| Output Voltage | 42V |
| Maximum Switching Frequency | 200kHz |
| Pin Count | 16 |
| Maximum Supply Voltage | 40V |
| Minimum Supply Voltage | 7V |
| Supply Current | 15mA |
| Start-up Supply Current | 7mA |
Key Features
- High efficiency pulse width modulation controller for power conversion circuits.
- Operates with a maximum switching frequency of 200 kHz for fast and precise control.
- Supports output voltage up to 42V and output current up to 500mA.
- Surface mount design with compact 16-pin SOIC package enhances PCB space utilization.
- Operating temperature range from 0°C to 70°C suitable for industrial environments.
- Low start-up supply current of 7mA and typical supply current of 15mA improve energy efficiency.
- Maximum duty cycle limited to 50% ensuring stable and accurate PWM control.
- Designed for use in DC-DC converters and power management applications.
Product Description
onsemi TL494CDR2G is a 16-pin surface mount pulse width modulation (PWM) controller designed for managing power in DC-DC converter applications. Featuring a 5-channel output, this SOIC packaged device operates at a maximum switching frequency of 200 kHz and supports supply voltages up to 40V, providing versatile performance for power management circuits.
The controller offers an output voltage capability of up to 42V and an output current capacity of 500mA, enabling effective modulation for industrial and electronic power supplies. Operating with a start-up supply current of only 7mA and a typical supply current of 15mA, it delivers energy-efficient control. Its maximum duty cycle capped at 50% ensures high stability during operation.
The device is built within compact dimensions (length 10mm, width 4mm, height 1.5mm), making it suitable for space-constrained PCB layouts in various industrial electronic assemblies. It functions reliably within an operating temperature range of 0°C to 70°C, meeting ambient conditions typical of industrial environments.
While not designed for automotive applications, the TL494CDR2G excels in controlling switching power supplies, DC-DC converters, and other power management systems in manufacturing, industrial controls, and electrical machinery sectors.
High efficiency PWM control enhances power conversion. 200 kHz maximum switching frequency supports fast response. Supports output voltage up to 42V for versatile applications. Surface mount 16-pin SOIC package for compact PCB integration.
Operating temperature range of 0°C to 70°C suited for industrial use. Low supply current reduces power consumption in idle state. Maximum 50% duty cycle allows precise modulation control. Compact size dimensions optimize PCB space usage.
Ideal for DC-DC power conversion and industrial electronics. Not compliant with automotive standards; for general industrial use. Explore the range of Power Management ICs at EnvMart to find compatible products and advanced solutions for your industrial electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TL494CDR2G operates at a maximum switching frequency of 200 kHz, allowing for fast and precise control in power management applications.
It features a total of 5 outputs, which can be utilized for managing multiple power channels in a system.
The dimensions of this PWM controller are 10mm in length, 4mm in width, and 1.5mm in height, suitable for compact PCB layouts.
The TL494CDR2G operates within a temperature range of 0°C to 70°C, which is suitable for industrial environments.
The maximum duty cycle is limited to 50%, ensuring stable and accurate PWM control during operation.
The start-up supply current for the TL494CDR2G is only 7mA, which helps improve energy efficiency during operation.
The typical supply current for this model is 15mA, contributing to its low power consumption characteristics.
This PWM controller supports a maximum supply voltage of 40V, making it suitable for various power management applications.
It comes in a 16-pin SOIC package, designed for surface mounting to enhance PCB space utilization.
The country of origin for the TL494CDR2G is India.
