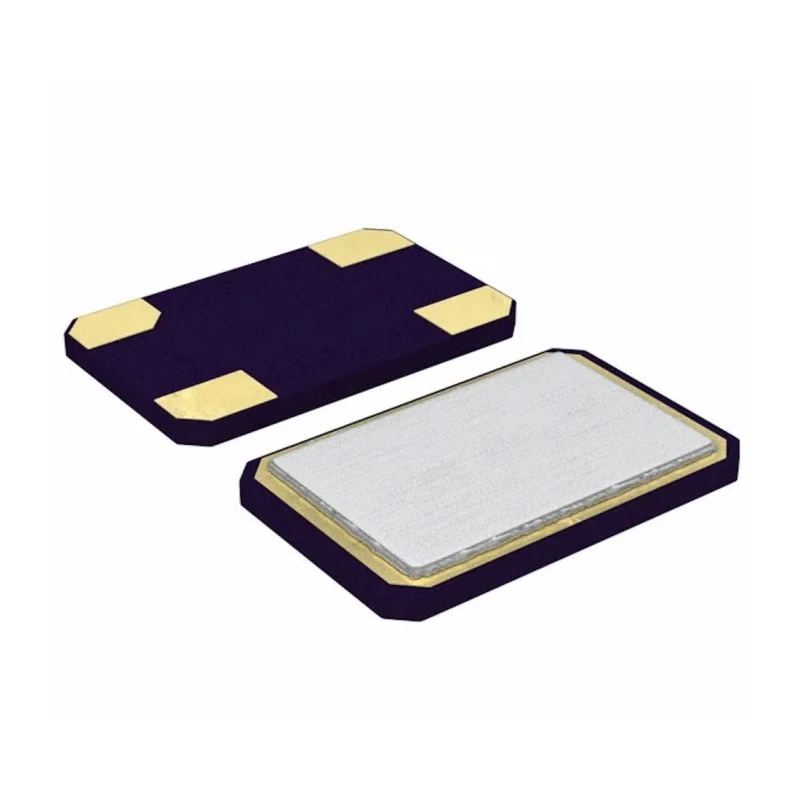

Abracon 26 MHz Crystal ±10 ppm Surface Mount 4-Pin Ceramic SMD Package ABM3B

Abracon ABM3B is a high precision 26 MHz crystal oscillator with ±10 ppm frequency tolerance, packaged in a ceramic surface mount case with 4 pins. Its robust design includes a metal lid for enhanced reliability and stability, making it ideal for demanding industrial and commercial electronic applications.

The crystal operates at a standard frequency of 26 MHz with a load capacitance of 10 pF, providing excellent frequency stability within ±10 ppm. The compact package measures 5 mm in length, 3.2 mm in width, and 1.1 mm in height, making it suitable for high density PCBs and space-constrained applications.

This surface mount crystal operates reliably across a temperature range of -10°C to 60°C, enabling usage in cellular telephones, pagers, PCMCIA, wireless communication devices, and test equipment. Its fundamental mode operation ensures consistent performance under various conditions.

Operates at 26 MHz frequency with ±10 ppm tolerance. Surface mount ceramic package with metal lid. Load capacitance of 10 pF enhances signal precision. Compact dimensions: 5 mm x 3.2 mm x 1.1 mm. Operating temperature range from -10°C to 60°C.

Complies with international QS 9000 and ISO 9001 quality standards. Suitable for a wide range of communications and test electronic devices. Non-automotive standard product made in China.

This Abracon crystal unit is engineered for industrial, communication, laboratory, and commercial applications, providing stability and precision in oscillation performance. The small footprint surface mount design facilitates easy assembly in modern electronic device manufacturing.
