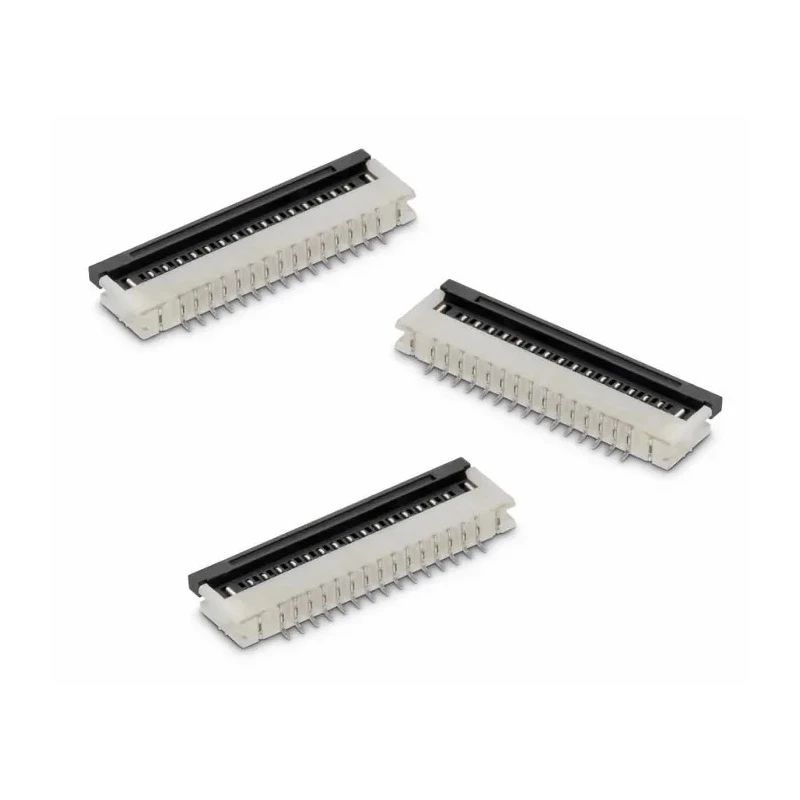

Wurth Elektronik WR-FPC 1 mm Pitch 8 Way Horizontal Female FPC Connector, Solder 686108148922
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100, 100V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Features phosphor bronze contact material ensuring good conductivity.
- Designed for surface mount with solder termination and bottom contact position.
- Incorporates a flip-lock hinge type actuator for reliable cable retention.
- Supports a current rating of 1A and voltage rating of 100V AC.
- Operates reliably between -40°C and 105°C temperature range.
- Connector housing is made from durable polyamide material.
- Contact plating is tin over nickel for corrosion resistance.
- Locking mechanism included for secure mating.
Product Description
Wurth Elektronik 686108148922 is an 8 way horizontal female FPC connector featuring a 1 mm pitch, designed for surface mount technology with solder termination and bottom contact style. It uses phosphor bronze contacts with tin over nickel plating housed in polyamide for durability and reliability.
This WR-FPC series FPC ZIF connector incorporates a hinged flip-lock actuator to secure the FPC/FFC cable, suitable for applications requiring low profile, secure connections such as small displays and keyboards in miniaturised electronic devices.
The connector supports up to 1 amp current at 100 volts AC and operates reliably within a temperature range of -40°C to 105°C. Its ZIF insertion force and locking mechanism ensure easy handling and stable connections without damage during assembly.
Typical industrial applications include electronic components manufacturing, assembly of portable devices, computing equipment, and consumer electronics where reliable space-saving connectors are essential.
Phosphor bronze contact material provides excellent electrical performance. Surface mount design with solder termination offers robust PCB mounting. Flip-lock hinge actuator secures connection for enhanced reliability. Rated for 1A current and maximum 100V AC voltage operation.
Polyamide housing enhances mechanical strength and temperature resistance. Tin over nickel plating prevents corrosion and ensures long service life. Zero insertion force mechanism reduces wear on contacts and cables. Works effectively across temperature range from -40°C to 105°C.
Single row, 8 contact configuration suitable for compact layouts. Set contains 1 piece of Wurth Elektronik WR-FPC 1 mm pitch 8 way horizontal female FPC Connector with solder termination. Explore EnvMart for a wide selection of electronic connectors and components suitable for industrial, laboratory, and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1A and a voltage rating of 100V AC.
It operates reliably within a temperature range of -40°C to 105°C.
The housing is made from polyamide, and the contact material is phosphor bronze with tin over nickel plating for corrosion resistance.
This unit features a solder termination type designed for surface mount applications.
It incorporates a hinged flip-lock actuator to secure the FPC/FFC cable, ensuring reliable connections.
The connector has 8 contacts arranged in a single row.
The pitch size of this connector is 1 mm.
This model is designed with a horizontal orientation.
Typical applications include electronic components manufacturing, portable devices assembly, computing equipment, and consumer electronics.
It features a zero insertion force (ZIF) mechanism, which reduces wear on contacts and cables during assembly.
The locking mechanism is designed to secure the mating connection, enhancing reliability during use.
The country of origin for this connector is China.
