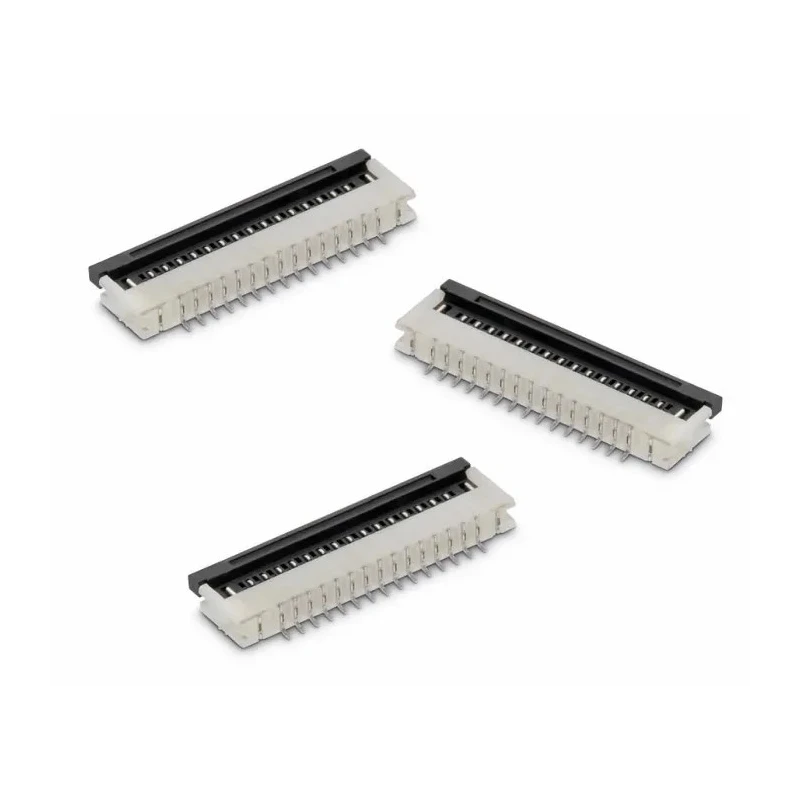

Wurth Elektronik WR-FPC 1 mm Pitch 4 Way Horizontal Female FPC Connector, Solder 686104148922
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100, 100V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- The connector supports 4 contacts with a pitch of 1 mm for compact device assembly.
- Surface mount type with bottom contact position ensures low profile and secure soldering.
- This FPC connector has a maximum operating temperature of 105°C and minimum operating temperature of -40°C.
- Supports a voltage rating of 100 V AC and current rating of 1 A.
- It includes a locking mechanism and zero insertion force (ZIF) for easy cable insertions and removals.
- The housing material is durable polyamide for reliable insulation and mechanical strength.
- Designed to meet demanding miniaturized electronic applications such as small displays or keyboards.
- Manufactured in China under the WR-FPC series.
Product Description
Wurth Elektronik 686104148922 is a 1 mm pitch 4 way horizontal female FPC Connector with solder termination designed for surface mount technology (SMT) applications. Featuring phosphor bronze contacts and tin-over-nickel plating, this connector ensures high reliability in electrical connections. The bottom contact position and hinged flip-lock actuator provide a ZIF (zero insertion force) mechanism that facilitates easy cable insertion and secure locking, ideal for sensitive electronics.
The polyamide housing offers robust mechanical strength and insulation, making it suitable for a wide range of miniaturised electronic applications such as interfacing small displays, keyboards, and other compact modules in consumer electronics, industrial controls, and telecommunications equipment.
Its electrical specifications include 1 A current rating, 100 V AC operating voltage, and the connector supports temperature ranges from -40°C to 105°C. This product is part of the WR-FPC series and is manufactured in China.
This 4 contact connector has a single row configuration with a pitch of 1.0 mm and features a solder retention design to secure it during the soldering process. It also includes a locking mechanism to enhance connection security and durability in various industrial and electronic manufacturing environments.
Supports 4 contacts at 1 mm pitch with bottom contact orientation. Zero Insertion Force (ZIF) flip-lock actuator for easy assembly and reliable connection. Rated for 1 A current and 100 V AC voltage. Wide operating temperature range from -40°C up to 105°C.
Constructed from phosphor bronze contacts with tin over nickel plating, housed in polyamide material. Surface mount type with solder termination and locking mechanism for secure PCB mounting. Ideal for applications requiring compact, high-density, and secure FPC connections.
Explore more high-quality connectors and FPC solutions under Wurth Elektronik at EnvMart to enhance your electronic assembly and design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this connector is 105°C.
This model has a current rating of 1 A.
It supports a voltage rating of 100 V AC.
The contacts are arranged with a pitch of 1 mm.
This connector features 4 contacts.
The housing is made of polyamide, while the contacts are made of phosphor bronze with tin-over-nickel plating.
It uses a solder termination type.
This model is designed for surface mount technology (SMT) applications.
The connector has a horizontal orientation.
Yes, it includes a locking mechanism for enhanced connection security.
The minimum operating temperature is -40°C.
It is designed for miniaturized electronic applications such as small displays and keyboards.
