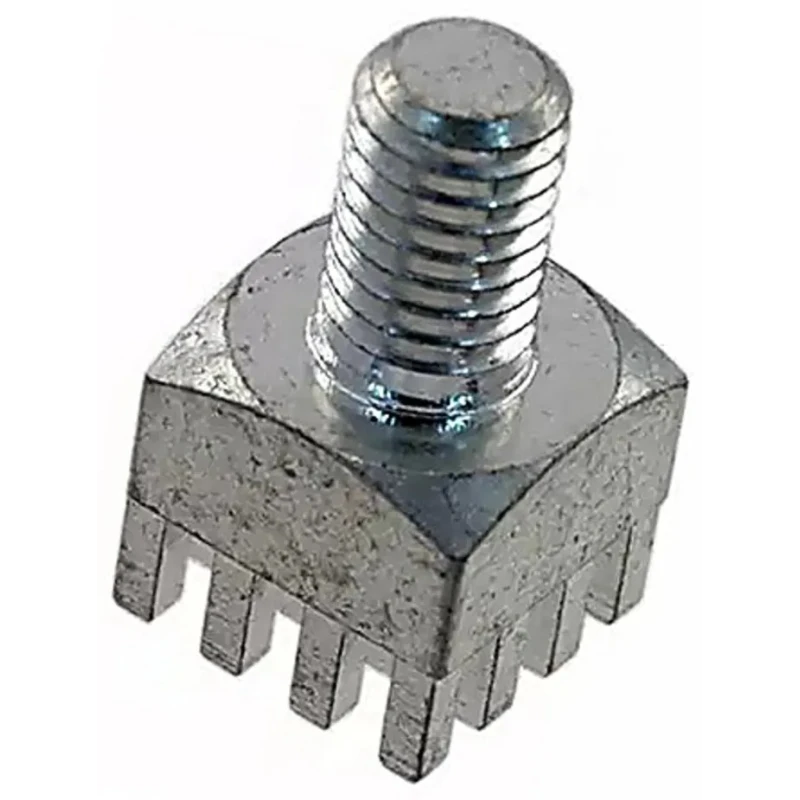

Wurth Elektronik Brass Screw Terminal, Vertical Orientation, 180A Current, 16 Legs, 4 Rows, M5 Screw Size, REDCUBE 7461383

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik Brass Screw Terminal, Vertical Orientation, 180A Current, 16 Legs, 4 Rows, M5 Screw Size, REDCUBE 7461383

Name: Wurth Elektronik Brass Screw Terminal, Vertical Orientation, 180A Current, 16 Legs, 4 Rows, M5 Screw Size, REDCUBE 7461383
Brand: Wurth Elektronik
SKU: 189059



Category Screw Terminals Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Germany
Screw Size	M5
Brand	Wurth Elektronik
Orientation	Vertical
Body Material	Brass
Current	180A
Model	7461383
Series	REDCUBE
Number of Legs	16
Number of Rows	4
Pitch	2.54mm
Body Plating	Tin

Key Features

Constructed with brass body material for durability and corrosion resistance.
Features tin plating to ensure reliable electrical conductivity.
Includes 16 legs arranged in 4 rows for versatile connections.
Supports M5 screw size for firm and secure fastening.
Employs press-fit technology providing a gas-tight and vibration-resistant PCB connection.
Eliminates the need for soldering, reducing thermal stress on PCBs.
Rugged construction suitable for industrial and automotive applications.
Part of the REDCUBE series, optimized for power element applications.

Product Description

Wurth Elektronik 7461383 Brass Screw Terminal is a high-quality vertical screw terminal designed to transfer currents up to 180A with excellent reliability and durability. It features a robust brass body with tin plating to enhance conductivity and resist environmental effects. The terminal's design includes 16 legs organized into 4 rows, making it adaptable for a variety of PCB mounting needs in power electronics.

This REDCUBE series component utilizes advanced press-fit mounting technology that ensures a secure, gas-tight electrical connection on the PCB. This method provides stronger retention forces than traditional soldered or screwed connections and significantly improves resistance to vibration and shock. The absence of soldering requirements reduces thermal loading on the PCB during assembly, leading to higher production yields and reliability.

These screw terminals are perfectly suited for demanding industrial, automotive, agricultural, medical, and renewable energy applications such as wind and solar power systems, battery management, power supply converters, and emergency power setups. The M5 screw size offers firm mechanical fastening, ensuring a stable power connection in diverse environments.

The sturdy construction and benefits of press-fit integration make these terminals ideal for cost-effective, reliable mass production in manufacturing processes. Constructed with brass material body and tin-plated surfaces for long-term performance.

Press-fit technology achieves a secure gas-tight and vibration-resistant connection to PCB. High current capacity enables transfer of up to approximately 300A in certain configurations. Vertical orientation with 16 legs arranged over 4 rows for flexible installation.

Compatible with M5 screw size for consistent and reliable fastening. Reduces assembly thermal stress by eliminating the need for soldering. Widely applicable across industries including industrial, automotive, agricultural, medical, and renewable energy.

Made in Germany, ensuring high manufacturing standards and quality.
