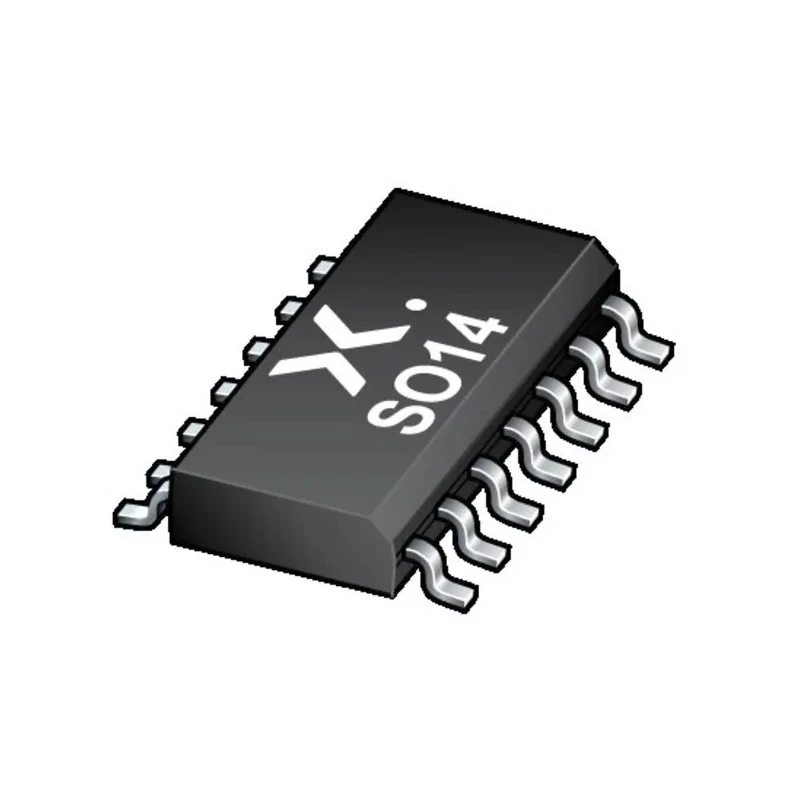

Nexperia Schmitt Trigger Input Inverter 6 Elements, 14-Pin SO-8 Package, 2V to 5.5V Supply Voltage 74AHC14D,118

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Schmitt Trigger Input Inverter 6 Elements, 14-Pin SO-8 Package, 2V to 5.5V Supply Voltage 74AHC14D,118

Name: Nexperia Schmitt Trigger Input Inverter 6 Elements, 14-Pin SO-8 Package, 2V to 5.5V Supply Voltage 74AHC14D,118
Brand: Nexperia
SKU: 100022
Price: 0.2 USD
Availability: InStock



Category Logic ICs Brand Nexperia Condition New

Specifications

Country of Origin	Thailand
Brand	Nexperia
Height	1.45mm
Length	8.75mm
Model	74AHC14D,118
Width	4mm
Mount Type	Surface
Output type	Inverting
Series	74AHC14
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	SO-8
Minimum Operating Temperature	-40°C
Pin Count	14
Number of Elements per Chip	6
Maximum Supply Voltage	5.5V
Logic Family	74AHC
Logic Function	Inverting Buffer
Minimum Supply Voltage	2V
Maximum High Level Output Current	-8mA
Maximum Propagation Delay Time @ CL	20.5ns
Maximum Low Level Output Current	8mA
For 74AHC14	CMOS level
For 74AHCT14	TTL level

Key Features

Contains six inverting buffers with Schmitt-trigger action for signal conditioning.
Compatible with mixed 3.3 V and 5.0 V applications due to wide supply voltage range.
Features maximum propagation delay time of 20.5ns for efficient switching performance.
Implements input hysteresis to prevent multiple switching with slow input edges.
Surface mount SO-8 package with 14 pins for compact PCB integration.
Operating temperature range from -40°C to 125°C ensuring reliable performance.
Maximum supply voltage of 5.5 V suitable for standard CMOS logic systems.
Input type CMOS with output type inverting for signal inversion needs.

Product Description

Nexperia 74AHC14D,118 Schmitt Trigger Input Inverter is a high-speed silicon-gate CMOS logic IC designed for robust signal conditioning and conversion applications. It contains six inverting buffer elements, each equipped with Schmitt-trigger inputs that provide hysteresis to clean up noisy or slow input signals, thus producing stable digital output waveforms.

This 14-pin SO-8 surface mount device operates with supply voltages ranging from 2 V to 5.5 V, making it ideal for mixed 3.3 V and 5 V systems. The device supports a maximum propagation delay time of 20.5 nanoseconds under typical load conditions, ensuring responsive and precise switching performance.

The 74AHC14D offers maximum output currents of -8 mA (high) and 8 mA (low) and accepts input voltages exceeding VCC. It functions over a wide temperature range from -40°C to +125°C, suitable for industrial and commercial electronics applications.

This logic inverter is useful for interfaces between analog and digital environments, converting sine waves to square waves, and increasing noise immunity in complex PCB layouts. It also serves well in relaxation oscillator circuits and signal reshaping tasks in laboratory, industrial, and manufacturing settings.

Six inverting buffers with Schmitt-trigger inputs for signal conditioning. Wide operating voltage range from 2 V to 5.5 V for versatile applications. High-speed propagation delay of 20.5 nanoseconds. Input hysteresis prevents false switching on slow or noisy inputs.

Compact SO-8 surface mount package with 14 pins. Robust operation from -40°C to 125°C temperature range. Supports CMOS input levels with open drain output options available. Manufactured with high reliability in Thailand.

Suitable for mixed 3.3 V and 5 V digital logic systems. Ideal for industrial, laboratory, and electronic circuit design uses. Settle with Nexperia’s trusted semiconductor quality in your electronic designs for enhanced performance and reliability. Explore a wide selection of Logic ICs at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model operates with a supply voltage range from 2 V to 5.5 V, making it suitable for mixed 3.3 V and 5 V applications.

The maximum propagation delay time for the 74AHC14D,118 is 20.5 nanoseconds under typical load conditions, ensuring efficient switching performance.

This unit contains six inverting buffers, each equipped with Schmitt-trigger inputs for effective signal conditioning.

It operates reliably over a temperature range from -40°C to +125°C, suitable for various industrial and commercial applications.

This model is housed in a compact SO-8 surface mount package with 14 pins, facilitating easy integration into PCBs.

The output type of this logic IC is inverting, designed for signal inversion needs in various applications.

It supports CMOS input levels, which allows for compatibility with a range of digital logic systems.

The maximum high-level output current is -8 mA, while the maximum low-level output current is 8 mA.

This model is useful for interfaces between analog and digital environments, converting sine waves to square waves, and enhancing noise immunity in complex PCB layouts.

The dimensions of this model are 8.75 mm in length, 4 mm in width, and 1.45 mm in height.

It belongs to the 74AHC logic family, which is designed for high-speed and low-power applications.

This model is manufactured in Thailand, ensuring quality in production.
