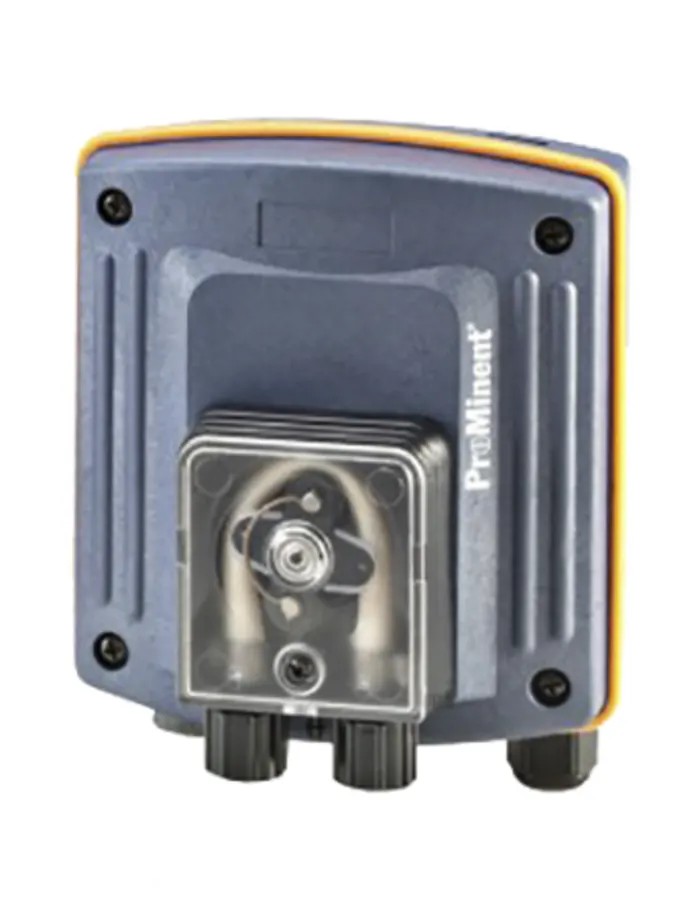

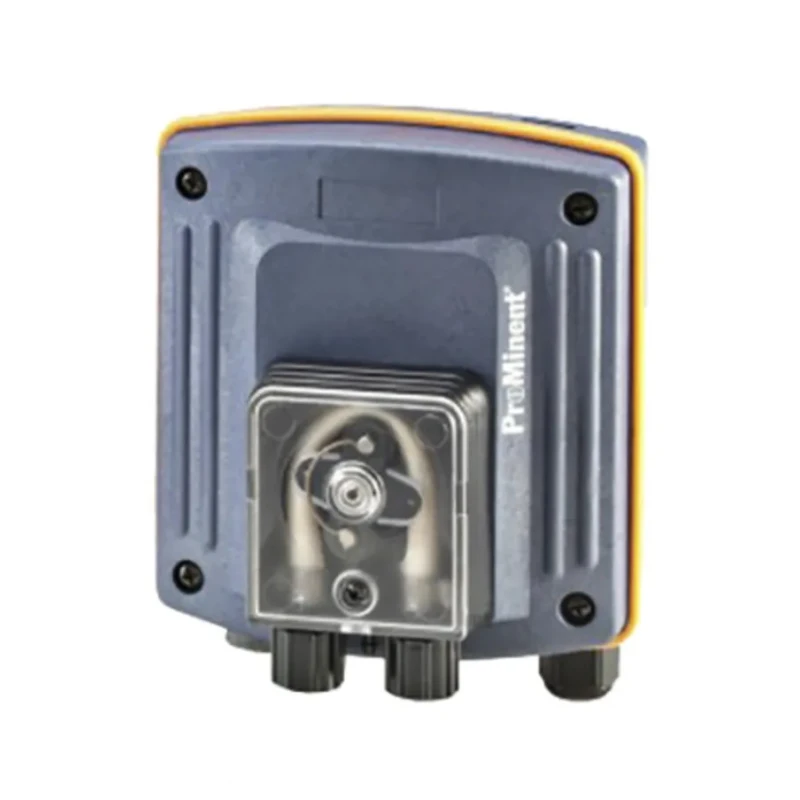

ProMinent Peristaltic Electric Positive Displacement Pump 0.8L/h 1.5 bar 230V DF2A0208P00A10W1

ProMinent DF2A0208P00A10W1 Peristaltic Electric Positive Displacement Pump is engineered for precise dispensing, metering, and general fluid transfer applications requiring accuracy and reliability. With a maximum flow rate of 0.8 liters per hour and maximum operating pressure of 1.5 bar, this 230V electric-driven pump is designed for a broad range of industrial, laboratory, and manufacturing processes.

The pump uses a rotor to compress the hose, providing smooth, valve-less fluid movement which prevents backflow and maintains chemical purity. The spring-loaded rollers ensure consistent pressure on the PharMed hose, delivering accurate flow control and long service life. Its virtually silent operation and IP65-rated impact and chemical resistant housing make it highly reliable in demanding environments.

This model features 6x4mm tube inlet and outlet connections and is suitable for dispensing sensitive fluids like acids, adhesives, cosmetics, and nutrient supplies, commonly used in pharmaceutical production, ultrafiltration, and cell culture fermentation processes. The pump supports a suction head of 4 mWC and inlet head of 3 mWC, facilitating efficient fluid transfer.

Certified to EHEDG Sigma hygienic pump standards, the DF2a series pump ensures compliance in hygiene-critical applications. Its wall-mount capability and supplied 2m mains cable enhance installation flexibility. Maximum fluid temperature rating is 20°C, making it ideal for low temperature chemical dosing scenarios.

Virtually silent operation with simple installation. Self-priming against up to 1.5 bar pressure. IP65 rated for protection against dust and water exposure. Impact and chemical resistant housing for durability. Equipped with 2m open-ended mains lead for power supply.

Spring-loaded rollers maintain consistent flow and accuracy. Suitable for diverse industrial and laboratory applications. Approvals include EHEDG hygienic standards for safety and compliance. Compact, wall-mounted design saves space.

PharMed hose compatible inlet/outlet tubes.

Explore the full range of ProMinent Positive Displacement Pumps and accessories at EnvMart for reliable fluid control solutions tailored to pharmaceutical, chemical, and manufacturing industries.
