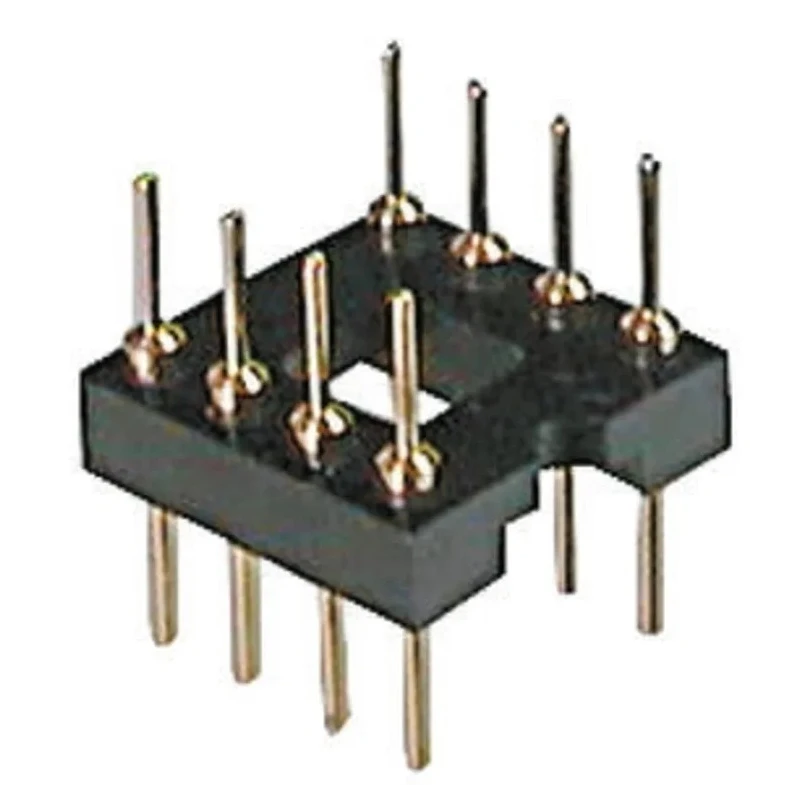

ASSMANN WSW Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter, DIP to DIP AR 20-ST/T

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter, DIP to DIP AR 20-ST/T

Name: ASSMANN WSW Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter, DIP to DIP AR 20-ST/T
Brand: ASSMANN WSW
SKU: 208600



Category IC Socket Adapter Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	100V ac
Brand	ASSMANN WSW
Orientation	Straight
Current	3A
Model	AR 20-ST/T
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Pitch	2.54mm
Contact Plating	Gold over Nickel
Connection Gender A	Male
Number of Contacts A	20
Connection A	DIP

Key Features

This IC Socket Adapter supports 20 contacts on both sides for secure connectivity.
The contact plating uses gold over nickel to ensure reliable conductivity and corrosion resistance.
It operates at a current rating of 3A and voltage rating of 100V AC.
Mount type is through hole with a straight orientation, designed for DIP connections.
The housing is made from durable polybutylene terephthalate material for mechanical stability.
Contact material is brass providing excellent electrical performance.
This Adapter does not have any specific standards or approvals listed.
Origin of manufacture is China.

Product Description

ASSMANN WSW AR 20-ST/T is a high-quality IC Socket Adapter designed for through hole mounting and straight orientation, featuring a 2.54 mm pitch suitable for DIP to DIP connection in electronic circuit assemblies. It ensures secure and reliable contact with 20 pins on both sides, making it ideal for prototyping and production circuit boards.

The contacts are plated with gold over nickel, enhancing durability and preventing oxidation to maintain signal integrity. The brass contact material offers excellent electrical characteristics, while the polybutylene terephthalate housing provides mechanical strength and thermal stability.

This IC Socket Adapter supports a maximum current of 3A and voltage of 100V AC, suitable for various industrial and commercial electronic applications. It does not carry specific industry standards or approvals but is manufactured to stringent quality measures.

Among its applications, this adapter is commonly used in electronics manufacturing, development, testing, and repair environments to facilitate chip insertion and removal with ease and reliability. It supports design flexibility in PCB layouts requiring DIP socket interfaces.

The product is manufactured in China and is supplied new, ensuring quality and performance standards are met for industrial use. This IC Socket Adapter features 20 contact pins for both connection sides. Gold over nickel contact plating ensures corrosion resistance and conductivity.

Supports 3A current and 100V AC voltage ratings. Constructed with brass contacts and polybutylene terephthalate housing material. Mount type is through hole with straight orientation for DIP compatibility. No specific standards or certifications are indicated for this product.

Manufactured in China. EnvMart offers this ASSMANN WSW IC Socket Adapter for industrial and electronics sectors requiring reliable DIP to DIP connectivity adapters.
