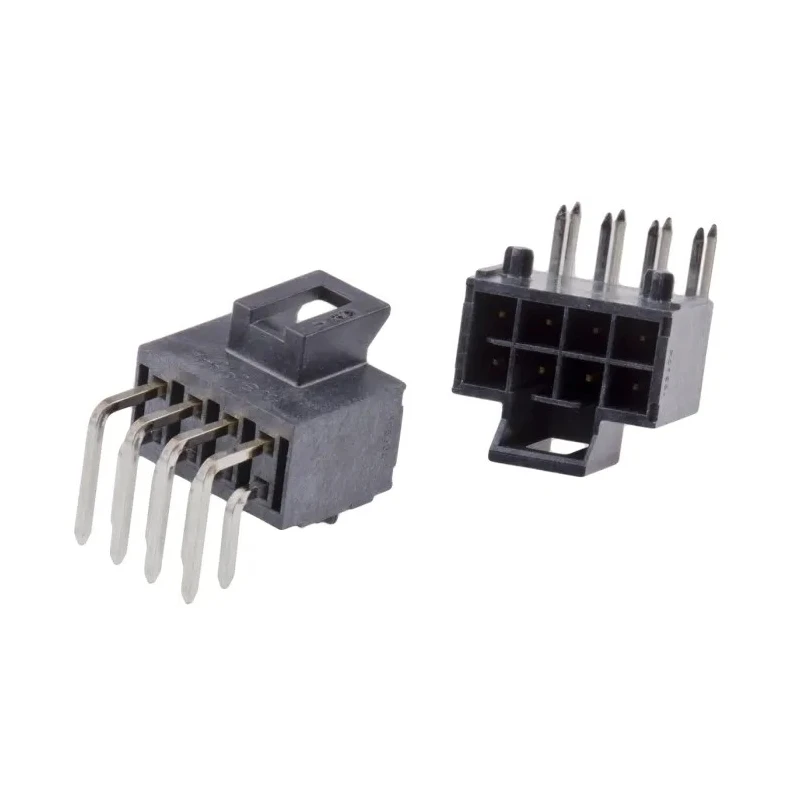

Molex Nano-Fit Series Right Angle Through Hole PCB Header 8 Contact 2.5 mm Pitch 2 Row Shrouded 105314-1208

The Molex 105314-1208 is a Nano-Fit Series Right Angle Through Hole PCB Header designed for wire-to-board connections with a compact footprint that saves up to 69% PCB space. Featuring 8 contacts arranged in 2 rows with a 2.5 mm pitch, this shrouded header ensures full electrical isolation between contacts to prevent arcing and shorting risks.

Manufactured with brass contacts plated with gold, the header supports a current rating of 6.5A and a voltage rating of 300V, making it suitable for moderate power applications. It operates reliably within a temperature range of -40°C to 105°C. The housing is made of durable Liquid Crystal Polymer that withstands reflow solder temperatures up to 260°C, allowing for efficient assembly processes.

This header incorporates scoop proof contacts that protect against damage during mating, a positive locking mechanism providing secure connection with tactile and audible feedback, and polarization and keying to prevent incorrect mating and installation errors.

Its through hole mount and right angle orientation make it ideal for space-constrained designs requiring reliable wire-to-board connections. Typical applications include consumer appliances such as refrigerators and washers, telecommunications devices including servers and hubs, automotive interior lighting and appliances, aerospace and defense equipment, industrial food and beverage machinery, and medical patient care devices.

Compact size and small footprint achieve PCB space savings of up to 69%. Fully isolated contacts prevent electrical arcing and damage. Scoop proof design protects contacts from misalignment damage. Positive locking with audible click and tactile feedback ensures secure mating.

Polarization and keying features minimize installation errors. Liquid Crystal Polymer housing enables high-temperature reflow soldering. Supports 6.5A current and 300V voltage ratings. Operating temperature range of -40°C to 105°C suits a variety of conditions.

Right angle through hole mount for versatile PCB layout.

This Molex Nano-Fit Series PCB Header delivers a reliable, space-efficient, and secure wire-to-board connection solution suitable for demanding industrial, commercial, and medical applications. Browse the Electronics Components category on EnvMart for compatible connectors and PCB accessories.
