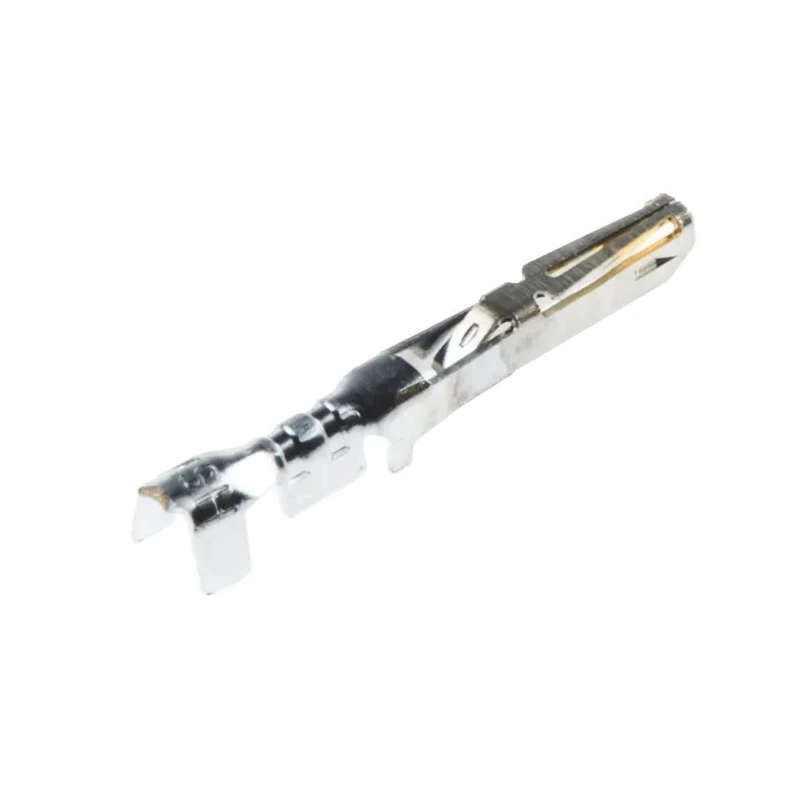

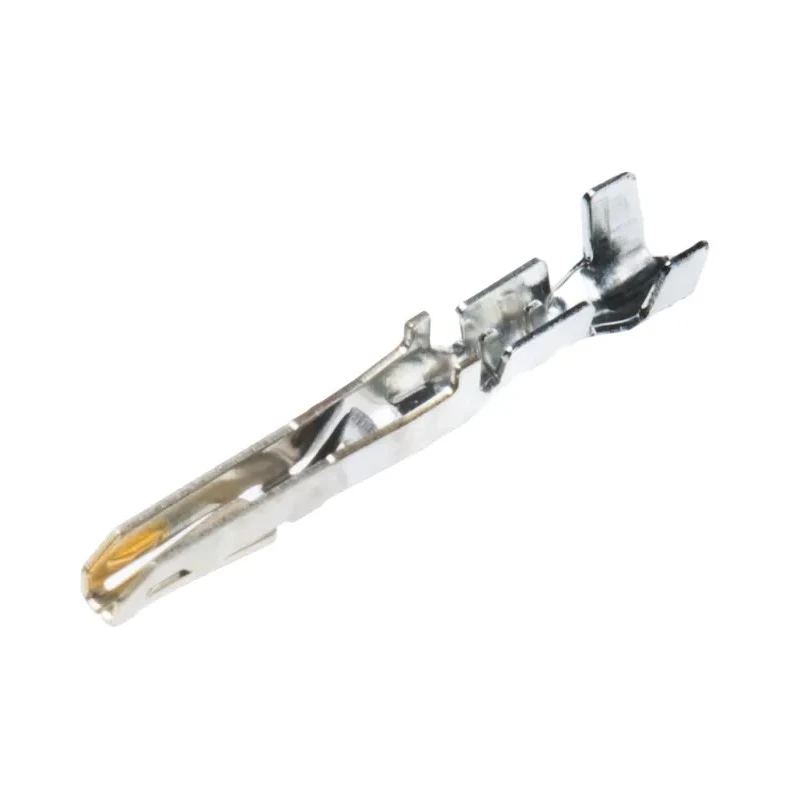

Molex 105300 Series Female Crimp Terminal 26-24 AWG Gold-Plated Copper Alloy Contact 6A Current 105300-1200
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Current | 6A |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | 105300 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Nano-Fit Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 24AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Features gold-plated contacts ensuring maximum electrical conductivity and corrosion resistance.
- Designed with copper alloy contact material for durability and consistent conductivity.
- Includes a flame-retardant housing to enhance safety and reduce fire risks.
- Accepts wire sizes from 26 AWG (minimum) to 24 AWG (maximum) for versatile usage.
- Maximum contact resistance of 10 milliohms ensures low electrical losses.
- Operates reliably from -40°C to 105°C, suitable for various industrial environments.
- Termination type is crimp, compatible with Nano-Fit 2.5 mm crimp receptacle housings.
- Complies with ELV Directive 2000/53/EC and RoHS Directive 2011/65/EU standards for environmental and safety compliance.
Product Description
The Molex 105300-1200 Female Crimp Terminal is engineered for use with Nano-Fit 2.5 mm crimp receptacle housings, accommodating wire sizes from 26 AWG minimum to 24 AWG maximum. This terminal features a high-quality copper alloy contact material with gold plating, which provides excellent electrical conductivity and resistance to corrosion, thus ensuring long-lasting reliable connections.
Its four-point contact interface ensures continuity of current flow even if one contact degrades, enhancing device reliability and lifespan. The flame-retardant housing adds an essential safety layer by minimizing the risk of fire propagation in electrical assemblies. Designed to operate within a temperature range of -40°C to 105°C, this terminal is suitable for demanding industrial, medical, aerospace, and lighting system applications.
The crimp termination type provides a secure mechanical and electrical connection, while the low mating force of 3N reduces operator fatigue during assembly. Retention tangs and contact ribs further stabilize the connection, preventing accidental disconnection under vibration or movement.
Meeting stringent environmental directives such as ELV Directive 2000/53/EC and RoHS Directive 2011/65/EU, this terminal is an excellent choice for environmentally conscious engineering projects. Applications include aerospace, hospitals, industrial networking hubs, and lighting systems requiring dependable and safe wire-to-board connections.
Gold-plated contacts provide maximum electrical flow and corrosion resistance. Copper alloy contact material ensures durable and efficient conductivity. Flame-retardant housing enhances safety by reducing fire risks. Supports wire sizes from 26 AWG to 24 AWG for application flexibility.
Low mating force reduces assembly fatigue and improves operational ease. Compliance with environmental and safety standards ensures reliable use. Retention tangs and contact ribs maintain stable and secure connections.
This Molex 105300-1200 Crimp Terminal is ideal for industrial, laboratory, medical, aerospace, and commercial electrical applications. Browse the Electronics Components and Crimp Contacts categories on EnvMart for compatible connectors and accessories designed for high quality and longevity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this crimp terminal is 6A.
This model accommodates wire sizes from 26 AWG (minimum) to 24 AWG (maximum).
It operates reliably within a temperature range of -40°C to 105°C.
The termination type for this terminal is crimp, designed for secure mechanical and electrical connections.
The contact material is a copper alloy, and the contacts are gold-plated for enhanced conductivity and corrosion resistance.
Yes, it complies with the ELV Directive 2000/53/EC and RoHS Directive 2011/65/EU for environmental and safety compliance.
The maximum contact resistance is 10 milliohms, ensuring low electrical losses.
It is compatible with Nano-Fit 2.5 mm crimp receptacle housings.
The terminal includes a flame-retardant housing that enhances safety by reducing fire risks.
It features retention tangs and contact ribs that stabilize the connection and prevent accidental disconnection under vibration or movement.
This terminal is suitable for various applications including industrial, medical, aerospace, and lighting systems.
This crimp terminal is female gendered, designed for use in compatible assemblies.
