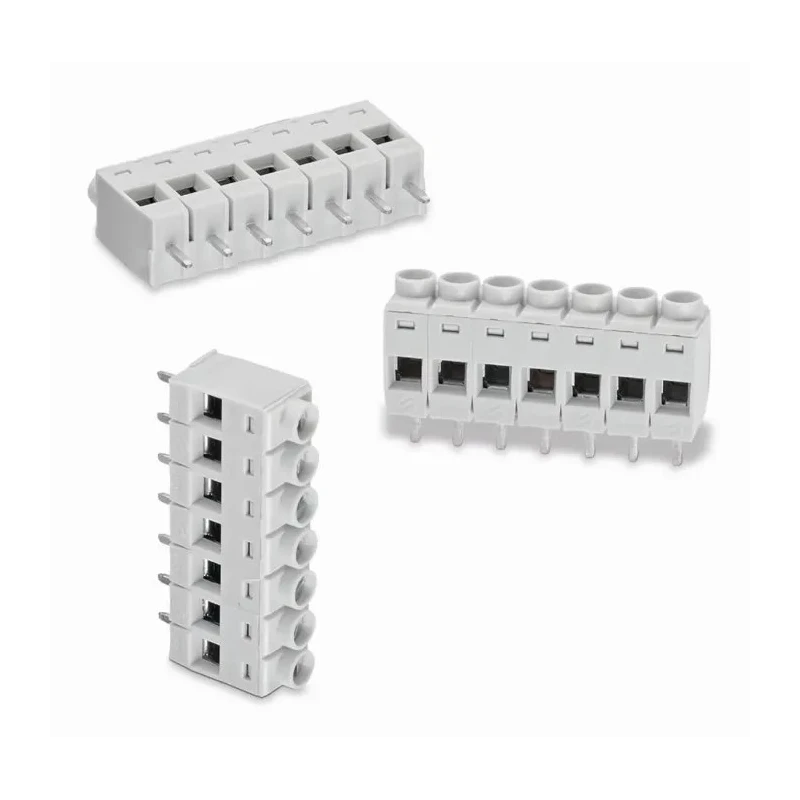

Wurth Elektronik 4-Contact 5 mm Pitch Through Hole 1 Row PCB Terminal Block 450V AC 22A 691131710004
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 450V ac |
| Brand | Wurth Elektronik |
| Colour | Grey |
| Orientation | Horizontal |
| Current | 22A |
| Length | 20mm |
| Depth | 15.5mm |
| Width | 8.5mm |
| Mount Type | Through Hole |
| Series | 1317 |
| Number of Rows | 1 |
| Pitch | 5mm |
| Standards/Approvals | cULus, RoHS, VDE |
| Number of Contacts | 4 |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 3.31mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 12AWG |
Key Features
- The terminal block features a pressure clamp system with an M2.5 screw for secure wire connection.
- Constructed from grey UL94-V0 polycarbonate housing, ensuring flame retardance and durability.
- Supports horizontal wire entry with wire sizes ranging from 30 AWG to 12 AWG (0.05 to 3.31 mm²).
- Compact dimensions of 20 mm length, 8.5 mm width, and 15.5 mm depth facilitate PCB mounting.
- Complies with standards including cULus, RoHS, and VDE for safety and environmental regulations.
- Suitable for industrial and electronic applications requiring reliable PCB terminations.
- Part of the 1317 series known for quality and robust terminal connections.
Product Description
Wurth Elektronik 691131710004 PCB Terminal Block is a 4-contact connector designed for PCB mounting, featuring a 5 mm pitch and through-hole mount type.
This terminal block utilizes a pressure clamp system with M2.5 screws and zinc plated steel clamps to ensure reliable and secure conductor connections. The housing is made from grey UL94-V0 rated polycarbonate, offering excellent flame retardance and mechanical stability.
The terminal block accepts wire sizes from 30 AWG to 12 AWG (0.05 mm² to 3.31 mm²) with a horizontal orientation, making it suitable for compact printed circuit board layouts. Its compact size measures 20 mm in length, 8.5 mm in width, and 15.5 mm in depth.
This product supports an electrical rating of 450V AC voltage and 22A current, compliant with safety standards such as cULus, RoHS, and VDE, ensuring suitability for industrial, electronic components, power connectors, and PCB terminal applications.
The terminal block features a pressure clamp system with an M2.5 screw for secure wire connection. Constructed from grey UL94-V0 polycarbonate housing, ensuring flame retardance and durability. Supports horizontal wire entry with wire sizes ranging from 30 AWG to 12 AWG (0.05 to 3.31 mm²).
Compact dimensions of 20 mm length, 8.5 mm width, and 15.5 mm depth facilitate PCB mounting. Complies with standards including cULus, RoHS, and VDE for safety and environmental regulations. Suitable for industrial and electronic applications requiring reliable PCB terminations.
Part of the 1317 series known for quality and robust terminal connections.
This terminal block is ideal for demanding environments in electronics manufacturing, automation, and power supply systems. It offers robust mechanical and electrical performance required in industrial and laboratory settings.
Explore more PCB Terminal Blocks and connectors at EnvMart to find compatible products suited for your industrial and electronics assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block has a voltage rating of 450V AC and a current rating of 22A.
It supports wire sizes ranging from 30 AWG to 12 AWG, which corresponds to 0.05 mm² to 3.31 mm².
The terminal block measures 20 mm in length, 8.5 mm in width, and 15.5 mm in depth.
This model features a through-hole mount type, suitable for PCB mounting applications.
The housing is constructed from grey UL94-V0 rated polycarbonate, ensuring flame retardance and mechanical stability.
It features 4 contacts for secure electrical connections.
It complies with cULus, RoHS, and VDE standards for safety and environmental regulations.
The terminal block supports horizontal wire entry, facilitating compact PCB layouts.
It is part of the 1317 series, known for quality and robust terminal connections.
It utilizes an M2.5 screw for secure wire connections within the pressure clamp system.
It is suitable for industrial and electronic applications requiring reliable PCB terminations.
The country of origin for this terminal block is India.
