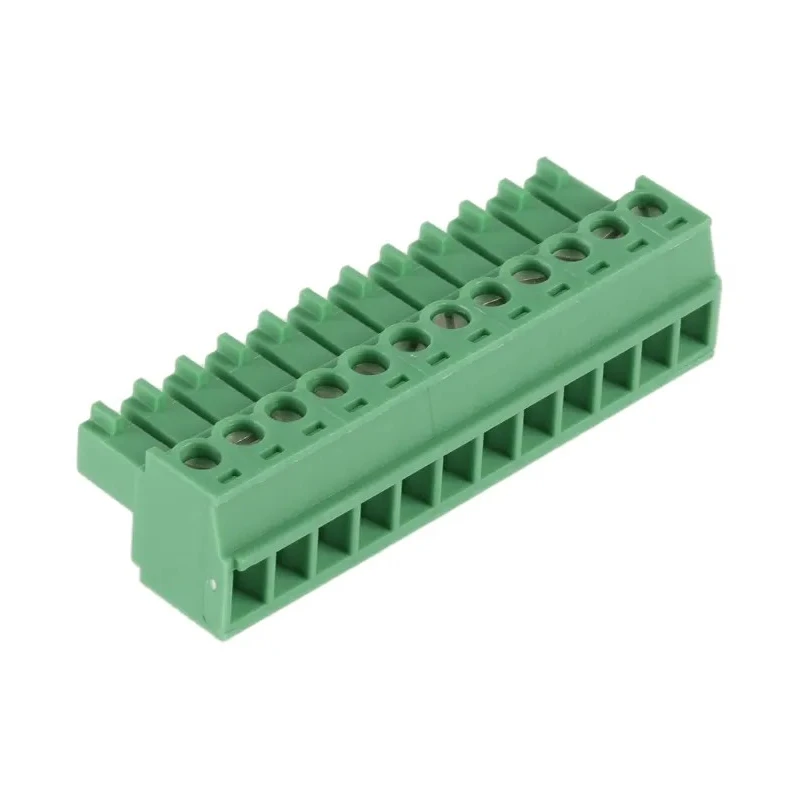

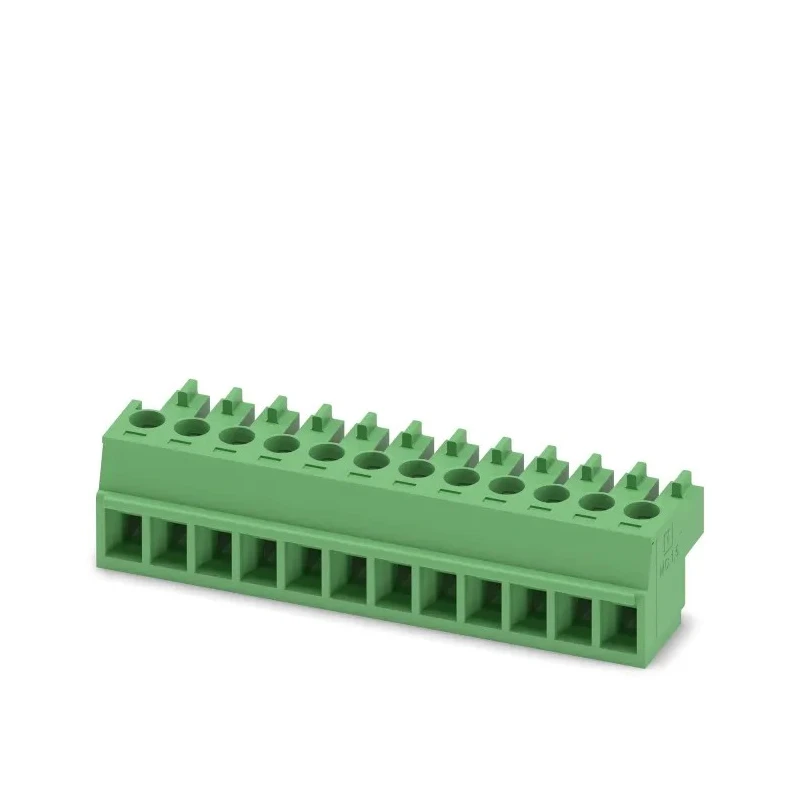

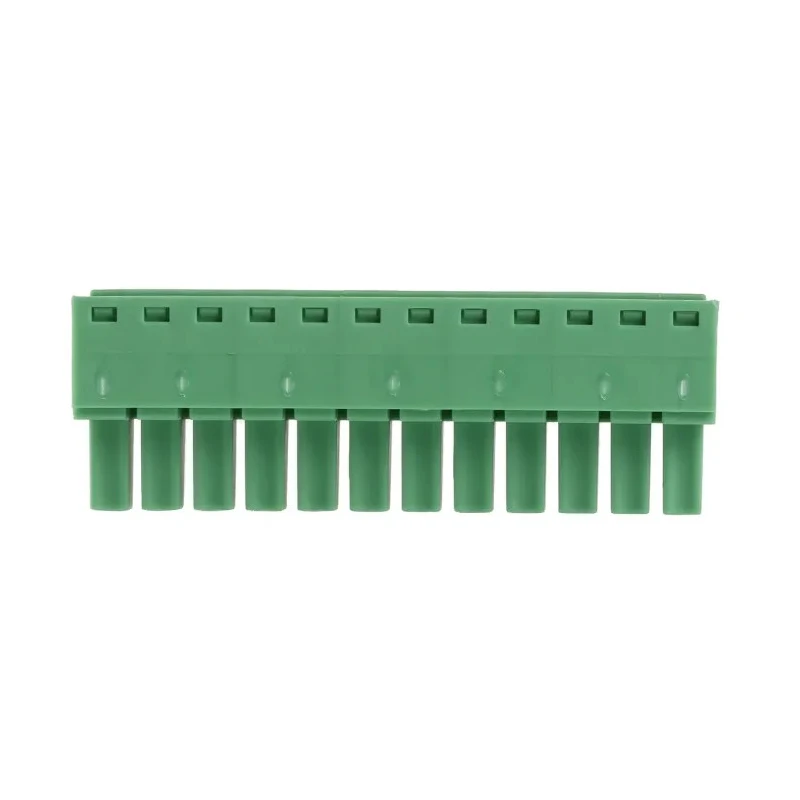

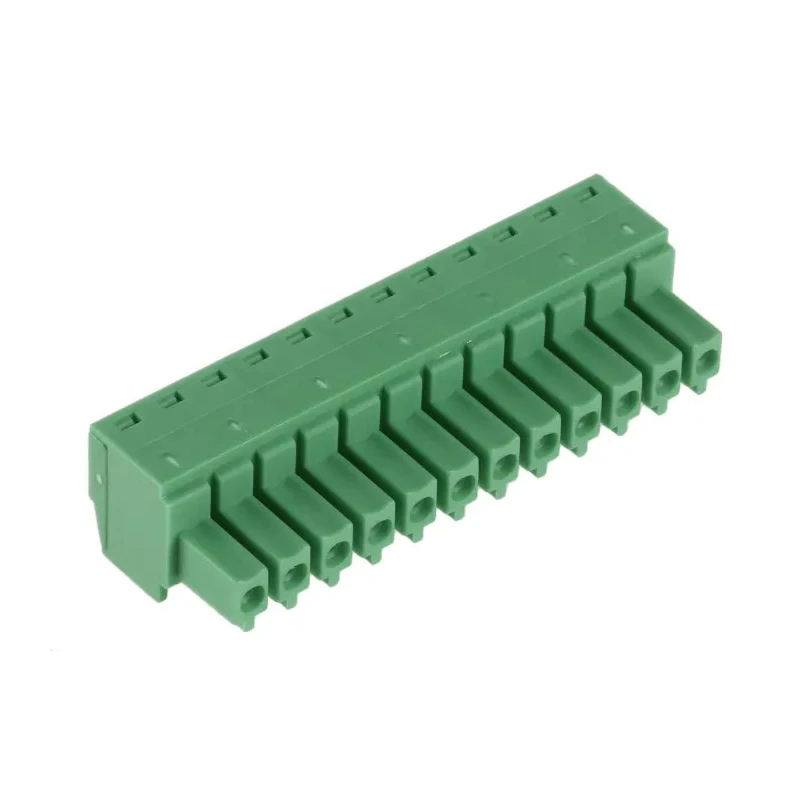

Phoenix Contact Pluggable Terminal Block MC 1.5/12-ST-3.81 Series, 12-Contact, 3.81 mm Pitch, 8A Current, 1 Row 1803675
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 160V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Horizontal |
| Current | 8A |
| Length | 16.1mm |
| Model | 1803675 |
| Depth | 11.1mm |
| Width | 46.51mm |
| Housing Material | Polyamide |
| Series | MC 1.5/12-ST-3.81 |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Number of Contacts | 12 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Screw |
| Adheres to IEC 60512-3-1 | 2002-02 criteria, indicating effective insulation resistance |
Key Features
- Single-row terminal block with 12 female contacts for efficient wiring.
- Screw connection method ensures secure and reliable wire attachment.
- Durable green polyamide housing provides impact and vibration resistance.
- Supports wire sizes from 0.14 mm² to 1.5 mm² (28 AWG to 16 AWG).
- Rated for 8A current and 160V voltage for industrial applications.
- Handles electrical surges up to 2.5 kV to protect connected devices.
- Compact dimensions of 16.1 x 46.51 x 11.1 mm fit standard enclosures.
- Meets IEC 60512-3-1 insulation resistance standards for safety.
Product Description
Phoenix Contact 1803675 pluggable terminal block MC 1.5/12-ST-3.81 Series is engineered for reliable electrical connections in industrial and electronic applications. This terminal block supports 12 connection points arranged in a single row with a 3.81 mm pitch, ensuring a compact footprint while providing secure wiring options.
The unit features female connectors and a screw connection method, allowing quick and robust attachment of wires ranging from 0.14 mm² to 1.5 mm² cross-sectional area (28 AWG to 16 AWG). It operates reliably up to a voltage of 160 V and current rating of 8A, suitable for low power control and signal circuits.
Constructed with a green polyamide housing, the terminal block exhibits high resistance to mechanical impacts and vibration, supported by built-in tension sleeves. The device meets IEC 60512-3-1 insulation resistance standards and can withstand surges up to 2.5 kV, protecting connected equipment from transient voltage spikes.
Its compact dimensions of 16.1 mm length, 46.51 mm width, and 11.1 mm depth make it ideal for space-constrained PCB or enclosure assembly. The horizontal orientation facilitates neat wiring arrangements and easy access for servicing or modifications.
Manufactured in Germany under strict quality controls, this terminal block is suitable for industrial manufacturing, electrical control panels, automation systems, and electronic device assembly where reliable, pluggable connections are required.
Single-row pluggable terminal block with 12 female contacts. Screw-type wire connection for secure, vibration-resistant attachment. Durable green polyamide housing providing impact protection. Supports wire cross sections from 0.14 mm² to 1.5 mm² (28 AWG to 16 AWG).
Rated for 8A current and 160V operating voltage. Surge resistance up to 2.5 kV for enhanced protection. Compact size fits standard enclosure footprints. Conforms to IEC 60512-3-1 for insulation resistance. Made in Germany with high manufacturing standards.
Explore more on EnvMart for industrial-grade Pluggable Terminal Blocks and Phoenix Contact product lines to suit your electronic connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 8A, making it suitable for low power control and signal circuits.
It operates reliably up to a voltage of 160V, suitable for various industrial applications.
The contacts are arranged with a pitch of 3.81 mm, ensuring a compact layout for wiring.
It supports wire sizes from 0.14 mm² to 1.5 mm² (28 AWG to 16 AWG), allowing for a range of wiring options.
This unit utilizes a screw connection method, providing secure and reliable wire attachment.
The compact dimensions are 16.1 mm in length, 46.51 mm in width, and 11.1 mm in depth, making it suitable for space-constrained applications.
The housing is constructed from durable green polyamide, which provides resistance to mechanical impacts and vibration.
It features 12 female contacts arranged in a single row, facilitating efficient wiring.
This model has a horizontal orientation, which aids in neat wiring arrangements and easy access for servicing.
It conforms to IEC 60512-3-1 insulation resistance standards, ensuring effective insulation for safety.
It can withstand electrical surges up to 2.5 kV, protecting connected devices from transient voltage spikes.
This unit is manufactured in Germany under strict quality controls, ensuring high manufacturing standards.
