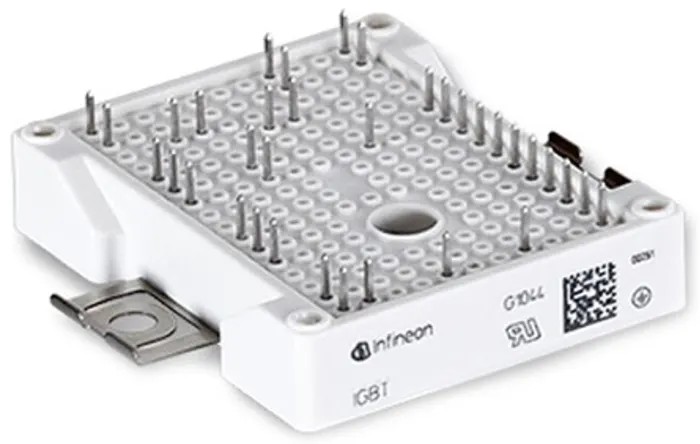

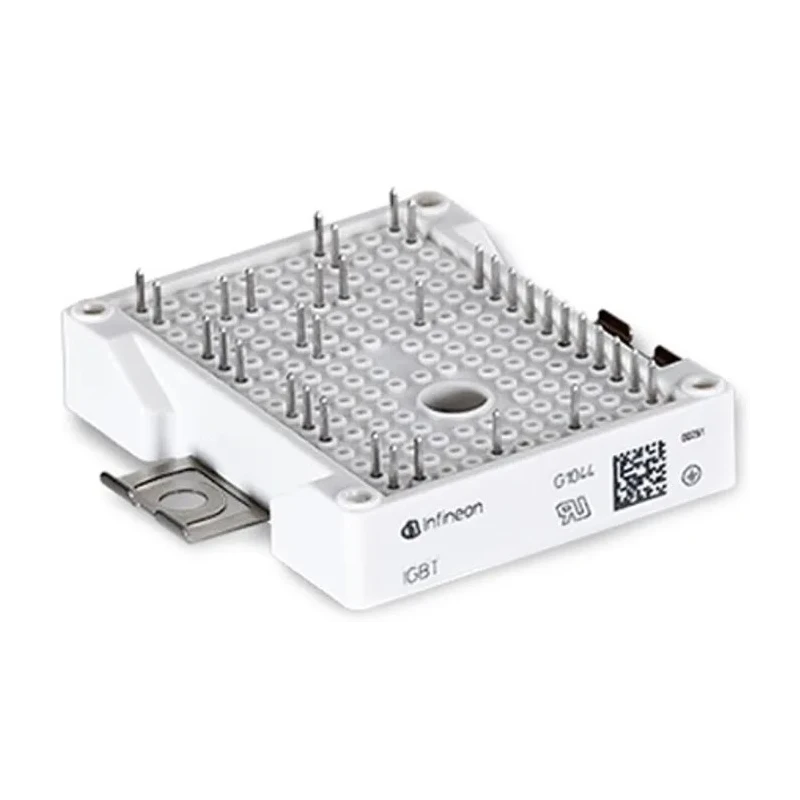

Infineon N-Channel IGBT Module 54 A 1200 V AG-EASY2B-1 Clamp Mount FP35R12W2T4BOMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 12mm |
| Length | 56.7mm |
| Model | FP35R12W2T4BOMA1 |
| Width | 48mm |
| Mount Type | Clamp |
| Series | EasyPIM |
| Maximum Operating Temperature | 150°C |
| Package Type | AG-EASY2B-1 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | ULapproved(E83335) |
| Maximum Continuous Collector Current Ic | 54A |
| Maximum Collector Emitter Voltage Vceo | 1200V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.25V |
| Channel Type | N |
| Maximum Power Dissipation Pd | 215W |
| Maximum Gate Emitter Voltage VGEO | 20 V |
Key Features
- This module features a robust AG-EASY2B-1 package optimized for clamp mounting.
- Capable of handling high power dissipation up to 215 W for demanding applications.
- Operates reliably across a wide temperature range from -40°C to 150°C.
- Employs a gate-emitter voltage rating of 20 V for stable gate drive performance.
- Designed with a low saturation voltage of 2.25 V to minimize conduction losses.
- Complies with UL safety approval (E83335), ensuring trusted industrial use.
- Its compact dimensions (56.7 mm length, 48 mm width, 12 mm height) support efficient integration.
- Ideal for use in industrial motor control inverters, photovoltaic inverter stages, and traction converters.
Product Description
Infineon FP35R12W2T4BOMA1 is a high-voltage N-Channel IGBT Module engineered for switching and power conversion in industrial environments. It supports a continuous collector current of 54 A and withstands a maximum collector-emitter voltage of 1200 V, enabling it to handle substantial power levels while maintaining operational stability.
The module is housed in an AG-EASY2B-1 package designed for secure clamp mounting, facilitating effective mechanical and thermal coupling to heatsinks or system chassis. With a maximum power dissipation of 215 W and a low saturation voltage of 2.25 V, conduction losses are minimized during on-state operation, enhancing efficiency.
This device operates over a broad ambient temperature range from -40°C to 150°C, suitable for harsh industrial conditions. The gate-emitter voltage rating of 20 V ensures robust gate drive margins for reliable function. Recognized safety compliance is indicated by UL approval (E83335).
Common applications include drive inverters for industrial motor control, power supplies requiring high-voltage switching, photovoltaic inverter stages demanding high current, and traction auxiliary converters in heavy equipment.
This module features a robust AG-EASY2B-1 package optimized for clamp mounting. Capable of handling high power dissipation up to 215 W for demanding applications. Operates reliably across a wide temperature range from -40°C to 150°C.
Employs a gate-emitter voltage rating of 20 V for stable gate drive performance. Designed with a low saturation voltage of 2.25 V to minimize conduction losses. Complies with UL safety approval (E83335), ensuring trusted industrial use.
Its compact dimensions (56.7 mm length, 48 mm width, 12 mm height) support efficient integration. Ideal for use in industrial motor control inverters, photovoltaic inverter stages, and traction converters. Explore more Infineon semiconductor modules and industrial power components on EnvMart for your electronics and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for this module is 54 A.
It can withstand a maximum collector-emitter voltage of 1200 V.
This model can handle a maximum power dissipation of 215 W.
The dimensions are 56.7 mm in length, 48 mm in width, and 12 mm in height.
It operates reliably across a temperature range from -40°C to 150°C.
The gate-emitter voltage rating is 20 V, ensuring stable gate drive performance.
This module is designed for clamp mounting, facilitating effective mechanical and thermal coupling.
It has a low saturation voltage of 2.25 V, which helps minimize conduction losses.
It complies with UL safety approval (E83335), ensuring trusted industrial use.
This module is ideal for industrial motor control inverters, photovoltaic inverter stages, and traction converters.
It uses an AG-EASY2B-1 package optimized for clamp mounting.
The module is manufactured in India.
