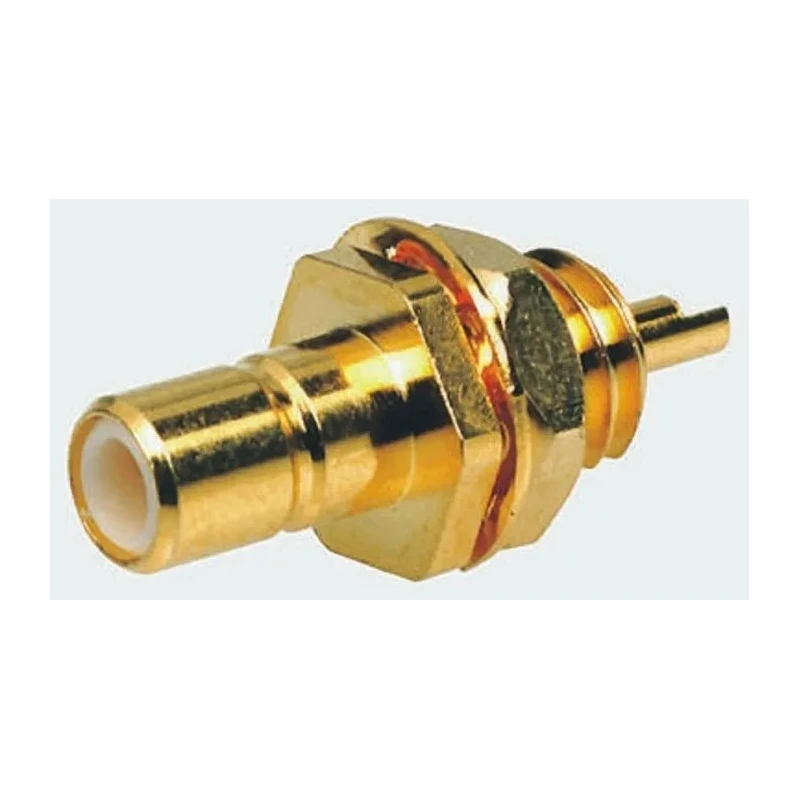

TE Connectivity SMB Series Coaxial Connector Panel Mount Female 50 Ω Straight Body Solder 1-1337480-0
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | SMB |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMB |
| Body Plating | Gold |
| RS PRO Coaxial Connector Panel Mount Male SMB, 50 Ω, Straight Body SolderBrand | RS PRO |
Key Features
- Supports operating frequency up to 4 GHz for high frequency signal applications.
- Features gold plating on body and contacts for excellent conductivity and corrosion resistance.
- Designed for panel mount installation requiring a 4.9 x 4.5 mm panel cut-out.
- Operates within a temperature range of -65°C to 165°C for versatile use.
- Brass contact material with gold plating ensures durability and superior electrical performance.
- Normal polarity with female connector and straight orientation for standard coaxial configurations.
- Solder termination type facilitates secure cable connections.
- Professional grade construction ideal for industrial and RF applications.
Product Description
TE Connectivity 1-1337480-0 SMB Series Coaxial Connector is a professional grade panel mount female SMB type connector designed for RF and high-frequency applications. With a 50 Ω impedance and support for operation frequencies up to 4 GHz, this connector ensures reliable signal integrity for communications, industrial, and laboratory equipment.
The connector features a durable gold-plated brass body and contacts, providing enhanced conductivity and resistance to corrosion in demanding environments. It is designed with a straight body orientation for standard coaxial cable terminations, and the solder termination type facilitates secure and permanent cable connections.
The operating temperature range from -65°C to 165°C makes it suitable for various industrial and electronic applications requiring stable RF connections under extreme conditions. Installation requires a 4.9 x 4.5 mm panel cut-out, making it ideal for front panel mounting in equipment enclosures.
Supports operating frequency up to 4 GHz for high-frequency signals. Gold plated brass body and contacts for superior conductivity. Panel mount style with a specified panel cut-out dimension. Wide temperature operating range from -65°C to 165°C.
Solder termination for secure cable connections. Standard 50 Ω impedance ensures compatibility in RF systems. Durable female SMB connector with straight orientation. Polarity is normal for standard coaxial applications. Professional grade construction without specific approvals.
This connector is widely used in industrial, telecommunications, laboratory instrumentation, and RF equipment for reliable coaxial connections. It is suited for environments requiring durable and stable signal transmission over varying temperatures.
Explore more TE Connectivity Coaxial Connectors and components on EnvMart for comprehensive electronic connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This coaxial connector supports a maximum operating frequency of up to 4 GHz, making it suitable for high-frequency signal applications.
The impedance of this connector is 50 Ω, ensuring compatibility with standard RF systems.
It requires a panel cut-out dimension of 4.9 x 4.5 mm for proper installation.
This connector operates effectively within a temperature range of -65°C to 165°C, suitable for various industrial applications.
It uses a solder termination type, which facilitates secure and permanent cable connections.
The contact material is brass, which is plated with gold for enhanced conductivity and corrosion resistance.
This connector features a straight body orientation, which is standard for coaxial configurations.
The connector is female, designed for standard coaxial applications with normal polarity.
This connector is manufactured in India.
It is widely used in industrial, telecommunications, laboratory instrumentation, and RF equipment for reliable coaxial connections.
The body of this connector is also gold plated, ensuring superior conductivity and resistance to corrosion.
This connector belongs to the SMB series, which is designed for RF and high-frequency applications.
