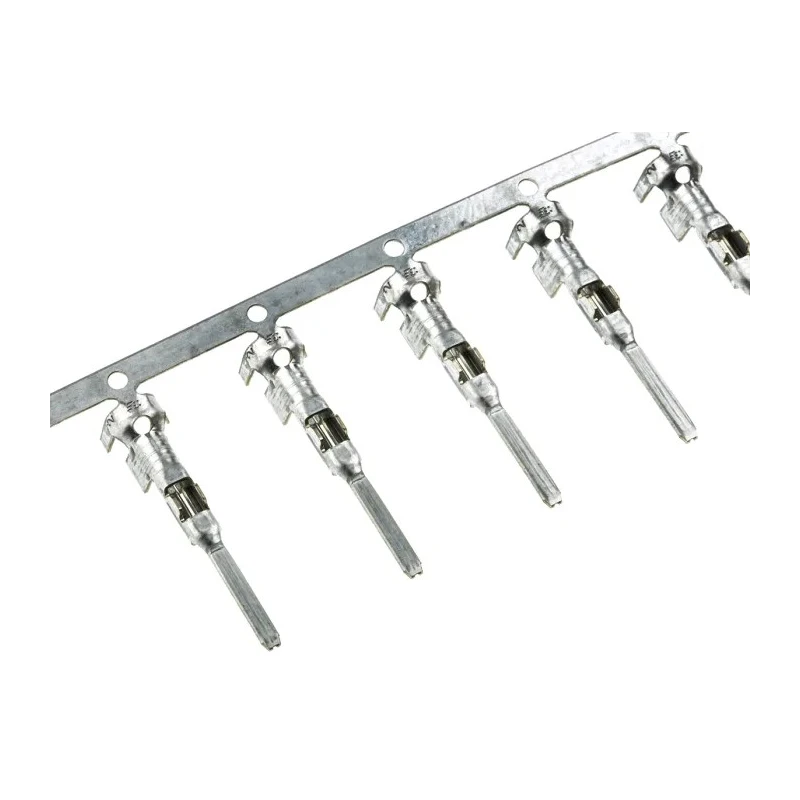

TE Connectivity MINI-MIC Series Male Crimp Terminal, 21 AWG Min Crimp, 20 AWG Max 282404-1
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | TE Connectivity |
| Current | 6A |
| Length | 22.7mm |
| Model | 282404-1 |
| Gender | Male |
| Contact Material | Brass |
| Series | MINI-MIC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| For Use With | AMP SUPERSEAL 1.5 Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.35mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 21AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 30mΩ |
Key Features
- The terminal is male and tin-plated for corrosion resistance and durability.
- Suitable for use with AMP SUPERSEAL 1.5 connector housings for enhanced sealing and protection.
- Constructed with brass contact material ensuring good conductivity.
- Supports currents up to 6 amperes with a contact resistance of 30 milliohms maximum.
- Wide operating temperature range from -40°C to 125°C for rugged environments.
- Terminal length measures 22.7 mm for compact electronic assembly.
- Designed specifically for automotive, agricultural, and industrial machinery applications.
- Offers secure, reliable waterproof connections meeting IP67 with appropriate seals.
Product Description
TE Connectivity 282404-1 is a precision-engineered male crimp terminal from the MINI-MIC series. It is designed for 21 AWG minimum and 20 AWG maximum wire sizes, featuring robust brass construction with tin plating for excellent corrosion resistance and reliable electrical conductivity. The terminal supports currents up to 6A and features a low maximum contact resistance of 30 milliohms, making it suitable for automotive and industrial electrical systems.
Manufactured in Italy, this crimp terminal is compatible with AMP SUPERSEAL 1.5 connector housings, which are well-regarded for their waterproof IP67 sealing capabilities when used with the proper wire seals. This makes the 282404-1 ideal for demanding environments exposed to moisture, vibration, and temperature extremes, typical in automotive, agriculture, and off-road machinery applications.
The terminal length of 22.7 mm allows compact yet secure connections. Operating temperature tolerance spans from -40°C to 125°C, ensuring dependable performance under harsh conditions. The miniature tab contact design supports reliable assembly into SUPERSEAL series connectors, offering a two-step positive locking mechanism to secure contacts firmly in place.
The MINI-MIC series terminals are widely used in sensor devices, vehicle wiring harnesses, and industrial connectors requiring tight and sealed contact solutions. This range from TE Connectivity is backed by extensive technical documentation and tooling options for efficient assembly and maintenance.
The male crimp terminal is constructed of tin-plated brass for durability. Supports wire sizes from 21 to 20 AWG for flexible connectivity. Compatible with AMP SUPERSEAL 1.5 connector housings ensuring waterproof sealing.
Withstands operating temperatures ranging from -40°C to 125°C. Current rating of 6A with low maximum contact resistance of 30 mΩ. Length of 22.7 mm for compact form factor applications. Ideal for automotive, agricultural, and industrial machinery wiring.
Provides reliable, vibration-resistant connectivity in harsh environments. Designed for IP67-rated waterproof connector assemblies when properly sealed.
This TE Connectivity product is an excellent choice for engineers requiring reliable Crimp Contacts in automotive and industrial electronics. Explore further TE Connectivity MINI-MIC series components and accessories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this male crimp terminal is 6 amperes.
This terminal supports wire sizes from 21 AWG (0.35 mm²) minimum to 20 AWG (0.5 mm²) maximum.
The maximum contact resistance is 30 milliohms.
The length of this crimp terminal is 22.7 mm.
It operates within a temperature range of -40°C to 125°C.
This terminal is designed for use with AMP SUPERSEAL 1.5 connector housings.
The terminal is constructed from brass and features tin plating for corrosion resistance.
This crimp terminal belongs to the MINI-MIC series by TE Connectivity.
This terminal uses a crimp termination type.
This terminal is suitable for automotive, agricultural, and industrial machinery applications.
This terminal is manufactured in Italy.
When properly sealed, it meets IP67 waterproof standards.
