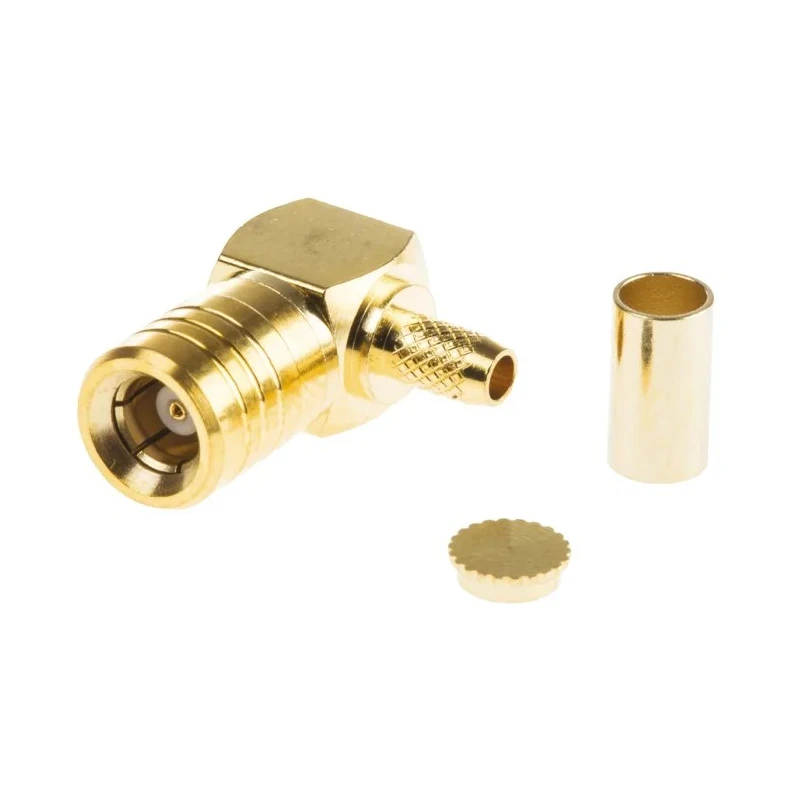

TE Connectivity SMB Series Coaxial Connector Cable Male SMB, 50 Ω, Right Angle Body 1-1337478-0
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | SMB |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG188A/U, RG316/U, RG174A/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Male |
| Coaxial Connector Type | SMB |
| Body Plating | Gold |
| RS PRO Coaxial Connector Cable Male SMB, 50 Ω, Right Angle Body CrimpBrand | RS PRO |
Key Features
- Subminiature, space-saving SMB design suitable for limited space applications.
- Excellent electrical performance from DC to 4 GHz frequency range.
- Snap-on coupling enables quick connect and disconnect for ease of installation.
- Crimp termination supports fast and cost-effective cable assembly.
- Compatible with RG188A/U, RG316/U, and RG174A/U cable types.
- Durable gold-plated body and contact materials for reliable conductivity and corrosion resistance.
- Operating temperature range from -65°C to 165°C for diverse conditions.
- Ideal for GPS systems, antennas, telephony, base stations, CATV, and radio board applications.
Product Description
TE Connectivity 1-1337478-0 SMB Series Coaxial Connector Cable Male SMB, 50 Ω, Right Angle Body is designed for electronic and RF applications requiring compact, high-performance connectors.
The subminiature SMB connectors deliver excellent electrical characteristics from DC to 4 GHz with low Voltage Standing Wave Ratio (VSWR), ensuring signal integrity. Their snap-on coupling facilitates fast, tool-less connections, making field installations efficient.
Constructed with gold-plated beryllium copper contacts and a gold-plated body, the connector provides corrosion resistance and reliable electrical contact. It accepts cable types RG188A/U, RG316/U, and RG174A/U, meeting industry standards for impedance and mechanical reliability.
The male SMB connector features a right angle body configuration, supporting circuit miniaturization and fitting in compact spaces. It operates over a wide temperature range from -65°C to 165°C, suitable for harsh environments and various industrial uses.
Applications include GPS systems, antennas, base stations, telephony, CATV, radio boards, and other telecommunications and RF communication equipment. This product supports quick connect and disconnect for maintenance and upgrades.
Subminiature, space-saving SMB design for limited space applications. Electrical performance from DC to 4 GHz frequency range. Snap-on coupling enables quick connect and disconnect. Crimp termination for efficient cable assembly.
Compatible with multiple coaxial cable types. Gold-plated body and contacts for corrosion resistance. Wide operating temperature range (-65°C to 165°C). Ideal for use in GPS, antennas, base stations, telephony, and CATV.
Explore more electronic connector solutions and components in the Coaxial Connectors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a frequency range from DC to 4 GHz, providing excellent electrical performance for various applications.
It is compatible with RG188A/U, RG316/U, and RG174A/U cable types, meeting industry standards for impedance and mechanical reliability.
The maximum operating temperature for this connector is 165°C, making it suitable for use in harsh environments.
This unit features crimp termination, which supports fast and cost-effective cable assembly.
The connector is constructed with gold-plated beryllium copper contacts and a gold-plated body, providing corrosion resistance and reliable electrical contact.
This model has a right angle orientation, which supports circuit miniaturization and fitting in compact spaces.
The impedance rating of this connector is 50Ω, suitable for RF applications.
The minimum operating temperature for this connector is -65°C, allowing it to function effectively in a wide range of environmental conditions.
This model supports cable mounting, making it easy to integrate into existing systems.
It is ideal for use in GPS systems, antennas, telephony, base stations, CATV, and radio boards, among other telecommunications and RF communication equipment.
The connector is designed in a standard size, making it versatile for various applications.
This model features normal polarity, ensuring compatibility with standard systems.
