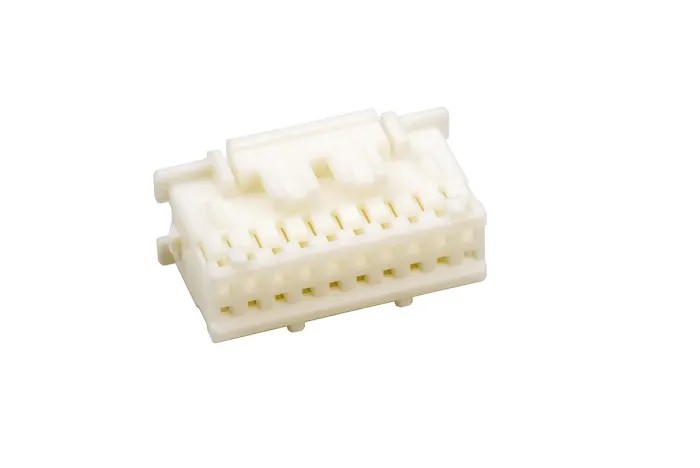

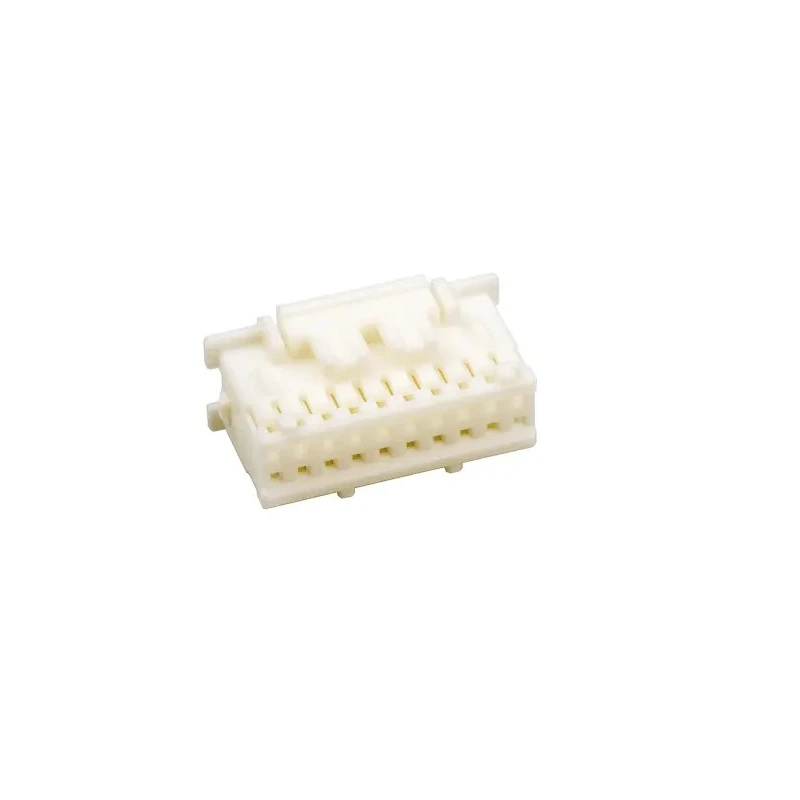

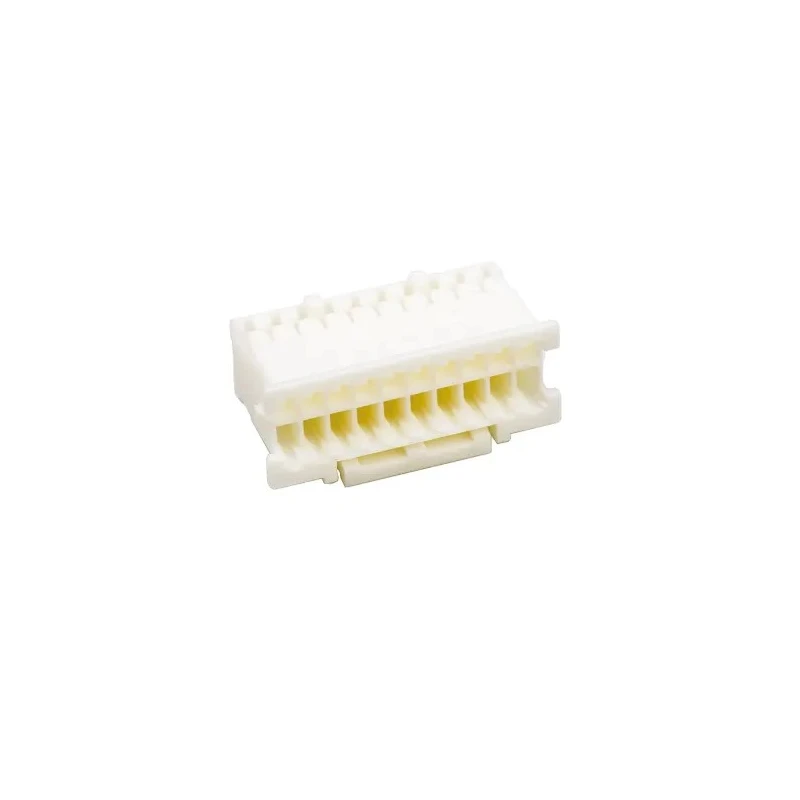

JST PADP Female Connector Housing 2 mm Pitch 20 Way 2 Row Straight PADP-20V-1-S

JST PADP-20V-1-S female connector housing is a highly reliable 2 mm pitch wire-to-board connector designed to provide secure and efficient connections in electronic assemblies. This connector features 20 contact positions arranged in 2 rows with a straight orientation, suitable for high-density applications requiring compact and robust wire housings.

Manufactured from flame-retardant polyamide rated UL 94V-0, the PADP series housings offer excellent durability and safety compliance for industrial and electronic use. The housing is designed to mate perfectly with JST SPH series crimp contacts, ensuring a reliable cable mount interface to printed circuit boards.

The connector dimensions are 22 mm in length and 10 mm in width, allowing precise accommodation in tight assembly spaces. Its design integrates a secure locking mechanism, polarization features, and insertion guides to provide error-proof connection and maintain continuity even under adverse conditions.

These connectors are widely used in electronic component assemblies, power connectors, telecommunications equipment, and other industrial applications that require dependable connector housings with consistent electrical performance.

Constructed from flame-retardant polyamide for enhanced safety. 20 contacts arranged in a dual-row 2 mm pitch layout. Designed specifically for use with JST SPH crimp contacts. Provides secure locking and polarization for reliable connections.

Straight orientation cable mount type for versatile assembly. Compact size with 22 mm length and 10 mm width. RoHS compliant ensuring environmental sustainability.

For a broad range of applications from industrial manufacturing to electronic prototyping, the JST PADP-20V-1-S female connector housing delivers precise connection performance. Browse more JST Connector Housings and components at EnvMart for optimal PCB assembly solutions.
