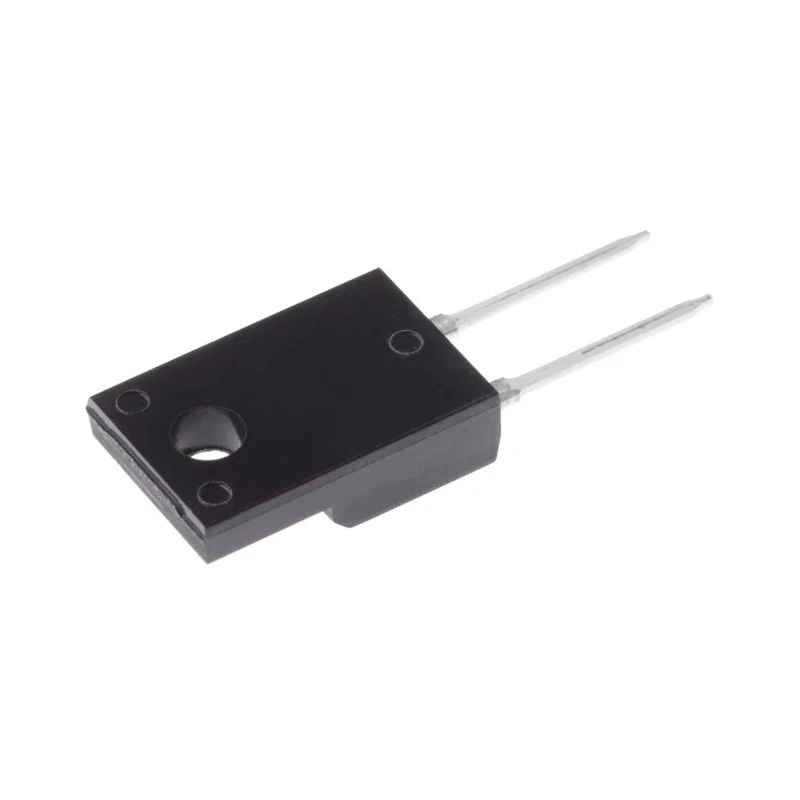

STMicroelectronics 600 V 15 A High Voltage Single Diode 2-Pin Through Hole TO-220 STTH15AC06FP
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3mm |
| Brand | STMicroelectronics |
| Height | 16.4mm |
| Length | 10.4mm |
| Model | STTH15AC06FP |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STTH15 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 15A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | High Voltage |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 120A |
| Maximum Forward Voltage Vf | 1.9V |
| Peak Reverse Recovery Time trr | 55ns |
Key Features
- This diode features a 2-pin configuration in a TO-220 package.
- The rectifier type is high voltage suitable for power applications.
- Maximum forward voltage is 1.9 V, ensuring efficient conduction.
- Peak reverse recovery time is 55 ns for fast switching operations.
- Operates reliably between -40°C and 175°C, suitable for demanding environments.
- Compliant with RoHS standards, ensuring environmental safety.
- Compact dimensions include 16.4 mm height and 10.4 mm length.
- Peak non-repetitive forward surge current of 120 A supports transient loads.
Product Description
STMicroelectronics STTH15AC06FP is a high voltage single diode designed for power electronics requiring robust performance. It supports a maximum continuous forward current of 15 A and a peak reverse repetitive voltage of 600 V, making it ideal for rectification in industrial, electrical, and semiconductor applications.
This high voltage diode is housed in a TO-220 package with a 2-pin through-hole mount, providing easy installation on printed circuit boards and power modules. Its maximum forward voltage of 1.9 V minimizes conduction losses and improves efficiency in circuits.
The diode exhibits a peak reverse recovery time of 55 ns, enabling it to switch rapidly in high-frequency environments such as power supplies and motor drives. It operates over a wide temperature range from -40°C to 175°C, ensuring reliability in harsh industrial and commercial conditions.
With compliance to the RoHS directive, the component meets environmental safety standards. Physical dimensions include a height of 16.4 mm, length of 10.4 mm, width of 4.6 mm, and diameter of 3 mm, suitable for compact electronic designs.
This diode is commonly used in power rectification, voltage regulation, and protection circuits within laboratory equipment, industrial machinery, and automation systems. This diode features a 2-pin configuration in a TO-220 package.
The rectifier type is high voltage suitable for power applications. Maximum forward voltage is 1.9 V, ensuring efficient conduction. Peak reverse recovery time is 55 ns for fast switching operations. Operates reliably between -40°C and 175°C, suitable for demanding environments.
Compliant with RoHS standards, ensuring environmental safety. Compact dimensions include 16.4 mm height and 10.4 mm length. Peak non-repetitive forward surge current of 120 A supports transient loads. Peak reverse current of 200 µA minimizes leakage for enhanced performance.
Explore more industrial-grade semiconductors and power components at EnvMart for your electronic design needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 15 A.
It has a peak reverse repetitive voltage rating of 600 V.
The maximum forward voltage is 1.9 V, which helps minimize conduction losses.
The peak reverse recovery time is 55 ns, allowing for fast switching operations.
This unit operates reliably between -40°C and 175°C.
The physical dimensions include a height of 16.4 mm, length of 10.4 mm, and width of 4.6 mm.
It is housed in a TO-220 package, which is suitable for through-hole mounting.
The peak non-repetitive forward surge current is 120 A, supporting transient loads.
Yes, it is compliant with RoHS standards, ensuring environmental safety.
The peak reverse current is 200 µA, which helps minimize leakage.
This diode is commonly used in power rectification, voltage regulation, and protection circuits within industrial machinery and automation systems.
This model has a 2-pin configuration.
