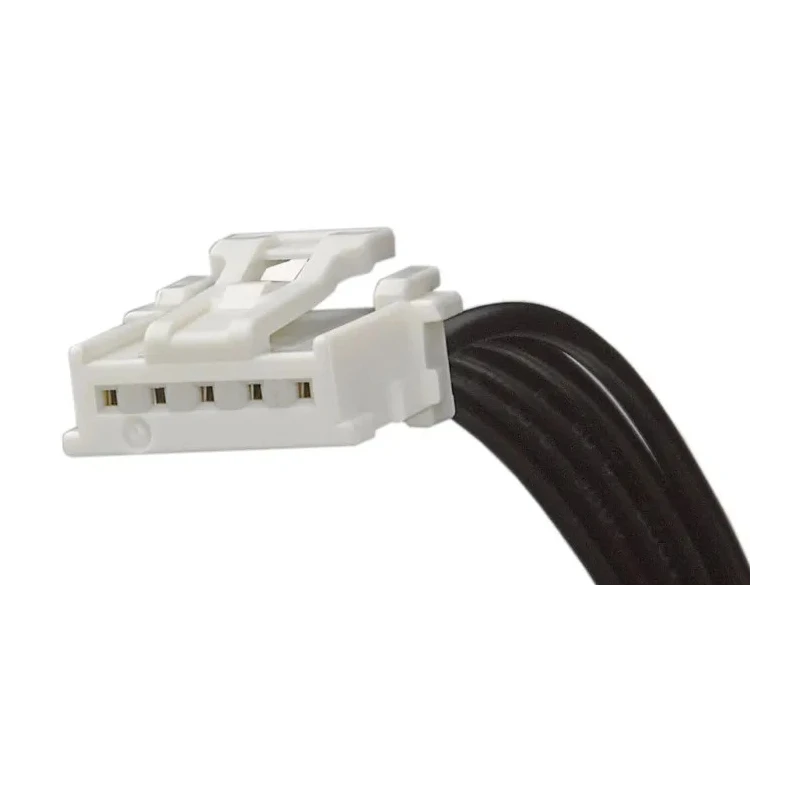

Molex Wire to Board Cable 300 mm MicroClasp Series 15136-0503

Molex 15136-0503 Wire to Board Cable from the MicroClasp series is designed for compact and reliable wire-to-board connections in industrial and commercial electronic applications. This cable assembly features a 300 mm cable length and MicroClasp 2.0 mm pitch female connectors terminated at each end, facilitating effortless integration in prototype designs and production environments.

Constructed with UL1061 discrete wires, the MicroClasp cable assemblies ensure durability and ease of wiring design. The pin-to-pin mapping aligns perfectly with MicroClasp PCB headers (series 55932 and 55935), providing plug-and-play usability and reducing wiring errors.

The connectors support current ratings up to 3 A in the compact 2.0 mm pitch format, balanced by a terminal design featuring low insertion and withdrawal forces for convenient mating and unmating cycles. The unique inner positive lock system guarantees secure retention and provides an audible click confirmation when fully mated, enhancing connection reliability.

This wire-to-board cable is suitable for use across various industries such as consumer electronics (fitness equipment, home entertainment systems, appliances, portable devices), automotive (commercial vehicles), industrial process controls, and medical equipment (patient monitors). Additionally, the MicroClasp range offers PCB space saving and robust latch protection for demanding applications.

Constructed using UL1061 discrete wires for ease of design and durability. Pin to pin mapping for plug-and-play connectivity with MicroClasp PCB headers. Rated for maximum current of 3 A in a compact 2.0 mm pitch configuration.

Low insertion/withdrawal force terminals enable easy mating and unmating. Inner positive lock system delivers secure retention and audible mating confirmation. Ideal for consumer electronics, automotive, industrial, and medical use cases.
