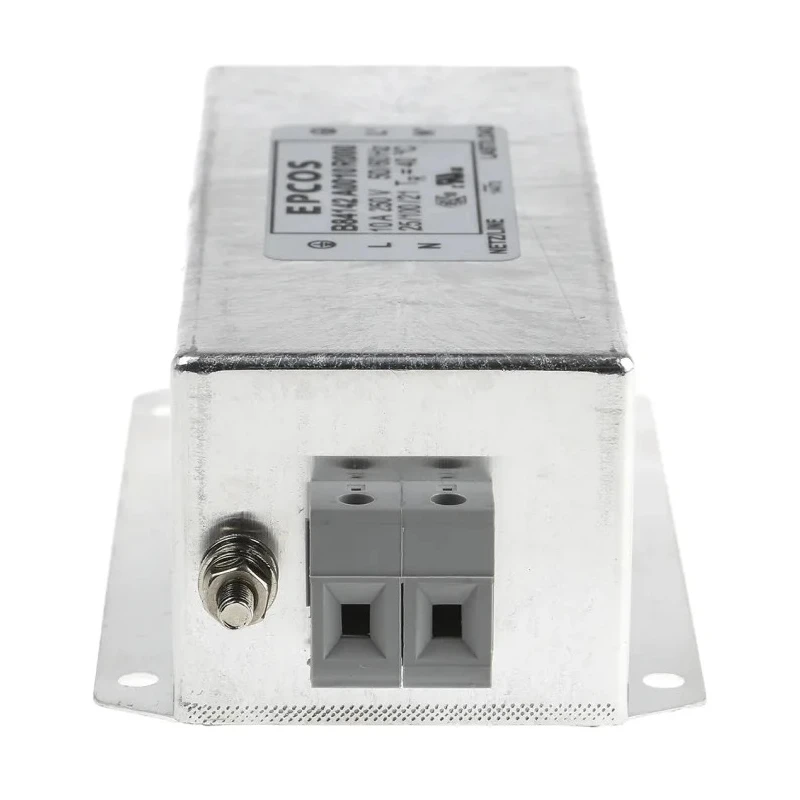

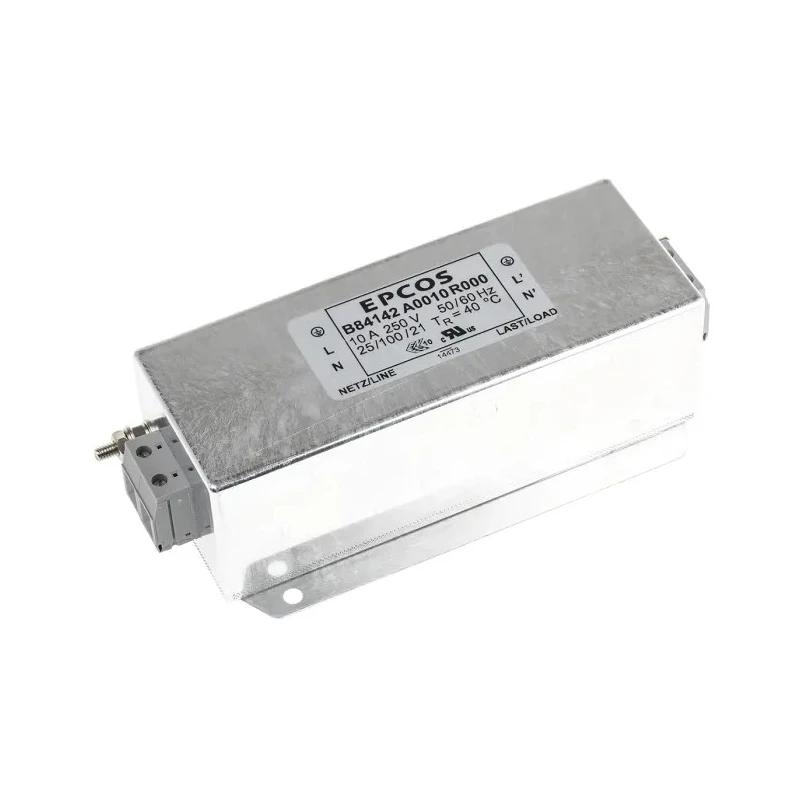

TDK Flange EMC Filter Screw 1 Phase 10 A 250V ac/dc 60Hz B84142A0010R000

Free Delivery in India | Lowest Global Shipping Charges

TDK Flange EMC Filter Screw 1 Phase 10 A 250V ac/dc 60Hz B84142A0010R000



Category Power Line Filters Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	44.5mm
Length	154.8mm
Model	B84142A0010R000
Depth	130mm
Mount Type	Flange
Operating Frequency	60Hz
Series	B84142A
Maximum Operating Temperature	100°C
Number Of Stages	2
Resistance	18mΩ
Minimum Operating Temperature	-25°C
Maximum Current	10A
Number of Phases	1
Leakage Current	7.9mA
Maximum Voltage	250V ac/dc
Standards/Approvals	UL1283
Termination Style	Screw

Key Features

Compact two-line filter designed for industrial electrical systems.
Flange mounting with screw termination for secure attachment.
Operates over wide temperature range from -25°C to 100°C.
Low leakage current ensures minimal energy loss.
Robust compliance with UL1283 and CSA22.2 No. 8 standards.
Designed for very long motor cable applications.
Provides IP20 protection against solid ingress.
Compact size supports easy integration.

Product Description

TDK B84142A0010R000 Flange EMC Filter Screw 1 Phase is a highly compact, two-line electromagnetic compatibility filter designed to reduce noise and interference in AC/DC electrical installations up to 250V and 10 A current. Optimized for 60Hz operation, it is ideal for use in industrial equipment such as lifts, conveyor belts, pumps, ventilation systems, and power supplies.

The filter utilizes a flange mounting system with screw terminations, providing secure and reliable physical installation and electrical connection. It is engineered to operate efficiently over a broad temperature range, from -25°C to 100°C, ensuring dependable performance in various environmental conditions.

Featuring an extremely low leakage current of 7.9mA and a minimal resistance of 18 milliohms, this filter maintains energy efficiency while offering very high insertion loss for noise suppression. The device complies with UL1283 and CSA standards, reflecting its suitability for demanding industrial and commercial electrical applications.

Protection rating IP20 offers basic protection against ingress of solid objects. Its dimensions - 44.5mm height, 130mm depth, and 154.8mm length - allow integration even in space-constrained control panels and assemblies.

Manufactured in China, the B84142-Ax-R series by TDK is a trusted choice for high-performance EMI filtering needs, delivering robustness combined with optimized performance for extensive motor cable runs under full loading conditions.

Compact two-line EMI filter designed for industrial electrical systems. Flange mounting with screw termination for secure attachment. Operates over wide temperature range from -25°C to 100°C. Low leakage current ensures minimal energy loss.

Robust compliance with UL1283 and CSA22.2 No. 8 standards. Designed for very long motor cable applications. Provides IP20 protection against solid ingress. Compact size supports easy integration. Explore the TDK product range for reliable EMC filters suited for diverse industrial applications on EnvMart.
