Vishay Dual Thyristor Module 1200 V 3.36 kA 135 A 270 mA 1.57 V INT-A-PAK 7-Pin VS-VSKT136/12PBF

Free Delivery in India | Lowest Global Shipping Charges

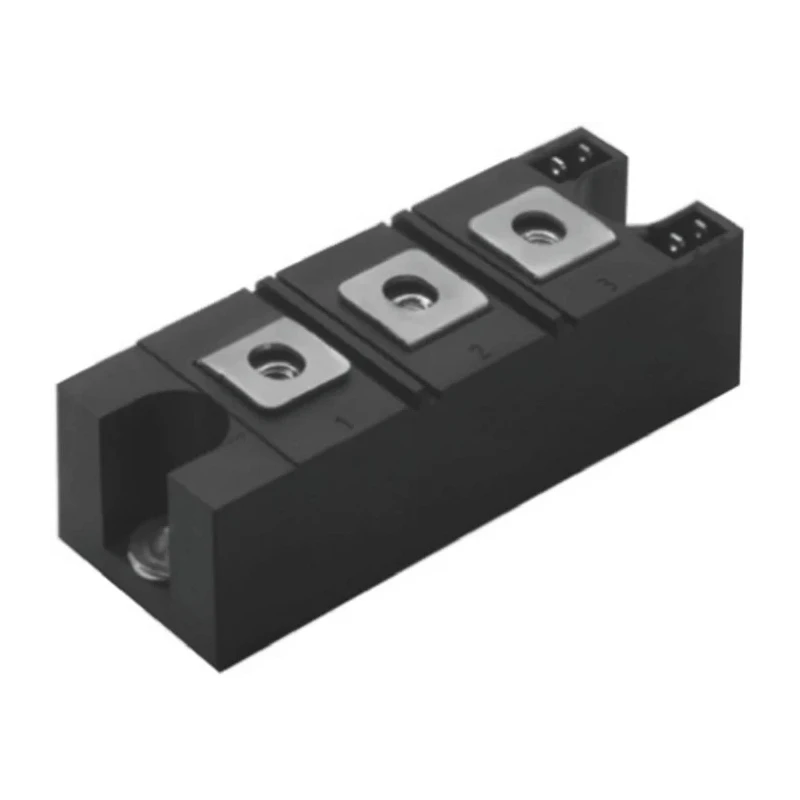

Vishay Dual Thyristor Module 1200 V 3.36 kA 135 A 270 mA 1.57 V INT-A-PAK 7-Pin VS-VSKT136/12PBF

Name: Vishay Dual Thyristor Module 1200 V 3.36 kA 135 A 270 mA 1.57 V INT-A-PAK 7-Pin VS-VSKT136/12PBF
Brand: Vishay
SKU: 182984
Price: 103.68 USD
Availability: InStock



Category Thyristor Module Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	30mm
Length	94mm
Model	VS-VSKT136/12PBF
Width	35mm
Mount Type	Panel
Maximum Operating Temperature	125°C
Package Type	INT-A-PAK
Pin Count	7
Rated Average On-State Current Irms	135A
Repetitive Peak Reverse Voltage VDRM	1200V
Surge Current Rating	3.36kA
Maximum Gate Trigger Current Igt	270mA
Maximum Holding Current Ih	200mA
Maximum Gate Trigger Voltage Vgt	4V
Peak On-State Voltage	1.57V
Repetitive Peak Off-State Current	50mA

Key Features

The module provides a rated average on-state current of 135 A for robust handling of power loads.
It features an INT-A-PAK package type with a 7-pin configuration for easy panel mount installation.
Maximum gate trigger current is 270 mA, with holding current of 200 mA ensuring reliable switching.
The module supports a maximum operating temperature of 125°C, suitable for demanding environments.
Peak on-state voltage is 1.57 V, enabling efficient conduction with low losses.
No automotive certification, but industrial standard with UL approval file E78996.
Suitable for use in battery chargers, welding equipment, regulated power supplies, and speed control circuits.

Product Description

Vishay VS-VSKT136/12PBF is a dual thyristor module featuring a 1200 V repetitive peak reverse voltage rating and a high surge current capability of 3.36 kA. This INT-A-PAK package with 7 pins is designed for panel mounting and industrial applications requiring reliable solid-state switching.

The device supports a rated average on-state current of 135 A, with a maximum gate trigger current of 270 mA and a holding current of 200 mA. Its maximum operating temperature of 125°C makes it suitable for use in harsh environments where thermal stability is critical.

With compact dimensions of 94 mm length, 35 mm width, and 30 mm height, this module enables efficient power control solutions. The peak on-state voltage of 1.57 V reduces conduction losses, enhancing overall energy efficiency.

The Vishay Thyristor Module is UL approved (file E78996) and ideal for industrial contexts such as battery chargers, welding equipment, regulated power supplies, temperature regulation, and speed control circuits.

The module provides rated average on-state current of 135 A. High surge current rating of 3.36 kA supports transient loads. Maximum gate trigger current is 270 mA for reliable triggering. Compact INT-A-PAK 7-pin package allows easy panel mounting.

Operating temperature range extends up to 125°C for durability. Peak on-state voltage of 1.57 V for low conduction losses. Industrial standard component with UL approval for safety. Suitable for use in battery chargers, welders, and power supplies.

Explore the Vishay range and similar semiconductor products on EnvMart for your electronic component and power control needs.
