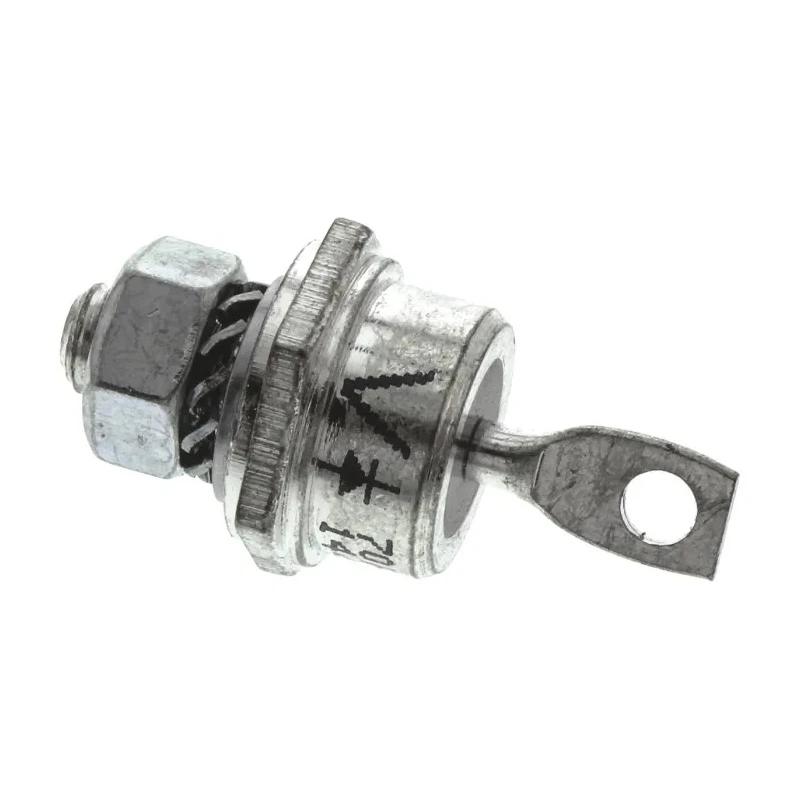

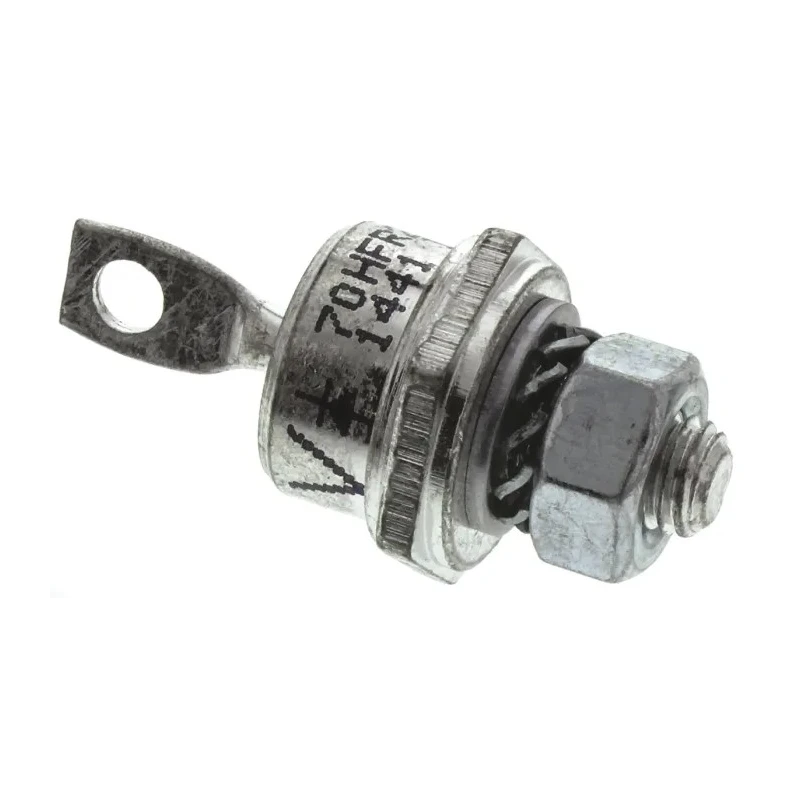

Vishay 200 V 70 A Switching Diode 2-Pin DO-203AB VS-70HFR20
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 17.4mm |
| Brand | Vishay |
| Height | 22.9mm |
| Length | 20.08mm |
| Model | VS-70HFR20 |
| Width | 17.4mm |
| Mount Type | Screw |
| Series | VS-70HF |
| Maximum Operating Temperature | 180°C |
| Package Type | DO-203AB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 70A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Stud Anode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 15mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.3kA |
| Maximum Forward Voltage Vf | 1.35V |
| Vishay 100 V 70 A Diode Switching 2-Pin DO-203ABBrand | Vishay |
Key Features
- This switching diode features a stud anode configuration and screw mount type.
- The diode is designed for high surge currents of 1.3 kA peak non-repetitive forward surge current.
- Maximum forward voltage is 1.35 V and peak reverse current is 15 mA.
- It operates reliably between -65°C and 180°C ambient temperatures.
- Package dimensions include 22.9 mm height, 20.08 mm length, and 17.4 mm diameter.
- The diode is supplied in industry-standard DO-203AB package with 2 pins.
- Ideal for high-efficiency standard recovery power applications in electronic circuits.
Product Description
Vishay VS-70HFR20 is a high-performance switching diode designed to handle demanding power applications. Rated for a maximum continuous forward current of 70 A and peak reverse voltage of 200 V, it ensures efficient current flow with a maximum forward voltage drop of 1.35 V. Its stud anode and screw mount configuration provide robust mechanical stability in various assemblies.
The diode supports surge conditions with a peak non-repetitive forward surge current tolerance of 1.3 kA, making it suitable for transient load handling and switching environments.
Operating over a wide temperature range from -65°C to 180°C, this device is capable of functioning reliably in harsh industrial, automotive, and electronic systems.
Its compact DO-203AB package with 2 pins and dimensions of approx. 22.9 mm height, 20.08 mm length, and 17.4 mm diameter makes integration straightforward in power electronic designs.
This switching diode features a stud anode configuration and screw mount type. The diode is designed for high surge currents of 1.3 kA peak non-repetitive forward surge current. Maximum forward voltage is 1.35 V and peak reverse current is 15 mA.
It operates reliably between -65°C and 180°C ambient temperatures. Package dimensions include 22.9 mm height, 20.08 mm length, and 17.4 mm diameter. The diode is supplied in industry-standard DO-203AB package with 2 pins.
Ideal for high-efficiency standard recovery power applications in electronic circuits. This diode is widely used in power supply rectification, motor control scanners, and other high current semiconductor switching applications in industrial and automotive domains.
Discover more Vishay semiconductors and switching diodes at EnvMart for your precise engineering requirements.
Explore more products in our Semiconductor Switching Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay VS-70HFR20 is 70 A.
This model has a peak reverse repetitive voltage rating of 200 V.
The package dimensions are approximately 22.9 mm in height, 20.08 mm in length, and 17.4 mm in diameter.
It can handle a peak non-repetitive forward surge current of 1.3 kA.
The diode operates reliably between -65°C and 180°C.
This diode features a screw mount type with a stud anode configuration.
The maximum forward voltage drop is 1.35 V.
The peak reverse current is rated at 15 mA.
It is commonly used in power supply rectification, motor control scanners, and other high current semiconductor switching applications.
This diode has a pin count of 2.
This model is classified as a switching rectifier.
The country of origin for the Vishay VS-70HFR20 is India.
