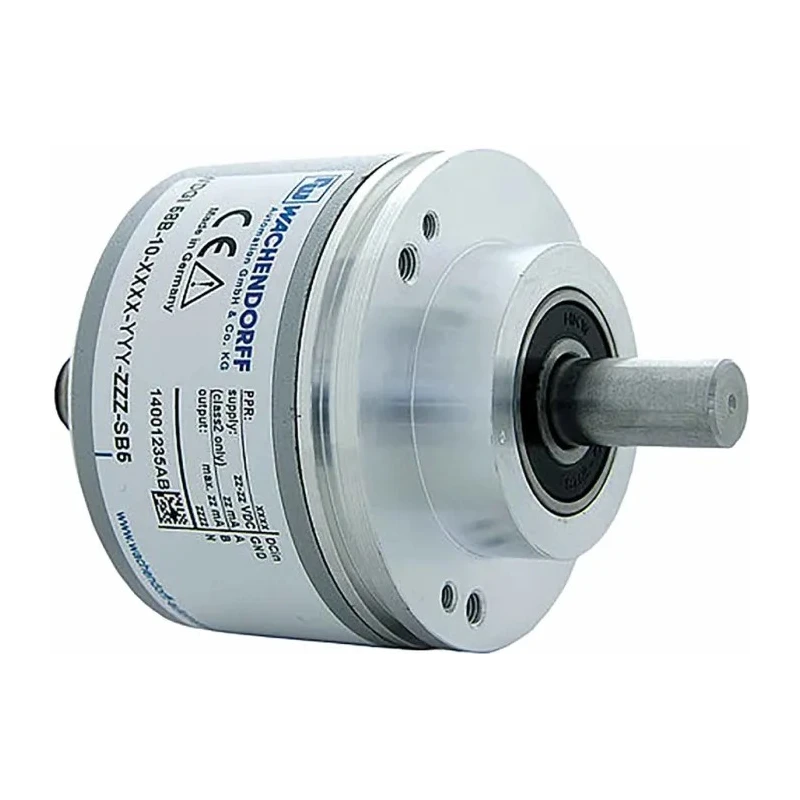

Wachendorff WDGI 58B Series Incremental Encoder 30V dc, 360 ppr, HTL Signal, Solid 10 mm Shaft WDG58B-360-ABN-G24-K3

Free Delivery in India | Lowest Global Shipping Charges

Wachendorff WDGI 58B Series Incremental Encoder 30V dc, 360 ppr, HTL Signal, Solid 10 mm Shaft WDG58B-360-ABN-G24-K3

Name: Wachendorff WDGI 58B Series Incremental Encoder 30V dc, 360 ppr, HTL Signal, Solid 10 mm Shaft WDG58B-360-ABN-G24-K3
Brand: Wachendorff
SKU: 182504
Price: 370.92 USD
Availability: InStock



Category Incremental Encoder Brand Wachendorff Condition New

Specifications

Country of Origin	United States
Brand	Wachendorff
Model	WDG58B-360-ABN-G24-K3
IP Rating	IP67, IP65
Mount Type	Clamping Flange Mount
Standards	DIN VDE 0160
Series	WDGI 58B
Overall Width	83mm
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-20°C
Shaft Diameter	10mm
Overall height	83mm
Switching Frequency	200kHz
Shaft Type	Solid
Terminal type	Cable and Connector
Pulses per Revolution	360ppr
Maximum Supply Voltage	30V dc
Encoder Technology	Incremental
Maximum Revolutions	8000rpm
Output Signal Type	HTL
Kubler Incremental Encoder, 360 ppr, Push Pull SignalBrand	Kubler
High protection class according to DIN 40 050	IP65 (shaft), IP67 (cover)

Key Features

Operates on 30V dc power supply ensuring stable performance.
Equipped with a solid 10 mm diameter shaft for robust mechanical coupling.
HTL output signal type provides reliable and noise-resistant signals.
Capable of handling maximum 8000 rpm rotational speed.
Mount type is clamping flange mount offering secure and stable installation.
Features IP65 protection on the shaft and IP67 on the cover for harsh industrial environments.
Temperature operating range from -20°C to 80°C suitable for diverse applications.
High switching frequency of 200 kHz supports fast signal response.

Product Description

Wachendorff WDG58B-360-ABN-G24-K3 Series Incremental Encoder is an industrial-grade rotary transducer designed for accurate measurement of rotational speed, position, distance, or rpm. This encoder operates on a 30V dc power supply and delivers an output of 360 pulses per revolution (ppr) using an HTL signal interface, making it suitable for demanding automation, electrical, and motion control sensor applications.

The encoder is engineered with a solid 10 mm diameter shaft and robust clamping flange mount, ensuring secure mechanical coupling and easy installation. The aluminium housing offers excellent durability and protection, rated IP65 on the shaft and IP67 on the cover, suitable for harsh environments commonly found in manufacturing, industrial automation, HVAC systems, and laboratory instrumentation.

Designed for high-speed operation up to 8000 rpm, it supports a maximum switching frequency of 200 kHz, allowing it to perform well in fast motion control systems. The unit functions reliably across a wide temperature range from -20°C to 80°C, meeting DIN VDE 0160 standards for electrical safety and quality compliance.

This encoder is ideal for industrial plants, factory automation lines, and precision machinery where monitoring and control of rotational movement are critical. Its rugged design and high protection standards enable operation under demanding conditions, enhancing operational reliability.

Operates at 30V dc with 360 pulses per revolution for precise measurement. Solid 10 mm shaft ensures robust mechanical engagement. HTL output signal offers noise-resistant incremental signals. IP65 shaft and IP67 cover protection suitable for harsh industrial environments.

Wide operating temperature range from -20°C to 80°C. Supports high switching frequency of 200 kHz for rapid response. Durable aluminium housing with clamping flange mount. High maximum speed of 8000 rpm for fast rotating equipment.

Designed according to DIN VDE 0160 safety standards. Explore more precise industrial sensors and encoders in the Incremental Encoder category at EnvMart for your automation and control gear needs.
