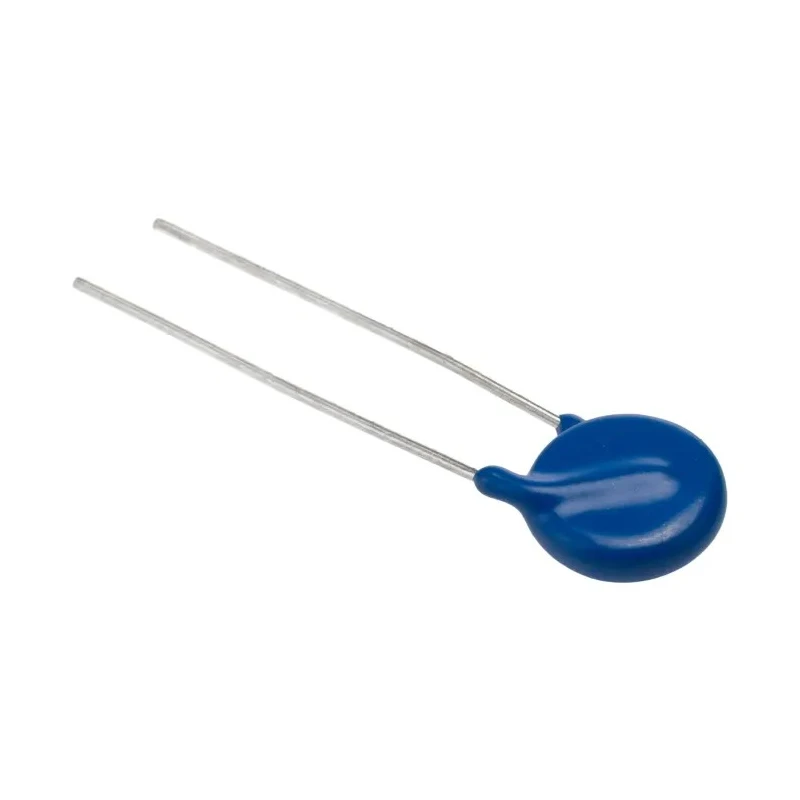

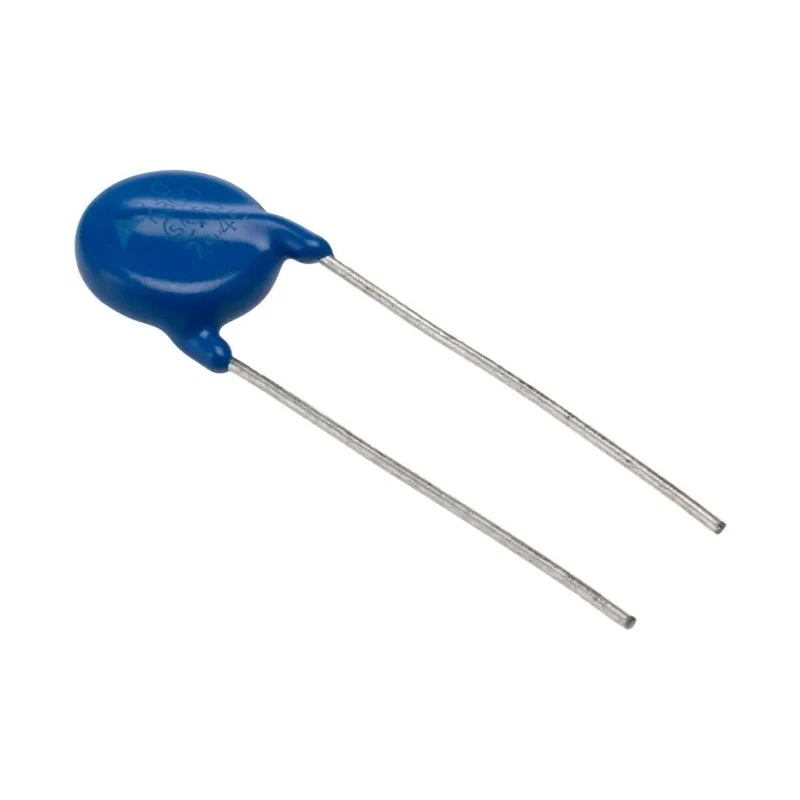

TDK Standard Metal Oxide Varistor 470 V Varistor Voltage, 200 pF Capacitance, 25 A Clamping Current, 775 V B72210S0301K101

Free Delivery in India | Lowest Global Shipping Charges

TDK Standard Metal Oxide Varistor 470 V Varistor Voltage, 200 pF Capacitance, 25 A Clamping Current, 775 V B72210S0301K101



Category Varistor Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	12mm
Brand	TDK
Material	Metal
THICKNESS	5.1mm
Length	14.5mm
Model	B72210S0301K101
Packaging	Bulk
Mount Type	Lead
Series	Standard
Energy Rating	47J
Maximum Operating Temperature	85°C
Capacitance	200pF
Minimum Operating Temperature	-40°C
Maximum dc Voltage	385V dc
Standards/Approvals	CSA, VDE, UL, CQC, EC
Pin Count	2
Termination Style	Solder
Lead Pitch	7.5mm
Maximum AC Voltage	300V ac
Clamping Voltage VC	775V
Clamping Current	25A
Maximum Surge Current	2.5kA
Varistor Voltage	470 V
Panasonic, V Surge Absorber 230 pF 25 A, Varistor 470 VBrand	Panasonic

Key Features

Rated clamping current of 25 A for effective voltage spike absorption.
Clamping voltage of 775 V ensures reliable surge suppression.
Constructed with metal oxide material for durability and optimal performance.
Leaded mount type with epoxy resin coating for environmental protection.
Operates effectively in temperatures ranging from -40°C to 85°C.
Compact dimensions with 12 mm diameter and 14.5 mm length for easy integration.
Holds maximum surge current capacity of 2.5 kA with energy rating of 47 J.
Standard series compliant with CSA, VDE, UL, CQC, and EC approvals.

Product Description

TDK B72210S0301K101 Standard Metal Oxide Varistor is engineered for reliable surge protection in electronic systems. Featuring a varistor voltage of 470 V and a capacitance of 200 pF, it effectively limits transient voltages and protects sensitive components from spikes. The metal oxide construction combined with an epoxy resin coating ensures durability and resistance to environmental factors, making it suitable for industrial electronics and power supply applications.

This varistor supports a high clamping current of 25 A and a clamping voltage of 775 V, providing robust suppression of voltage surges. It is designed with leaded mount type for convenient soldering on printed circuit boards. The device operates across a wide temperature range from -40°C up to 85°C, suitable for demanding environments.

Compact in size, it measures 12 mm in diameter and 14.5 mm in length with a thickness of 5.1 mm, facilitating integration in various assemblies. The Varistor can handle a maximum surge current of 2.5 kA with an energy rating of 47 J, ensuring strong transient energy absorption.

The product complies with major international standards and approvals including CSA, VDE, UL, CQC, and EC, assuring quality and safety for industrial and commercial use.

This component finds application in electronics manufacturing, power equipment, and protection circuits to enhance product longevity and operational reliability by mitigating transient voltage damage risks.

Rated clamping current of 25 A for effective voltage spike absorption. Clamping voltage of 775 V ensures reliable surge suppression. Metal oxide construction with epoxy resin coating for durability. Wide operational temperature range from -40°C to 85°C.

Compact size with 12mm diameter and 14.5mm length. Maximum surge current capacity of 2.5 kA and energy rating of 47 J. Leaded mount type with solder termination style. Compliant with CSA, VDE, UL, CQC, and EC standards. Suitable for use in electronic circuits and power supplies.

Protects electronic components from transient voltage spikes. Explore the extensive range of surge protection components at EnvMart to find compatible parts for your industrial and electronic applications.
