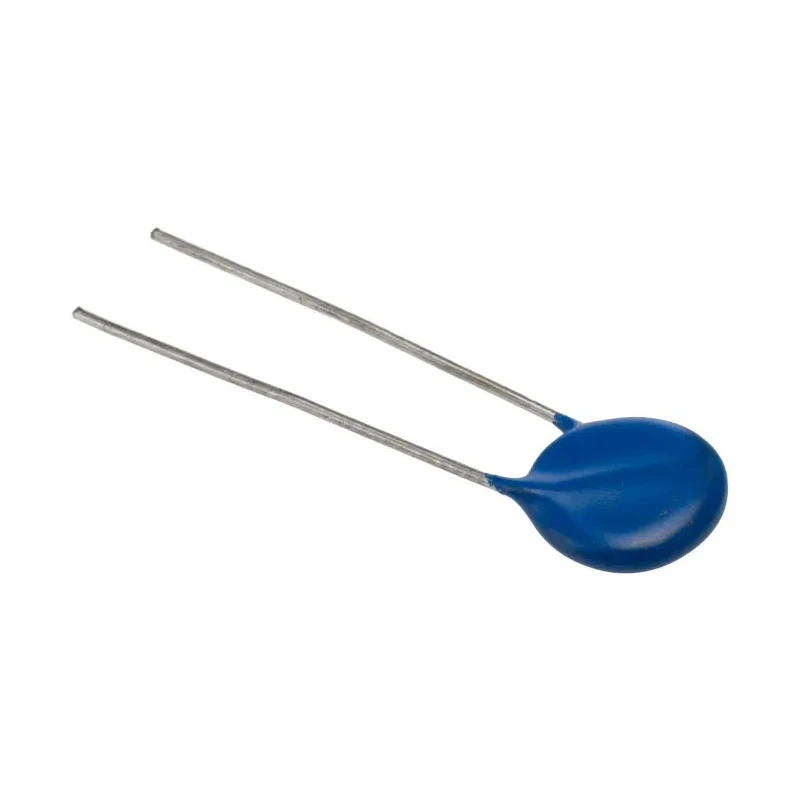

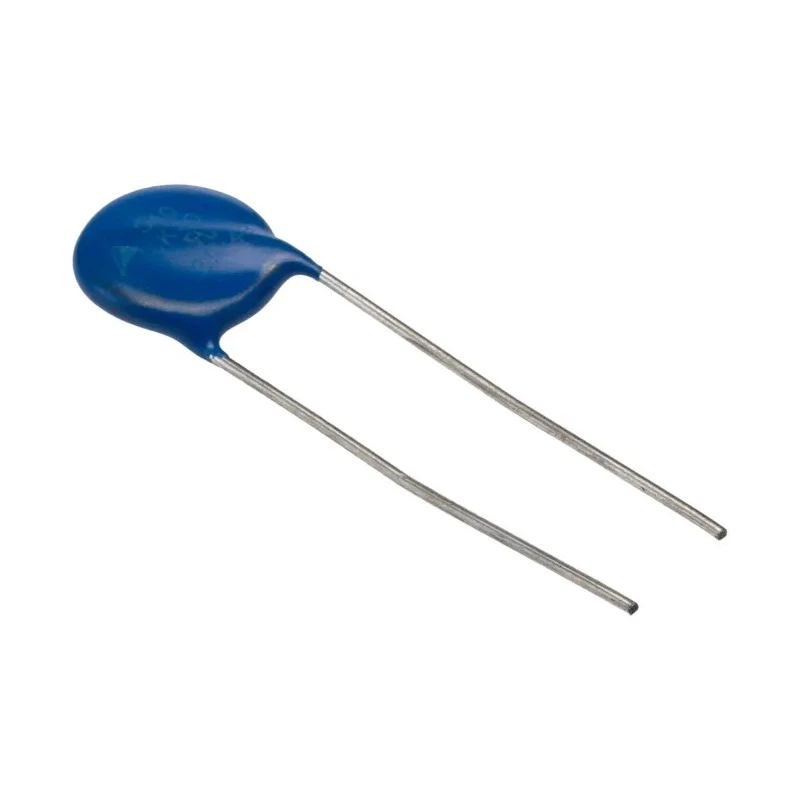

TDK Standard Metal Oxide Varistor 2.75 nF 5 A Clamping 2970 V B72210S0300K101

Free Delivery in India | Lowest Global Shipping Charges

TDK Standard Metal Oxide Varistor 2.75 nF 5 A Clamping 2970 V B72210S0300K101



Category Varistor Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	12mm
Brand	TDK
Material	Metal
THICKNESS	4.4mm
Length	39.5mm
Model	B72210S0300K101
Depth	4.4mm
Mount Type	Lead
Series	Standard
Energy Rating	1J
Maximum Operating Temperature	85°C
Capacitance	2.75nF
Minimum Operating Temperature	-40°C
Maximum dc Voltage	1465V dc
Standards/Approvals	IEC, CSA, VDE, UL, CQC
Pin Count	2
Termination Style	Radial
Lead Pitch	7.5mm
Maximum AC Voltage	1100V ac
Clamping Voltage VC	2970V
Clamping Current	5A
Maximum Surge Current	500A
Varistor Voltage	47 V
Wurth Elektronik, WE-VD Varistor 3.14 nF 5 A, Clamping 93 V, Varistor 47 VBrand	Wurth Elektronik
Panasonic, V Surge Absorber 4.6 nF 5 A, Clamping 93 V, Varistor 47 VBrand	Panasonic

Key Features

Metal oxide varistor with a varistor voltage of 47 V offers excellent voltage clamping performance.
Standard series with radial epoxy-coated ceramic body and tinned copper wire leads.
Rated for surge current up to 5 A (8/20 µs) and energy rating of 1 J at 2 ms pulse duration.
Operates safely between -40°C to 85°C for industrial and electronic component uses.
Lead mount with 2 pins and 7.5 mm lead pitch for straightforward PCB installation.
Maximum AC voltage of 1100 V and maximum DC voltage of 1465 V ensures robust protection.
Compact form factor with 12 mm diameter, 39.5 mm length, and 4.4 mm thickness.
Compliance with IEC, CSA, VDE, UL, and CQC standards guarantees quality and reliability.

Product Description

TDK B72210S0300K101 is a Standard Metal Oxide Varistor designed for efficient surge protection in electronic circuits. Featuring a capacitance of 2.75 nF and a varistor voltage of 47 V, this component can clamp transient voltages up to 2970 V, making it ideal for safeguarding sensitive equipment against voltage spikes.

The varistor is constructed with a ceramic body coated in epoxy resin and equipped with tinned copper wire leads, providing durability and reliable electrical performance. Its radial termination style and 7.5 mm lead pitch allow easy mounting on printed circuit boards.

Rated for a maximum surge current of 5 A with an energy rating of 1 J at a 2 ms pulse duration, this component supports a maximum AC voltage of 1100 V and a DC voltage ceiling of 1465 V. It is suitable for use in industrial, laboratory, electronic component manufacturing, and power supply protection applications where rapid voltage transient absorption is necessary.

The operating temperature range from -40°C to 85°C ensures stable performance under varied environmental conditions. This product complies with international standards including IEC, CSA, VDE, UL, and CQC, reflecting conformity with stringent quality and safety requirements.

Compact dimensions of 12 mm diameter, 39.5 mm length, and 4.4 mm thickness minimize space usage in electronic assemblies. Metal oxide varistor with 47 V varistor voltage provides excellent surge protection. Radial epoxy-coated ceramic body with tinned copper wire leads ensures durability.

Capacitance of 2.75 nF supports effective transient voltage absorption. Rated for 5 A surge current and 1 J energy rating at 2 ms pulse duration. Operating temperature range of -40°C to 85°C suits diverse industrial environments.

Compliant with IEC, CSA, VDE, UL, and CQC standards for safety and reliability. Compact physical size aids integration into dense electronic assemblies.

This Standard Metal Oxide Varistor from TDK is a reliable choice for applications requiring robust surge and transient voltage protection such as power supplies, industrial control systems, and electronic devices. Explore more high-quality electronic components and surge protection solutions on EnvMart.
