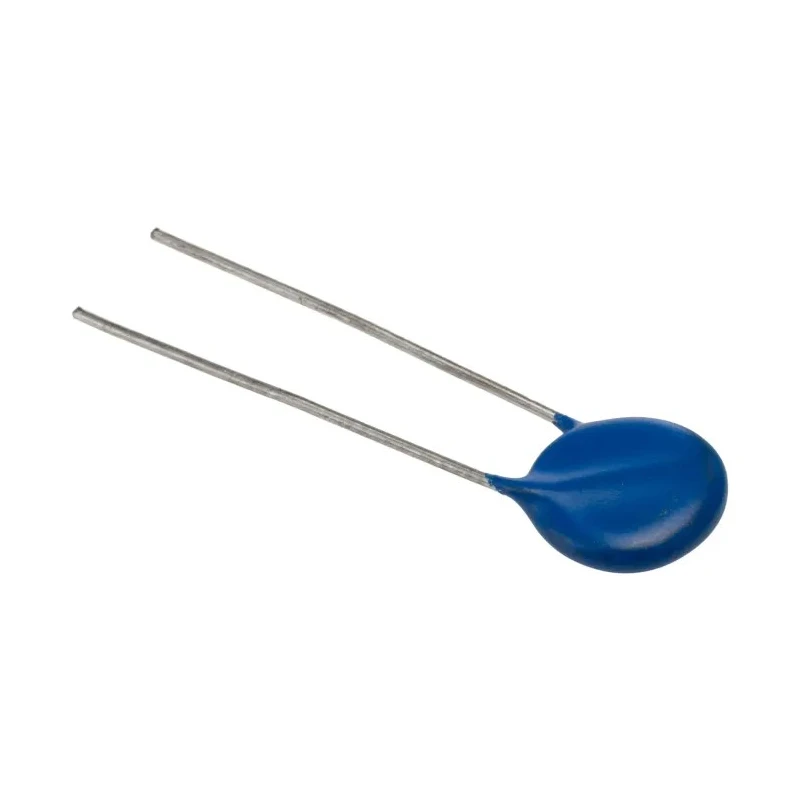

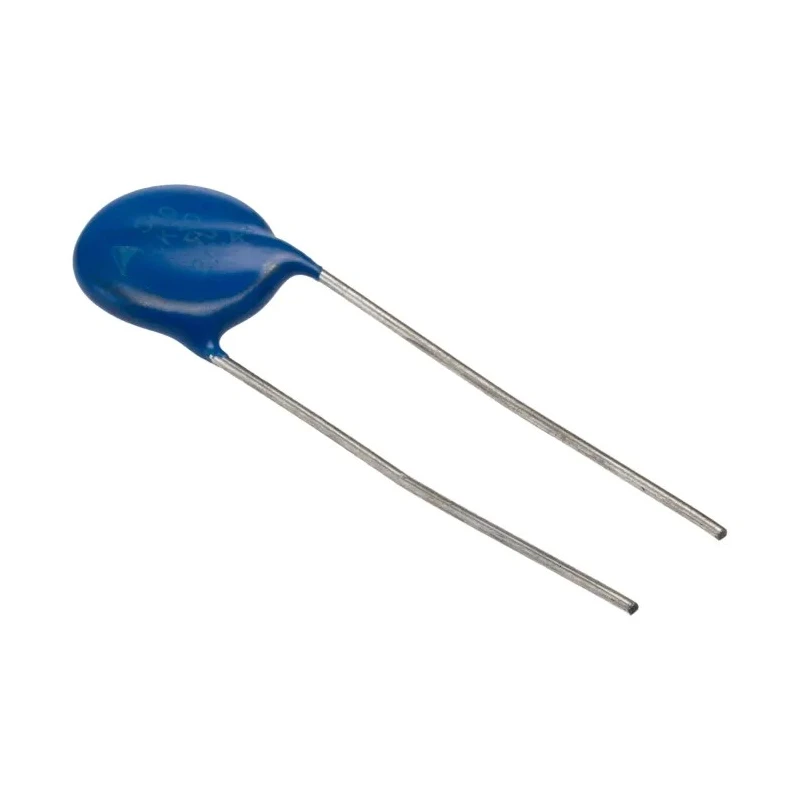

TDK Standard Metal Oxide Varistor 2.75nF 5A Clamping Voltage 2970V B72210S0300K101
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 12mm |
| Brand | TDK |
| Material | Metal |
| THICKNESS | 4.4mm |
| Length | 39.5mm |
| Model | B72210S0300K101 |
| Depth | 4.4mm |
| Mount Type | Lead |
| Series | Standard |
| Energy Rating | 1J |
| Maximum Operating Temperature | 85°C |
| Capacitance | 2.75nF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 1465V dc |
| Standards/Approvals | IEC, CSA, VDE, UL, CQC |
| Pin Count | 2 |
| Termination Style | Radial |
| Lead Pitch | 7.5mm |
| Maximum AC Voltage | 1100V ac |
| Clamping Voltage VC | 2970V |
| Clamping Current | 5A |
| Maximum Surge Current | 500A |
| Varistor Voltage | 47 V |
Key Features
- Epoxy-coated ceramic body ensures durability and electrical insulation.
- Radial lead termination with tinned copper wire for secure mounting.
- Clamping voltage rating of 2970V suitable for high surge environments.
- Operates reliably from -40°C to 85°C temperature range.
- Compliance with IEC, CSA, VDE, UL, and CQC standards for safety and quality.
- Energy rating of 1 joule enables handling of transient surges.
- Pin pitch of 7.5mm allows for standard PCB mounting.
Product Description
TDK B72210S0300K101 Standard Metal Oxide Varistor is engineered for robust surge protection in electronics and industrial applications. Featuring a 2.75nF capacitance and a clamping current rating of 5A, this varistor effectively diverts high transient voltages to protect sensitive circuits from damage.
The device encapsulates a ceramic varistor body coated with epoxy resin for enhanced mechanical and environmental endurance. Its radial tinned copper wire leads enable straightforward insertion and soldering on printed circuit boards.
With a clamping voltage of 2970V and maximum AC voltage rating of 1100V, it is well-suited for use in power supply surge suppression and other critical electronics protection scenarios.
The varistor operates reliably within a broad temperature range of -40°C to 85°C, ensuring stable performance under demanding conditions. Its compact dimensions of 39.5mm length and 12mm diameter optimize board space usage.
Certified to international standards including IEC, CSA, VDE, UL, and CQC, it guarantees compliance with rigorous quality and safety benchmarks. Epoxy-coated ceramic body ensures durability and electrical insulation. Radial lead termination with tinned copper wire for secure mounting.
Clamping voltage rating of 2970V suitable for high surge environments. Operates reliably from -40°C to 85°C temperature range. Compliance with IEC, CSA, VDE, UL, and CQC standards for safety and quality. Compact dimensions: 39.5mm length, 12mm diameter, and 4.4mm thickness.
Energy rating of 1 joule enables handling of transient surges. Pin pitch of 7.5mm allows for standard PCB mounting.
This Metal Oxide Varistor is ideal for industrial electronics, power supply protection, manufacturing equipment, and any application requiring surge suppression to enhance equipment longevity and reliability.
Explore the comprehensive range of electronics components on EnvMart for professional-grade solutions to your surge protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping voltage rating of this varistor is 2970V, making it suitable for high surge environments.
This model has a capacitance of 2.75nF.
It operates reliably within a temperature range of -40°C to 85°C.
The varistor has a length of 39.5mm, a diameter of 12mm, and a thickness of 4.4mm.
The maximum AC voltage rating is 1100V.
This varistor can handle a maximum surge current of 500A.
It features a radial lead termination style with tinned copper wire for secure mounting.
It complies with IEC, CSA, VDE, UL, and CQC standards for safety and quality.
The energy rating of this varistor is 1 joule, allowing it to handle transient surges effectively.
The pin pitch for this model is 7.5mm, suitable for standard PCB mounting.
The maximum DC voltage rating is 1465V.
The varistor features a metal oxide construction with an epoxy-coated ceramic body for durability and electrical insulation.
