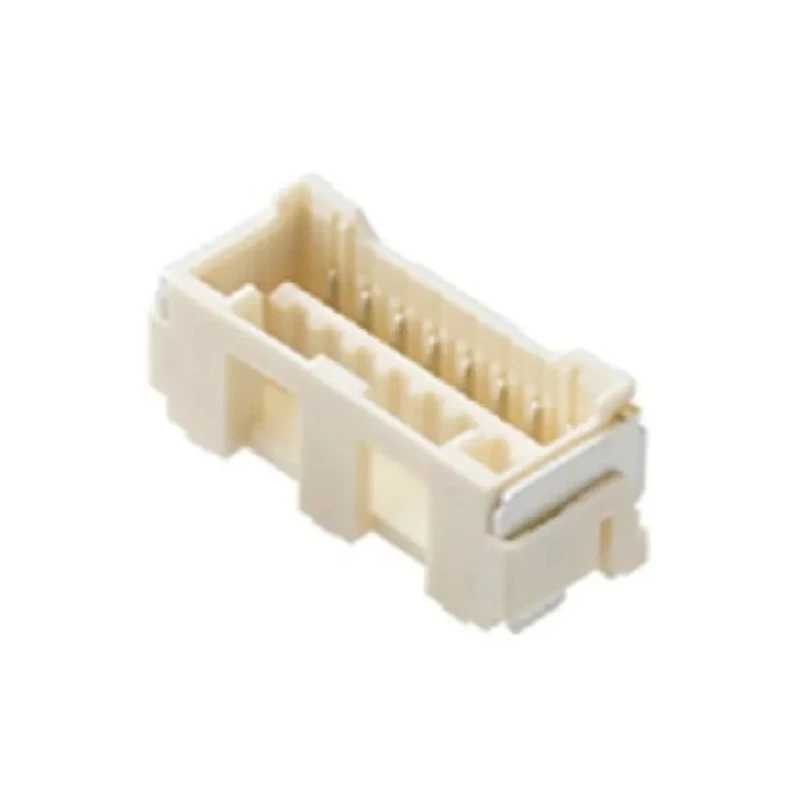

Molex 502584 Series Vertical Surface Mount PCB Socket, 3-Contact, 1 Row, 1.5 mm Pitch, 2A, 100V, Thermoplastic 502584-0360
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 100V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 2A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | 502584 |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 105°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.5mm |
| Standards/Approvals | CHINA RoHS, EU RoHS |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Connector System | Wire-to-Board |
Key Features
- The socket features a single row configuration facilitating compact PCB designs.
- It supports a current rating of 2 Amps and operating voltage of 100 Volts for standard electronic applications.
- The housing material is thermoplastic, providing durability and resistance in varying conditions.
- Designed for vertical orientation and surface mount termination, ensuring easy assembly on PCBs.
- Operating temperature ranges from -40°C up to 105°C accommodating industrial environments.
- The copper alloy contacts are plated with tin for reliable electrical conductivity.
- Complies with China RoHS and EU RoHS environmental directives for safety and compliance.
Product Description
Molex 502584-0360 is a vertical orientation PCB socket designed for surface mount applications, featuring 3 contacts arranged in a single row with a 1.5 mm pitch. This wire-to-board connector supports currents up to 2 Amps and voltages up to 100 Volts, making it suitable for a variety of electronic component applications including industrial, manufacturing, and commercial electronics.
The housing is made from robust thermoplastic material that ensures long-term reliability and performance in demanding environments. The socket operates efficiently within a temperature range from -40°C to 105°C, making it ideal for use in harsh conditions.
Contact points constructed from copper alloy are plated with tin to deliver excellent conductivity and resistance to corrosion. The connector’s vertical orientation and surface mount termination enable streamlined PCB assembly and compact layouts.
This product complies with key international environmental standards, including China RoHS and EU RoHS, demonstrating adherence to safe and sustainable manufacturing practices. The socket features a reliable single row, 3-contact configuration for efficient electrical connections.
It supports a continuous current of up to 2 Amps and voltage rating of 100 Volts, meeting typical electronic requirements. Thermoplastic housing material provides strength, chemical resistance, and longevity. Vertical surface mount design facilitates integration into modern PCB layouts with high density.
Operating temperature between -40°C and 105°C suits a wide range of industrial applications. The contact plating of tin over copper alloy ensures durability and stable electrical performance. Certified compliant with environmental standards EU RoHS and China RoHS, aiding regulatory compliance.
Ideal for electronic industrial manufacturing, automation systems, and power connectors for PCB equipment, this Molex 502584-0360 socket is a dependable wire-to-board interface. Its compact design and robust specifications cater to electronics engineers requiring quality and compliance in their designs.
Explore Molex connectors and PCB components on EnvMart for comprehensive solutions in electronic hardware assembly and maintenance.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a current rating of 2 Amps and an operating voltage of 100 Volts, making it suitable for standard electronic applications.
The socket features a 1.5 mm pitch with a single row configuration and includes 3 contacts arranged vertically.
The housing material is thermoplastic, while the contacts are made from copper alloy and plated with tin for reliable conductivity.
It operates efficiently within a temperature range from -40°C to 105°C, accommodating various industrial environments.
This model is designed for surface mount termination, facilitating easy assembly on printed circuit boards.
The socket complies with China RoHS and EU RoHS environmental directives, ensuring safety and compliance in manufacturing.
It utilizes a wire-to-board connector system, which is common for connecting wires directly to a PCB.
This model is designed for vertical orientation, allowing for compact layouts on PCBs.
The contact gender of this PCB socket is male, suitable for connecting to female counterparts on PCBs.
The contacts are plated with tin, which enhances electrical conductivity and provides resistance to corrosion.
The country of origin for this PCB socket is Japan.
This socket is suitable for various electronic component applications, including industrial, manufacturing, and commercial electronics.
