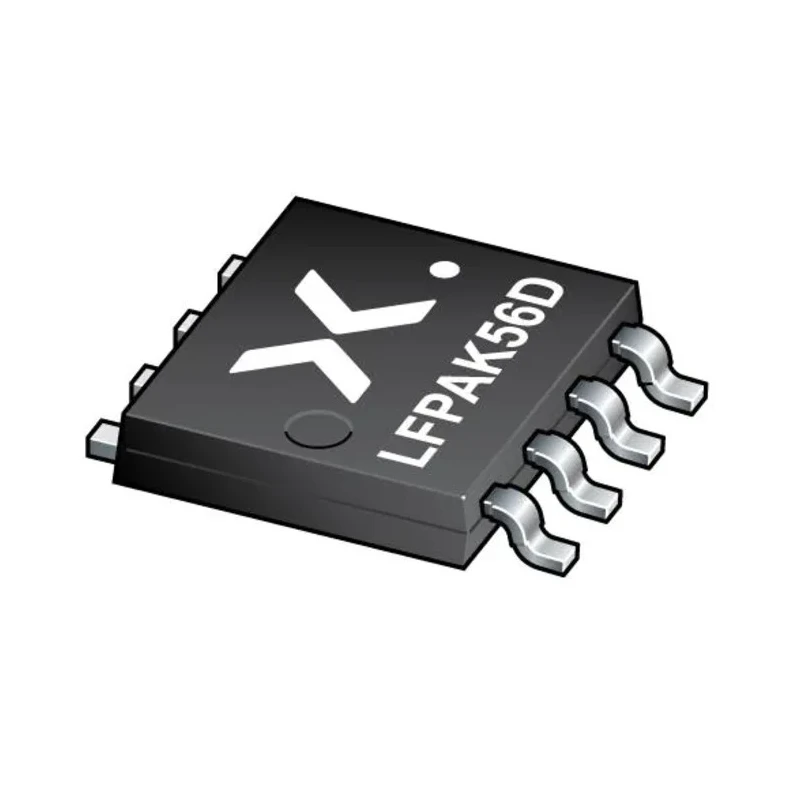

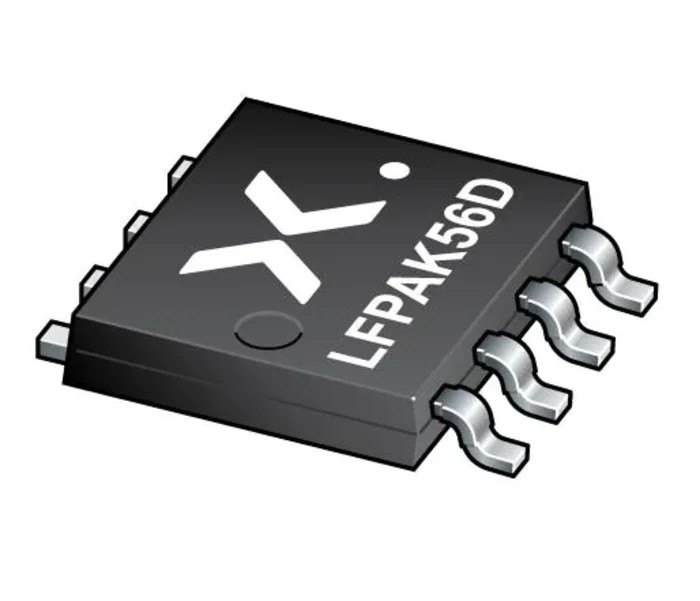

Nexperia Dual Standard Level N-Channel MOSFET 42 A, 40 V, 8-Pin LFPAK56D Surface Mount PSMN013-40VLDX

The Nexperia PSMN013-40VLDX is a dual standard level N-channel MOSFET designed using advanced Next power S3 technology. It features a half-bridge configuration housed in a compact 8-pin LFPAK56D surface mount package, where the source of the high-side FET is internally connected to the drain of the low-side FET. This design reduces PCB layout complexity and minimizes parasitic inductance, enabling higher operational efficiency and reliability.

This MOSFET supports a maximum continuous drain current of 42 A and a maximum drain-to-source voltage of 40 V, making it suitable for high-performance pulse width modulation (PWM) and space-constrained motor drive applications such as brushless and brushed DC motors. It delivers low power losses with an excellent avalanche robustness, supporting repetitive avalanche conditions for enhanced durability.

The device can operate across a wide temperature range from -55°C to 175°C and dissipates up to 46 W of power, supporting high power density configurations. The LFPAK56D package's robust copper clip construction provides excellent thermal management and mechanical reliability, making it ideal for handheld power tools, portable appliances, LED lighting systems, and DC-to-DC converters.

The PSMN013-40VLDX reduces component count in power modules, supporting compact and efficient electronics design. This MOSFET is well-suited for industrial, laboratory, construction, HVAC, manufacturing, water treatment, agricultural, and commercial applications where reliable, high-efficiency power switching is crucial.

Utilizes Next power S3 technology for efficient power switching. Designed in a half-bridge configuration ideal for PWM and motor drive applications. Reduces PCB layout complexity through internal source-drain connections.

Supports high efficiency with low power losses and superior avalanche performance. Robust LFPAK copper clip packaging ensures high reliability. Suitable for handheld power tools, portable appliances, and space constrained electronics.

Ideal for brushless or brushed DC motor drives and DC-to-DC power systems. Offers extended operating temperature range from -55°C to 175°C. Maximum power dissipation of 46 W enables high power density. Repetitive avalanche rated for durability under demanding conditions.
