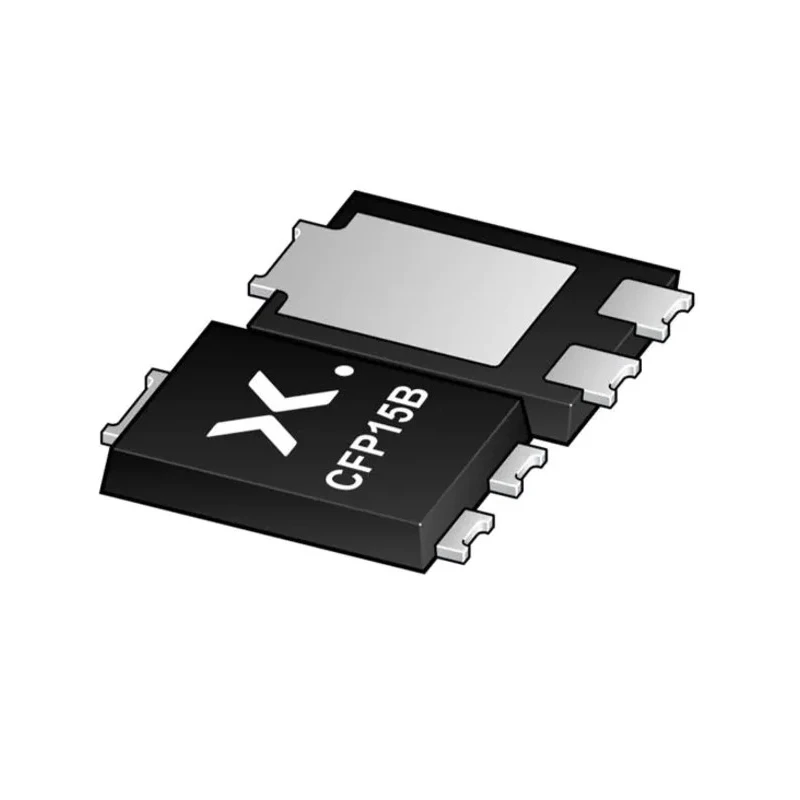

Nexperia 100 V 3 A Trench MEGA Schottky Barrier Rectifier 3-Pin CFP15B PMEG100T030ELPEZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PMEG100T030ELPEZ |
| Mount Type | PCB |
| Series | PMEG |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15B |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Trench MEGA Schottky |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 710mV |
| Peak Reverse Recovery Time trr | 12ns |
Key Features
- Features low forward voltage and leakage current for efficient power conversion.
- Encapsulated in a compact CFP15B surface mounted plastic package suitable for PCB mounting.
- Supports maximum continuous forward current of 3 A and peak repetitive voltage of 100 V.
- High surge current capability of up to 100 A for short durations.
- Fast recovery time of 12 nanoseconds ensures high switching speed performance.
- Wide operating temperature range from -55°C up to 175°C for reliable operation in harsh environments.
- Conforms to the AEC-Q101 automotive standard ensuring robustness and quality.
- Ideal for automotive LED lighting, DC-to-DC converters, and reverse polarity protection circuits.
Product Description
Nexperia PMEG100T030ELPEZ is a high-performance Schottky Barrier Rectifier featuring Trench MEGA Schottky technology packaged in a 3-pin CFP15B (SOT1289B) surface mount device designed for PCB assembly. It provides low leakage current and low forward voltage, optimizing efficiency in electronic power conversion systems.
With a maximum continuous forward current rating of 3 A and a peak reverse repetitive voltage of 100 V, this diode is engineered to handle demanding automotive and industrial applications safely. The device supports an impressive peak non-repetitive forward surge current of 100 A, allowing it to withstand transient high currents without damage.
The rectifier features a fast peak reverse recovery time of 12 nanoseconds and a maximum operating temperature of 175°C, making it suitable for high-speed switching applications in challenging thermal environments. The device complies with AEC-Q101 automotive standards, guaranteeing durability and quality for automotive electronics.
Typical applications include automotive LED lighting, reverse polarity protection, freewheeling diode use in switch mode power supplies, OR-ing circuits, and high-efficiency DC-to-DC converters. The compact flat lead plastic SMD package enables easy integration into modern, space-constrained electronic assemblies.
Low forward voltage and leakage current enhance energy efficiency. Trench MEGA Schottky technology improves performance and thermal handling. AEC-Q101 automotive standard certification ensures reliability in automotive environments.
Surface mount CFP15B package facilitates automated PCB assembly. High surge capability supports transient current protection.
This product supports industrial, automotive, and general electrical engineering applications requiring high-quality Schottky barrier rectifiers with superior thermal and electrical characteristics. Explore a broad range of semiconductors and power electronic components in the same category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 3 A.
This rectifier has a peak reverse repetitive voltage rating of 100 V.
It is packaged in a CFP15B surface mount device suitable for PCB assembly.
The operating temperature range is from -55°C to 175°C.
The rectifier can handle a peak non-repetitive forward surge current of up to 100 A.
The peak reverse recovery time is 12 nanoseconds.
It conforms to the AEC-Q101 automotive standard.
This model is a Trench MEGA Schottky rectifier.
The maximum forward voltage is 710 mV.
It is suitable for automotive LED lighting, DC-to-DC converters, and reverse polarity protection circuits.
This rectifier has a total of 3 pins.
The peak reverse current is rated at 3 mA.
