Nexperia Resistor-Equipped Transistor 100 mA NPN, 50 V, 3-Pin DFN1412D-3 PDTC114EQCZ

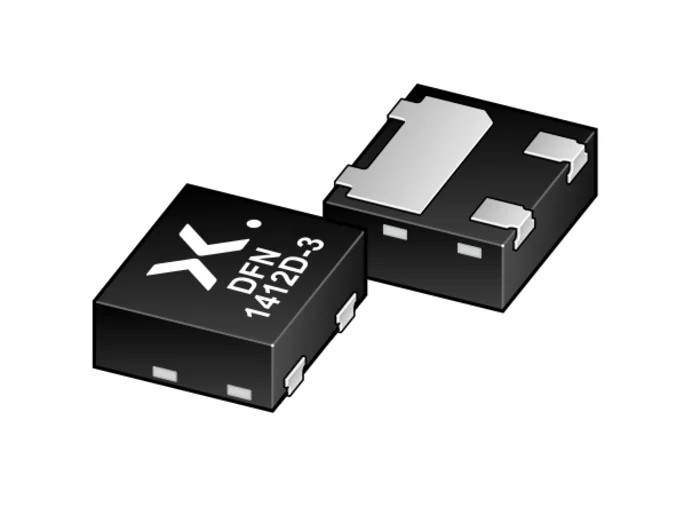

Nexperia PDTC114EQCZ resistor-equipped NPN transistor is designed for efficient digital and switching applications in an ultra-compact 3-pin DFN1412D-3 surface-mounted package. It features integrated resistors to simplify circuit design, reduce overall component counts, and lower assembly costs.

The device supports a maximum DC collector current of 100 mA and a collector-emitter voltage rating of 50 V, making it suitable for controlling IC inputs and moderate load switching.

With a low package height of 0.5 mm and side-wettable flanks, the transistor supports automated optical inspection (AOI) for reliable manufacturing quality assurance. Operating temperature range spans from -55°C to 150°C, ensuring robust performance under diverse environmental conditions encountered in automotive and industrial applications.

This transistor provides a cost-effective alternative to the BC857 series in digital circuits, complying with RoHS directives and meeting the automotive standard AEC-Q101. Compact leadless surface mount plastic package with side-wettable flanks.

Maximum DC collector current: 100 mA. Maximum collector-emitter voltage: 50 V. Integrated resistor-equipped design reduces component count and pick and place costs. Low-profile 0.5 mm package height suitable for automated inspection.

High transition frequency of 250 MHz enhances switching performance. Wide temperature operating range: -55°C to 150°C. Compliance with RoHS and automotive standard AEC-Q101. Ideal for digital switching, controlling IC inputs, and load switching applications.

This transistor is well-suited for electronic, automotive, industrial, and digital circuit manufacturing environments where miniaturization, performance, and cost-efficiency are critical.
