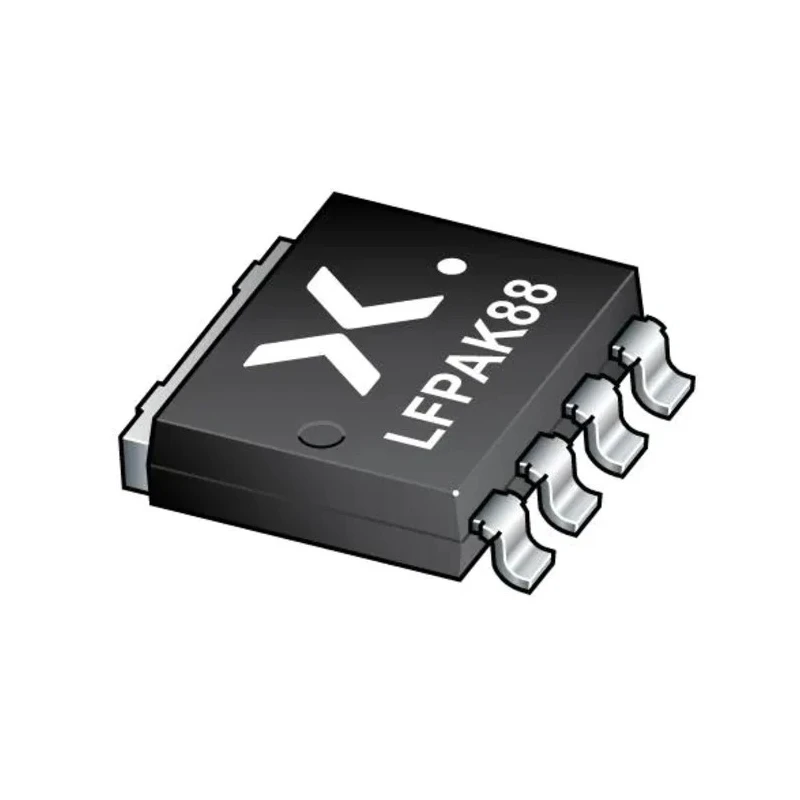

Nexperia N-Channel MOSFET 10.3A 30V 4-Pin LFPAK88 BUK7S2R0-40HJ

Nexperia BUK7S2R0-40HJ is an N-Channel MOSFET designed for high performance power switching applications. Featuring a maximum continuous drain current of 10.3 A and a drain-source voltage rating of 30 V, this device supports demanding automotive, industrial, and electronic systems.

The MOSFET is housed in a 4-pin LFPAK88 surface-mount package with a copper clip that greatly improves thermal dissipation. It achieves maximum power dissipation of 81 W, making it suitable for thermally challenging environments. The device operates reliably over a wide temperature range from -55°C up to 175°C, allowing use in harsh and automotive-grade applications.

Incorporating advanced Trench 9 low ohmic super junction technology, the BUK7S2R0-40HJ offers low on-resistance (13.6 mΩ), increased current capability, and excellent current spreading. Its low source inductance and enhanced solderability facilitate efficient PCB assembly and robust mechanical joints.

Typical industrial applications include 12 V automotive electrical systems, 48 V DC/DC converters, higher power motors, lamp controls, and solenoid actuators. It provides reverse polarity protection and ultra-high-performance power switching to meet demanding control requirements.

Maximum continuous drain current of 10.3 A supports demanding power applications. Compact LFPAK88 package with copper clip enables superior thermal efficiency. Wide temperature range operation from -55°C to 175°C. Low maximum drain-source resistance of 13.6 mΩ improves conduction efficiency.

Surface mount 4-pin layout with easy solder wetting for reliable mechanical joints. Designed and qualified beyond AEC-Q101 standards for automotive reliability. Ideal for automotive 12 V and 48 V secondary side power systems.

High power dissipation capacity of 81 W for thermally demanding environments. Discover cutting-edge products engineered for automotive, industrial, and commercial power electronics applications.
