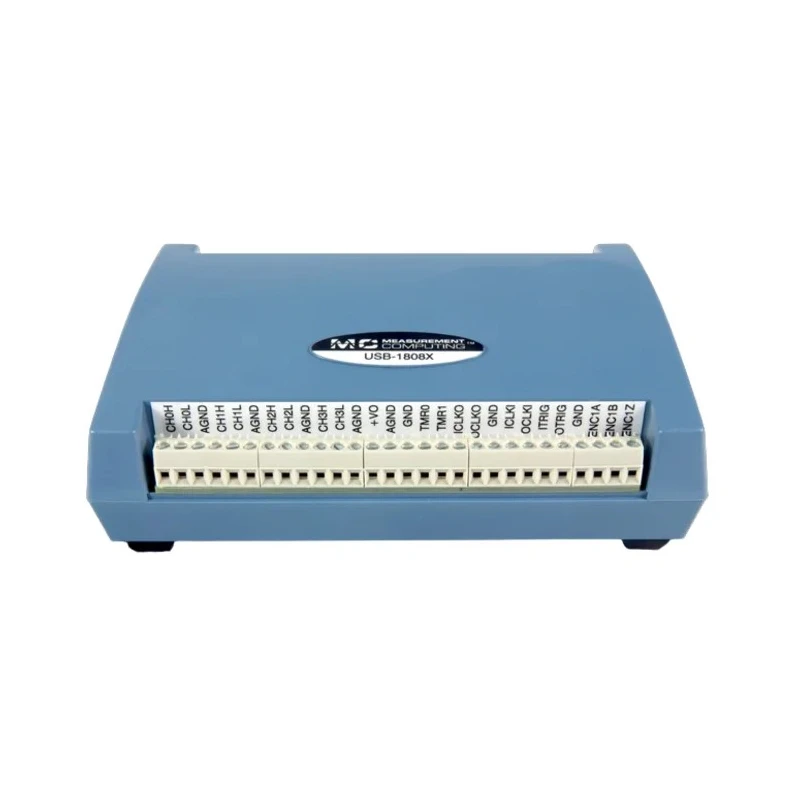

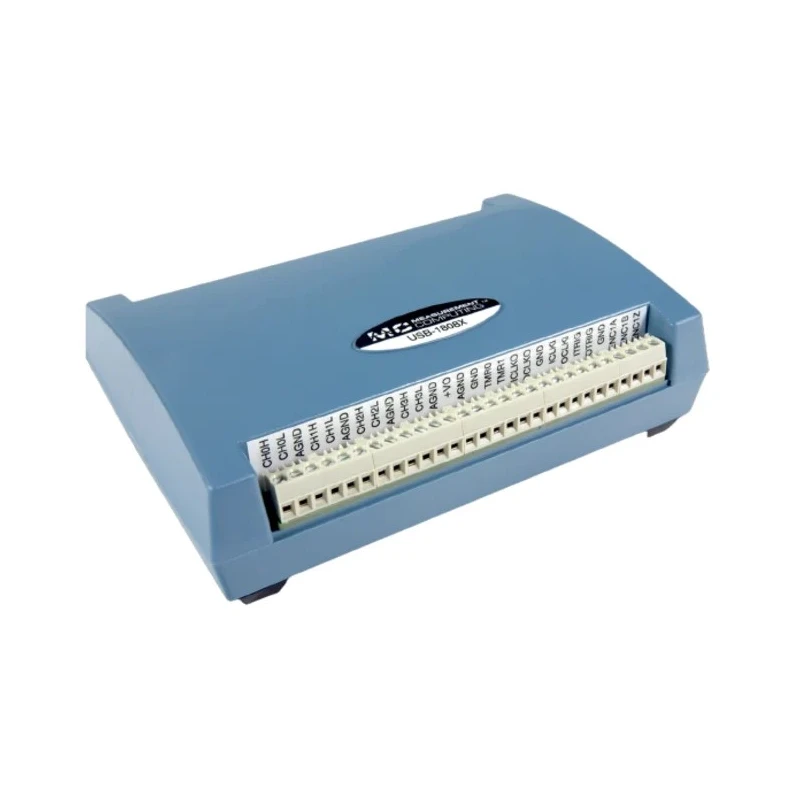

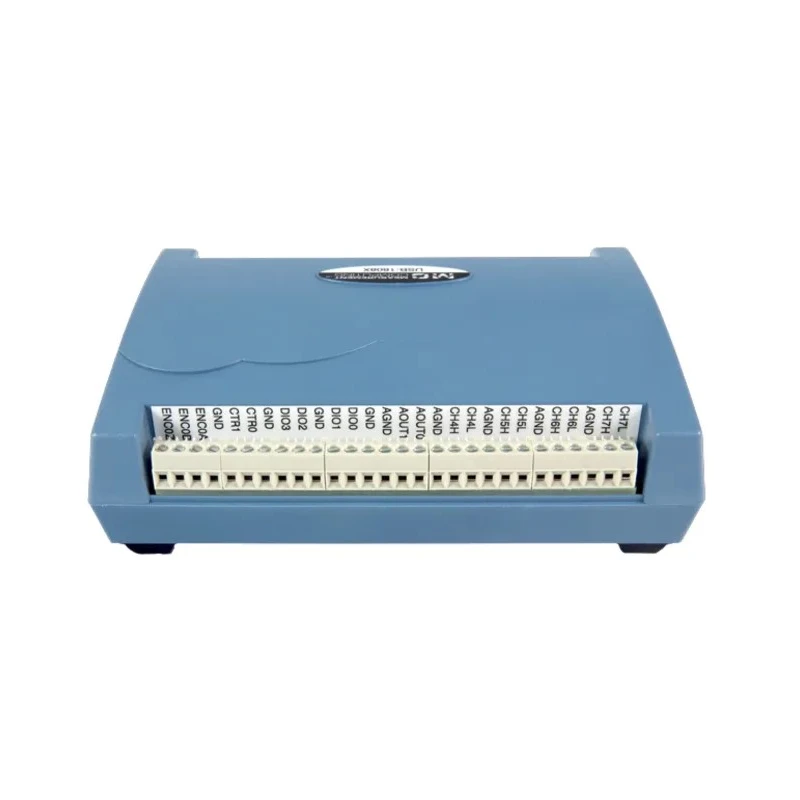

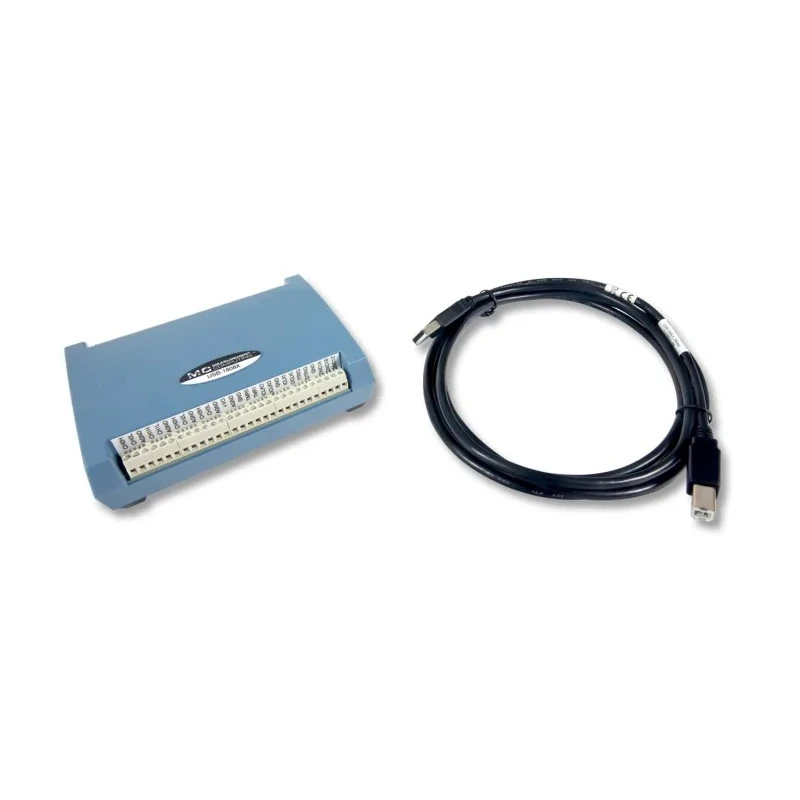

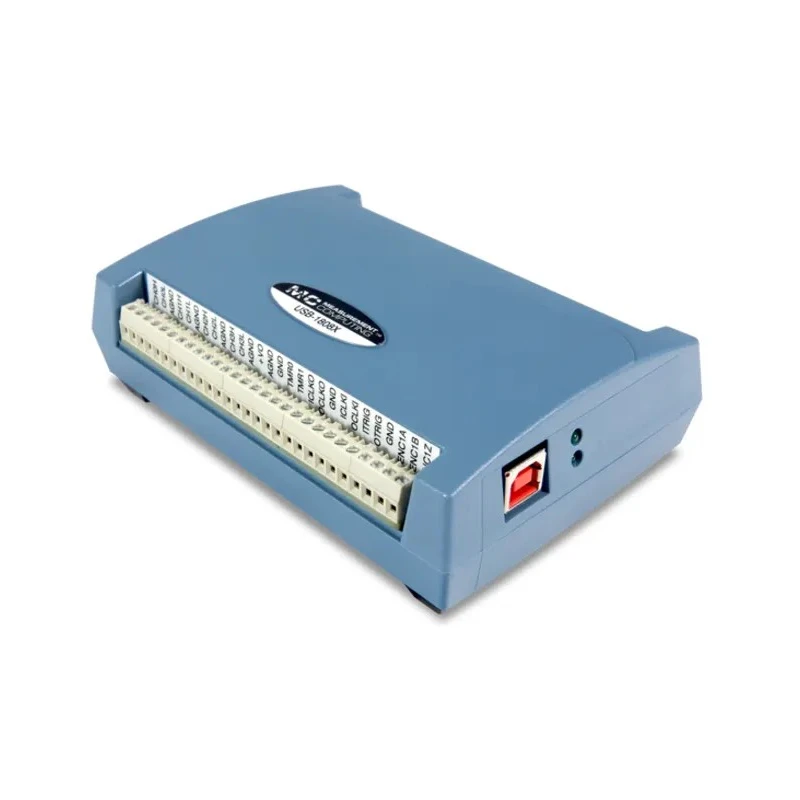

Digilent Data Acquisition Device USB-1808X 8-Channel 200 ksps 18 Bit MCC USB-1808X 6069-410-014
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 18 bit |
| Brand | Digilent |
| Height | 35.6mm |
| Length | 127mm |
| Connectivity | USB |
| Width | 89.9mm |
| Sampling rate | 200ksps |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 8 |
Key Features
- Sampling rate of 200 ksps per channel ensures fast and accurate data acquisition.
- Features 8 single-ended and differential analog inputs for versatile signal measurement.
- Includes two 16-bit analog outputs for precise control applications.
- Equipped with four digital inputs and outputs to expand interfacing options.
- Supported by two counter inputs and two quadrature encoder inputs for advanced counting and position sensing.
- Operates from USB power with no external power supply required.
- Compact dimensions of 127 mm length, 89.9 mm width, and 35.6 mm height.
- Designed to operate reliably between 0°C and 55°C ambient temperature.
Product Description
The Digilent MCC USB-1808X (model 6069-410-014) is a professional-grade data acquisition device engineered for precise and simultaneous measurement of analog signals. With 8 channels capable of 18-bit resolution sampling at 200 ksps, it provides high accuracy and speed for industrial, laboratory, and manufacturing testing environments.
This Data Acquisition System features 8 single-ended and differential analog inputs allowing flexible signal collection. Two 16-bit analog outputs enable analog signal generation or control while four digital input/output ports provide versatile interfacing capabilities. Additionally, it includes two counter inputs and two quadrature encoder inputs suited for precise counting and position measurements.
The unit is powered through USB connectivity, eliminating the need for any external power supply. Its compact size, measuring 127 mm long, 89.9 mm wide, and 35.6 mm high, ensures easy integration into test setups. It operates reliably within an ambient temperature range of 0°C to 55°C, suitable for diverse operational conditions.
This product supports applications across industrial instruments, laboratory research, manufacturing process control, and data logging scenarios requiring high-speed, high-resolution analog data acquisition with simultaneous multi-channel capabilities.
200 ksps sampling rate per channel ensures rapid and precise data capture. Eight separate analog input channels provide extensive measurement capability. Dual 16-bit analog outputs enhance control system precision. Four digital input/output lines allow expanded connectivity.
Two counters and two quadrature encoder inputs support advanced sensing and counting. USB powered for convenient and portable operation. Compact dimensions support flexible installation in varied environments. Operational temperature range from 0°C to 55°C ensures stable performance.
Explore this Digilent MCC USB-1808X data acquisition device for your precise multi-channel analog measurement needs. Discover more professional-grade data acquisition products in the Measuring & Testing Instruments category at EnvMart.
