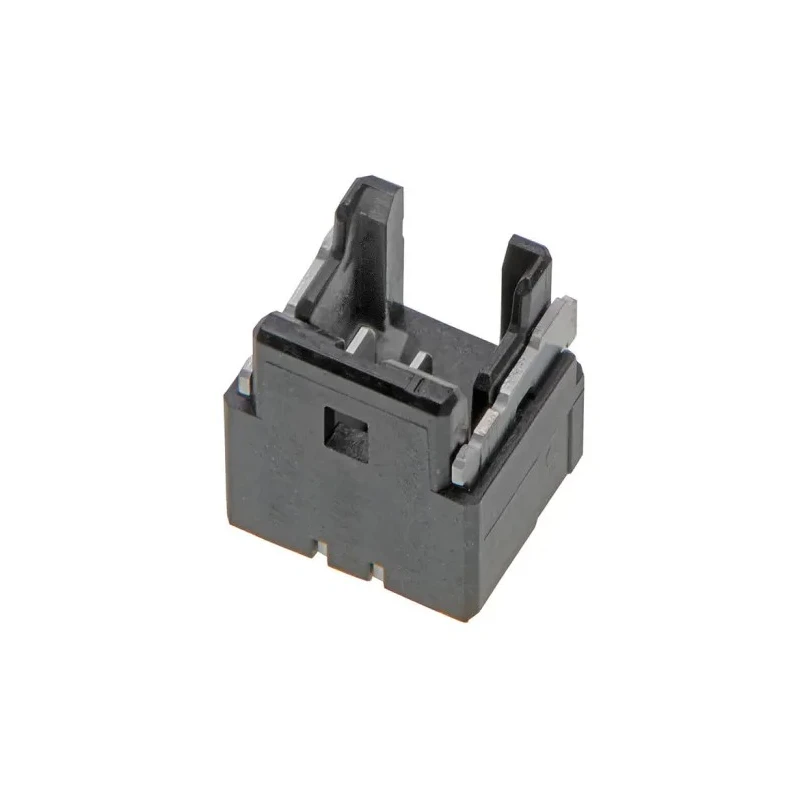

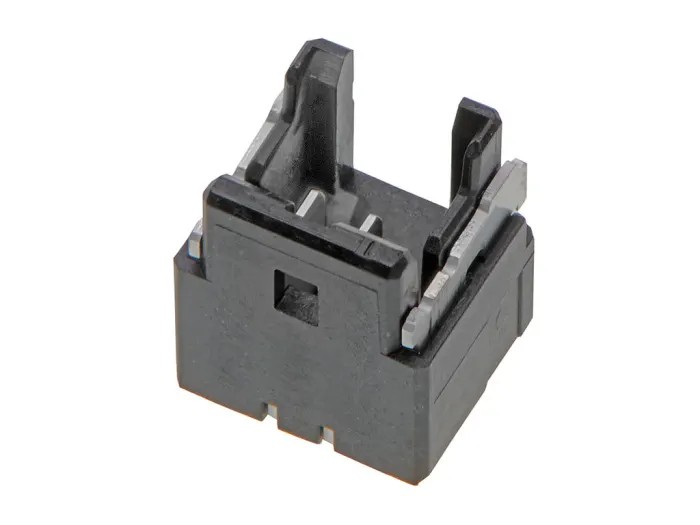

Molex OneBlade Series Vertical Surface PCB Header, 4 Contact(s), 1 mm Pitch, 2 Row, Shrouded 214094-0040
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | Molex |
| Orientation | Vertical |
| Current | 2.5A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | OneBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Standards/Approvals | EU RoHS China RoHS Compliant |
| Contact Plating | Matt Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 2mm |
Key Features
- Features a vertical wire-to-board connector system designed for surface mounting.
- Constructed with polyamide housing for durability and insulation.
- Employs brass contacts plated with matt tin for reliable conductivity.
- Operates safely up to 2.5A current and voltage up to 100Vrms.
- Offers operating temperature range between -40°C and 105°C for diverse environments.
- Designed with a shrouded, male contact gender and 2 mm mating pin length for secure connections.
- Compliant with EU RoHS and China RoHS environmental standards.
Product Description
Molex 214094-0040 OneBlade Series Vertical Surface PCB Header provides a reliable wire-to-board connector solution with a 1 mm pitch and shrouded design, featuring 4 contacts arranged in 2 rows for optimal PCB interconnects. It is engineered to withstand operating temperatures ranging from -40°C to 105°C, suitable for industrial, electronic component assembly, and manufacturing applications where secure and durable PCB connections are crucial.
This header incorporates a polyamide housing and brass contacts plated with matt tin, ensuring durability and excellent electrical conductivity. The male contact gender and mating pin length of 2 mm enhance connector engagement, while the surface mount type facilitates easy PCB assembly.
The connector system supports a maximum current of 2.5 A and voltage up to 100 Vrms, meeting requirements for a wide range of electronics. The shrouded design increases safety by preventing accidental disconnections.
Compliance with EU RoHS and China RoHS standards emphasizes the product’s environmental friendliness and adherence to global regulations. The component originates from Korea, Republic Of, assuring international manufacturing quality standards.
This connector is ideal for electronics manufacturing, testing labs, HVAC controls, and other industrial sectors requiring compact, high-quality PCB connection interfaces. Features a vertical wire-to-board connector system designed for surface mounting.
Constructed with polyamide housing for durability and insulation. Employs brass contacts plated with matt tin for reliable conductivity. Operates safely up to 2.5A current and voltage up to 100Vrms. Offers operating temperature range between -40°C and 105°C for diverse environments.
Designed with a shrouded, male contact gender and 2 mm mating pin length for secure connections. Compliant with EU RoHS and China RoHS environmental standards. Explore additional Molex PCB connectors at EnvMart to support your industrial and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates safely up to 2.5A current and voltage up to 100Vrms.
It has an operating temperature range between -40°C and 105°C, making it suitable for diverse environments.
The housing is constructed from polyamide, and the contacts are made of brass plated with matt tin for reliable conductivity.
This unit features 4 contacts arranged in 2 rows.
The pitch size for this connector is 1 mm.
Yes, it is compliant with EU RoHS and China RoHS environmental standards.
It uses a solder termination type for secure connections.
The contacts in this model are male, designed for secure connections.
This connector is designed for surface mounting, facilitating easy PCB assembly.
The mating pin length for this model is 2 mm, enhancing connector engagement.
The country of origin for this product is Korea, Republic Of.
It is ideal for electronics manufacturing, testing labs, HVAC controls, and other industrial sectors requiring compact PCB connections.
