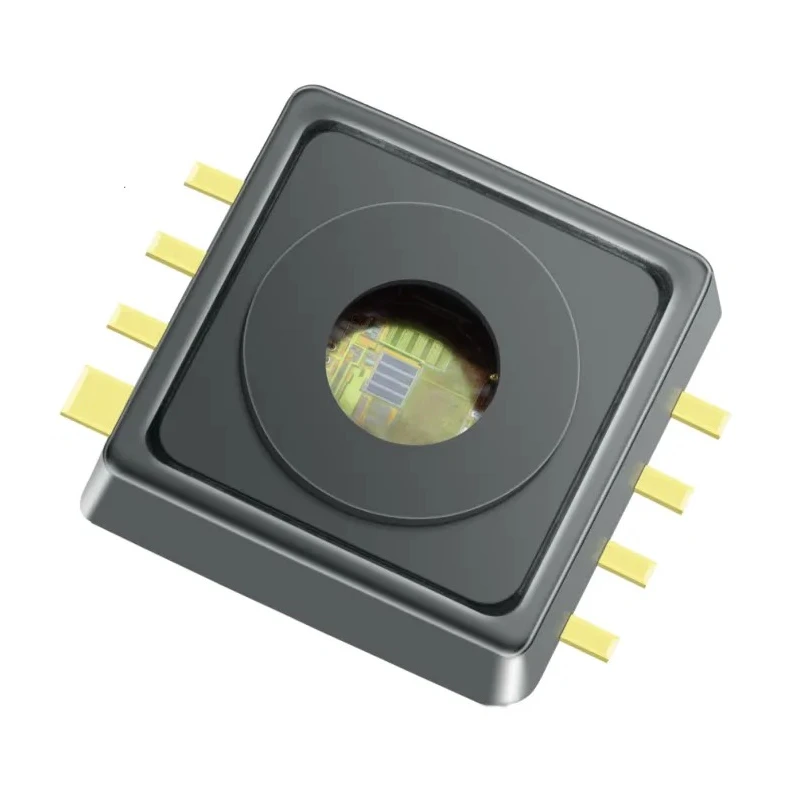

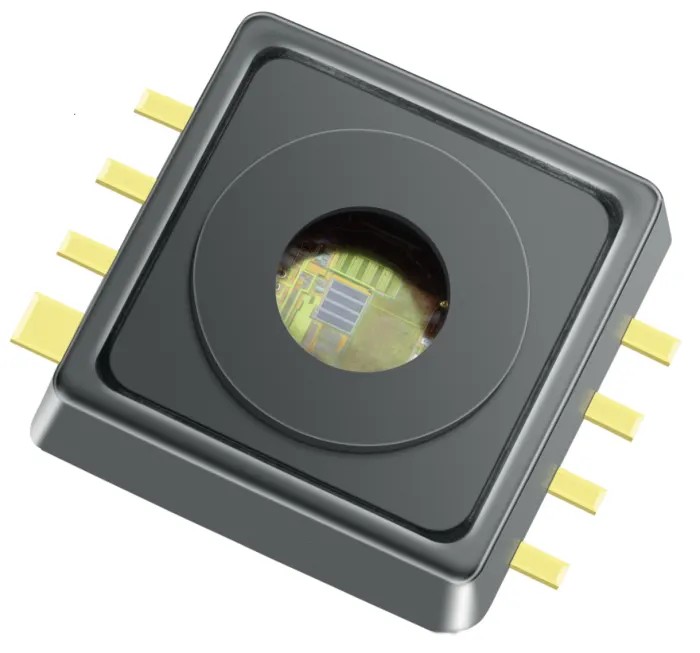

Infineon Analogue Absolute Pressure Sensor , Surface Mount PG-DSOF-8, 8 Pins, 4.5-5.5V, ±3.8 kPa Accuracy KP226E3408XTMA1
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±3.8 kPa |
| Brand | Infineon |
| Height | 2.8mm |
| Length | 7mm |
| Model | KP226E3408XTMA1 |
| Sensor Type | Absolute Pressure Sensor |
| Mount Type | Surface |
| Series | KP226E3408 |
| Maximum Operating Temperature | 140°C |
| Package Type | PG-DSOF-8 |
| Minimum Operating Temperature | -40°C |
| Typical Sensitivity | 11.2mV/kPa |
| Standards/Approvals | RoHS |
| Maximum Output Voltage | 4.65V |
| Pin Count | 8 |
| Automotive Standard | AEC |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Minimum Output Voltage | 350mV |
| Minimum Operating Pressure | 15kPa |
| Maximum Overload Pressure | 400kPa |
Key Features
- Operates with a supply voltage range of 4.5V to 5.5V.
- Offers an accuracy of ±3.8 kPa for precise pressure measurement.
- Supports maximum operating pressure and overload pressure of 400 kPa.
- Features 8 pins in a PG-DSOF-8 surface mount package for PCB integration.
- Compatible with automotive applications and meets AEC automotive standards.
- Wide operating temperature range from -40°C to 140°C.
- Typical sensitivity of 11.2 mV/kPa ensures responsive sensor output.
Product Description
Infineon KP226E3408XTMA1 analogue absolute pressure sensor is a high-performance sensor designed for accurate pressure sensing in automotive, industrial, and consumer applications. This sensor offers a surface mount package type PG-DSOF-8 with 8 pins, enabling easy integration onto printed circuit boards. It operates reliably under a supply voltage range of 4.5 to 5.5 volts, delivering a consistent output voltage up to 4.65 V and a minimum output voltage of 350 mV.
The sensor provides high accuracy with a maximum deviation of ±3.8 kPa and a typical sensitivity of 11.2 mV per kPa, which ensures precise pressure measurements. It supports absolute pressure measurements with a minimum operating pressure of 15 kPa and maximum operating pressure of 400 kPa, including a maximum overload pressure of 400 kPa, making it robust for varied pressure conditions.
Designed to withstand harsh environments, the KP226E3408XTMA1 operates across a wide temperature range from -40°C up to 140°C, meeting automotive industry standards including AEC qualification. Its compact dimensions of 7 mm length and 2.8 mm height enable use in space-constrained designs.
This sensor is RoHS compliant, aligning with environmental safety standards. Applications include engine control units (ECU), industrial monitoring, HVAC systems, and advanced automotive pressure sensing tasks requiring high sensitivity and reliability.
High precision pressure sensing with ±3.8 kPa accuracy. Wide operating temperature range from -40°C to 140°C. Surface mount PG-DSOF-8 package with 8 pins for ease of PCB assembly. Strict compliance with automotive AEC standards for quality assurance.
Supports absolute pressure measurement for various industrial uses. RoHS compliant for environmentally friendly design. Explore the comprehensive range of Infineon sensors on EnvMart to meet your industrial, automotive, and laboratory pressure sensing requirements.
Explore more products in our Pressure Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor offers an accuracy of ±3.8 kPa for precise pressure measurement.
It operates with a supply voltage range of 4.5V to 5.5V.
The maximum operating pressure is 400 kPa, with a minimum operating pressure of 15 kPa.
This model operates across a wide temperature range from -40°C to 140°C.
The typical sensitivity is 11.2 mV per kPa, ensuring responsive sensor output.
It features a surface mount PG-DSOF-8 package with 8 pins for PCB integration.
Yes, it is RoHS compliant and meets AEC automotive standards.
The maximum output voltage is 4.65V, while the minimum output voltage is 350mV.
This sensor is suitable for automotive applications, industrial monitoring, HVAC systems, and engine control units (ECU).
The sensor has a length of 7 mm and a height of 2.8 mm, making it suitable for space-constrained designs.
The maximum overload pressure is 400 kPa, indicating its robustness for varied pressure conditions.
It is classified as an absolute pressure sensor, designed for accurate pressure sensing applications.
